Mobile Tracked Trommel

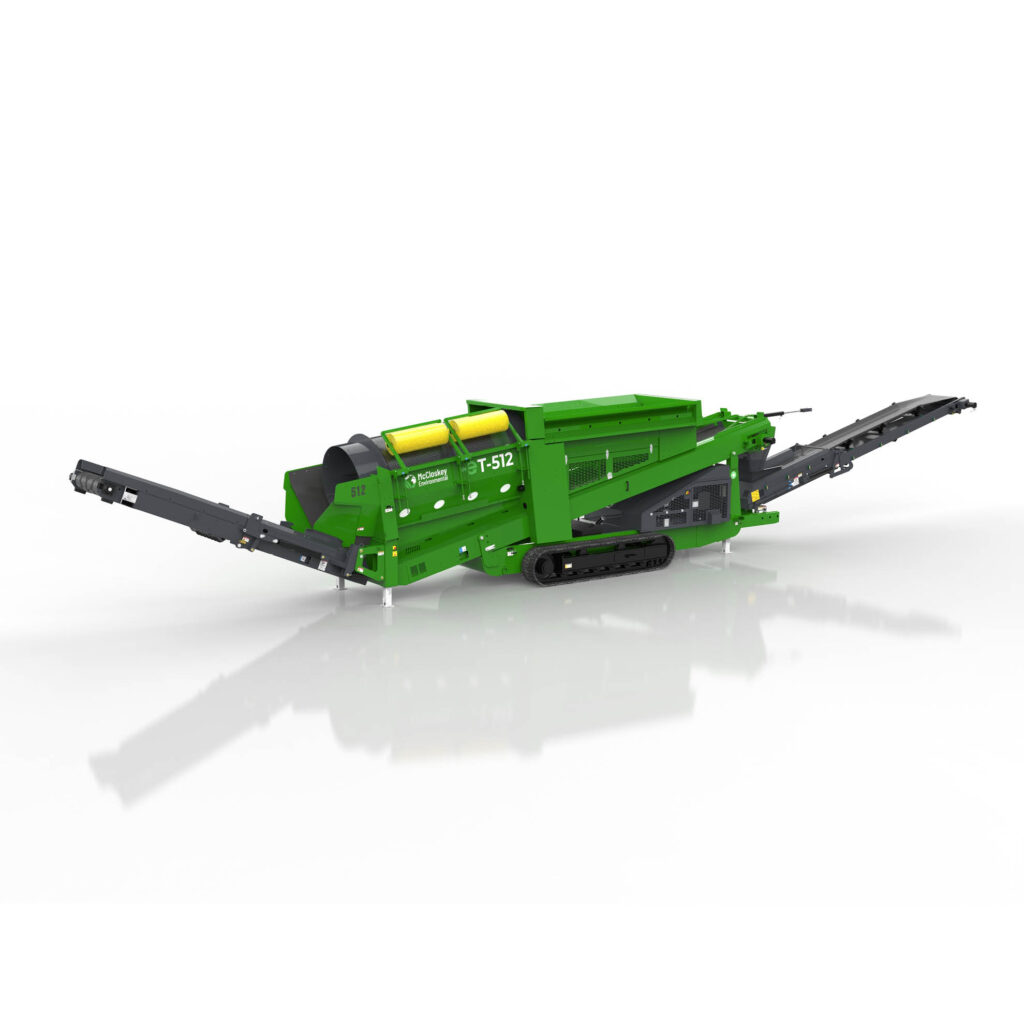

McCloskey Environmental ET-512RT Trommel
Drum Size
1520 x 4880 mm
Engine Power
55kW
Radial Conveyor
3900 mm Stockpile Height
The McCloskey Environmental ET512RT is a tracked trommel screen designed for versatility and efficiency. With a 1520 x 4880 mm drum, 74 hp engine, and a radial conveyor reaching 3900 mm stockpile height, it delivers consistent screening performance across soil, waste, and recycling applications.
Tracked Trommel Screen for Soil, Waste & Recycling
The McCloskey Environmental ET512RT combines high production, strength, and portability in a compact tracked trommel. Its heavy-duty 1520 x 4880 mm drum provides reliable screening for soil, compost, waste, and aggregates. Powered by a 74 hp diesel engine, it offers fast setup and stable tracked mobility on site. An integrated hydraulic radial conveyor delivers a stockpile height of 3900 mm, supported by folding oversize conveyors for efficient material flow. With a 5.25 m³ hopper and fines conveyor, the ET512RT ensures productive, reliable operation in demanding conditions.
McCloskey Environmental ET-512RT Trommel Specifications
| Drum Size | 1520 x 4880 mm |
|---|---|
| Engine Power | 74 hp |
| Transport Length | 14,060 mm |
| Transport Width | 2,590 mm |
| Transport Height | 3,530 mm |
| Working Length | 21,600 mm |
| Working Height | 4,100 mm |
| Weight | 18,150 kg |
| Hopper Capacity | 5.25m³ (7yd³) |
| Radial Conveyor | 3900 mm |
| Oversize Conveyor | Hydraulic folding |
| Tracked Mobility | 400 mm wide tracks for stability |
Warranty: MIMICO offers warranty on all material processing equipment, with dynamic options to suit your needs. We also have servicing packages to keep your plants running smoothly. Get in touch with our sales support team to find the right solution for you.
Fast Setup
Ready for operation in just 10 minutes
High-Capacity Screening
Processes large volumes with a 5′ x 16′ drum
Radial Stockpiling
3.9m stockpile height for increased efficiency
Adjustable Brushes
Ground-level brushes keep screens clean
Large Hopper
5.25m³ capacity with optional extensions
Tracked Stability
500mm wide tracks for maximum maneuverability
