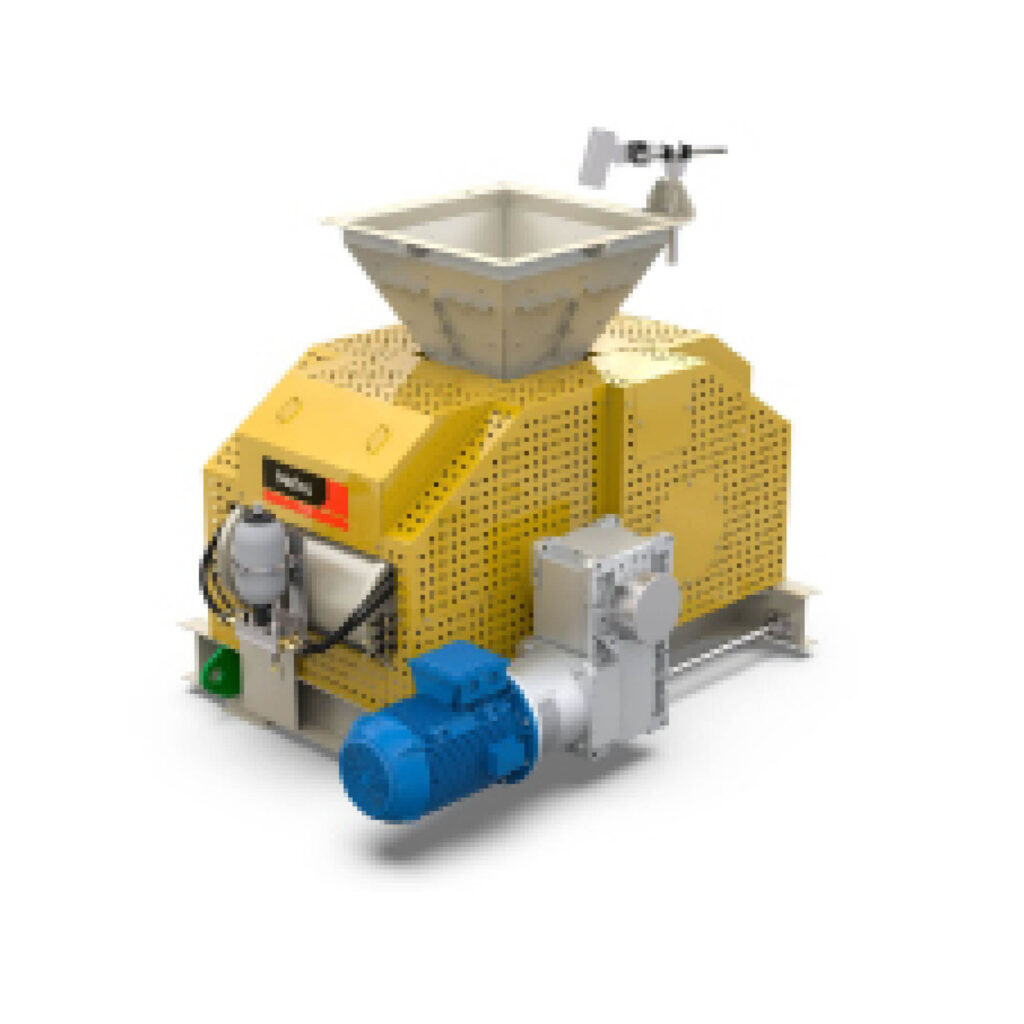

High-Pressure Grinding Roll

HRC™ 8

Max Capacity

Up to 90 TPH

Roll Size

800 x 500mm

Energy Savings

Up to 50%
The High-Pressure Grinding Roll is designed for manufactured sand and aggregate production, delivering superior particle shaping with reduced energy consumption.

High-Efficiency Grinding Roll for Sand Production

The High-Pressure Grinding Roll (HPGR) uses inter-particle comminution to efficiently reduce material size with minimal energy consumption. The adjustable hydraulic cylinders and variable-speed rollers optimise the crushing process while reducing circulating loads. Ideal for manufactured sand, quarry waste reprocessing, and difficult applications, it ensures high-quality output with lower operating costs.

HRC™ 8 Specifications

Max CapacityUp to 90 TPH
Roll Size800 x 500mm
Installed Power2 x 75kW
Max Feed Size32mm
Max Pressure2.5 N/mm²
Operating Speed30.2 RPM
Transport Length2.8m
Transport Width3.9m
Transport Height1.7m
Energy SavingsUp to 50% compared to VSI
Crushing TechnologyInter-particle comminution
Maintenance FeaturesQuick roll change & split shaft design

Warranty: MIMICO offers warranty on all material processing equipment, with dynamic options to suit your needs. We also have servicing packages to keep your plants running smoothly. Get in touch with our sales support team to find the right solution for you.

Energy Efficient

Consumes up to 50% less energy than VSI crushers

Optimised Reduction

Variable pressure control for precise shaping

Minimal Wear

Long-lasting roll surfaces reduce downtime

Safe Maintenance

Quick roll replacement with split shaft design

Versatile Applications

Ideal for manufactured sand, quarry waste & aggregates

Automated Control

Metso IC™ system optimises performance & safety
