High Energy Screener

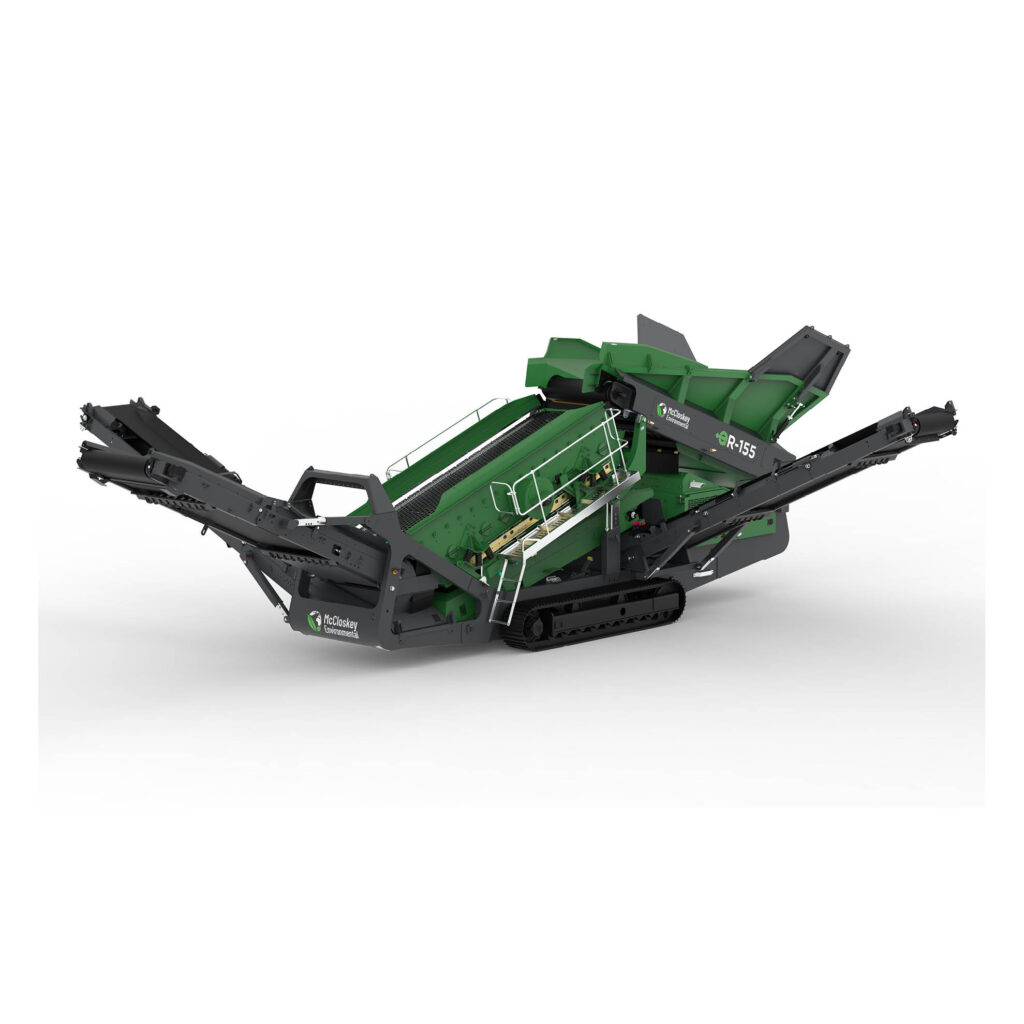

McCloskey Environmental ER-155 Screener
Screenbox Size
5′ x 16′ (155 ft²)
Engine Power
130 HP (98 kW)
Setup Time
10 minutes
The High Energy Screener is built for heavy-duty material processing, offering fast setup, high capacity, and excellent mobility for quarrying, recycling, and aggregate applications.
Heavy-Duty Screener for High Capacity Processing
The High Energy Screener is designed for tough screening applications with a 5′ x 16′ screenbox, high-energy two-bearing setup, and Flex-Flow screening technology. Its extended hopper and tail conveyor improve loading flexibility, while its fast 10-minute setup time increases efficiency. Equipped with hydraulic folding conveyors and track mobility, this unit ensures high throughput and easy operation for quarrying, recycling, and material processing sites.
McCloskey Environmental ER-155 Screener Specifications
| Screenbox Size | 5' x 16' (155 ft²) |
|---|---|
| Engine Power | 130 HP (98 kW) Diesel |
| Transport Height | 3.53m (11’ 7”) |
| Transport Length | 15.30m (50’ 2”) |
| Transport Width | 3.54m (9’ 8”) |
| Weight | 36,100 kg (79,600 lbs) |
| Stockpile Height - Side Fines | 3.96m (13’) |
| Stockpile Height - Side Mid | 3.60m (11’ 10”) |
| Setup Time | 10 minutes |
| Mobility | Track Mounted |
| Over Centre Valves | Yes - Reduces Setup Time |
Warranty: MIMICO offers warranty on all material processing equipment, with dynamic options to suit your needs. We also have servicing packages to keep your plants running smoothly. Get in touch with our sales support team to find the right solution for you.
Fast Setup
Ready for operation in just 10 minutes
Extended Hopper
Larger target for loading flexibility
Flex-Flow Technology
Prevents build-up and clogging
Hydraulic Folding
Stockpiling conveyors for easy transport
Track Mobility
Easily moves around job sites
High Screening Capacity
155 ft² screening area for maximum throughput
