Nordtrack S4.7 Mobile Screen | MIMICO NZ

Mobile Screen

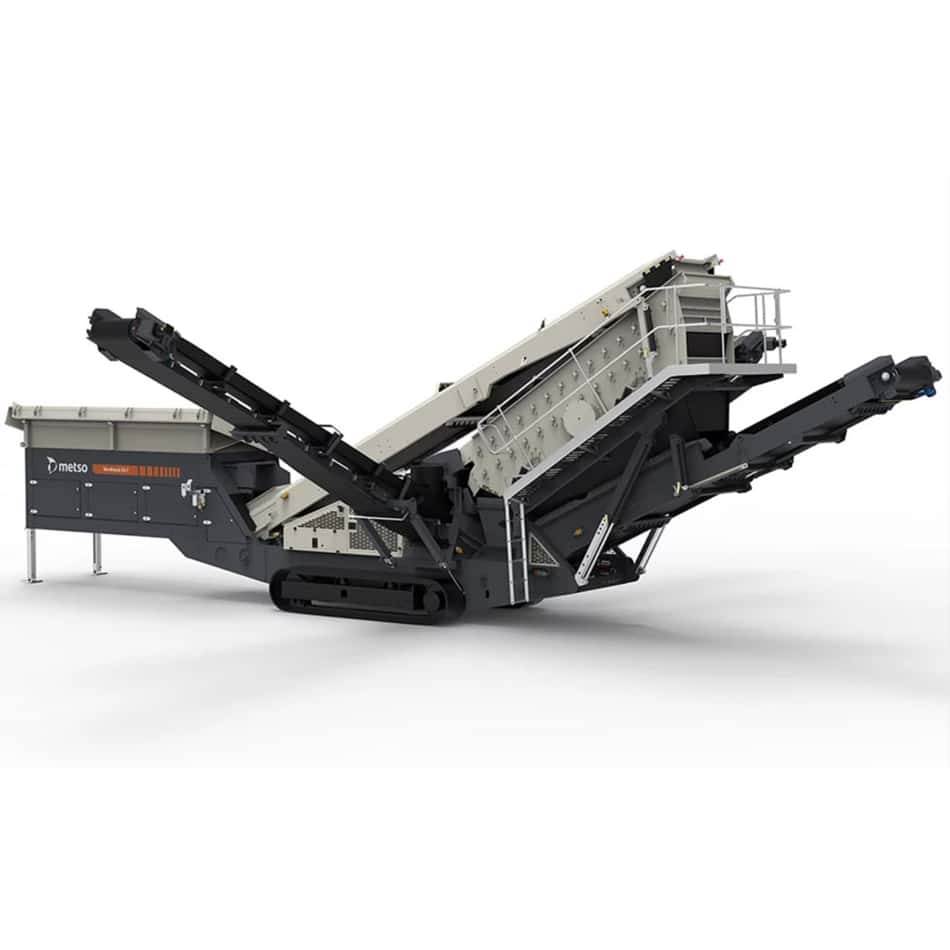

Nordtrack S4.7 Mobile Screen

Top Deck Size

4,270 x 1,524 mm

Middle Deck Size

4,270 x 1,524 mm

Screening Capacity

Up to 450 tph
The Nordtrack S4.7 mobile screen is built for efficient high-capacity screening across aggregates, sand, coal, and agricultural materials. Ideal for contractors needing fast setup and reliable performance.
View Brochure
Call Sales Support

Three-Deck Mobile Screening

The Nordtrack S4.7 mobile screen features a three-deck configuration with a 4,270mm x 1,524mm top and middle deck, and a 3,660mm x 1,524mm bottom deck. It handles up to 450 tph, making it ideal for aggregates, sand, and coal screening. With a compact, transport-friendly design, lifting conveyors, and remote control operation, this unit is built for contractors and rental fleets.

Nordtrack S4.7 Mobile Screen Specifications

Top Deck Size4,270 x 1,524 mm
Middle Deck Size4,270 x 1,524 mm
Bottom Deck Size3,660 x 1,524 mm
Stroke8 mm
Hopper Capacity10.0 m³
Engine OptionsCAT C4.4 / Deutz TCD 3.6
Weight32.0 t
Width3.3 m
Height3.5 m
Length16.6 m
Fines Conveyor Width1,200 mm
Mid-Fraction Conveyor Width650 mm

Warranty: MIMICO offers warranty on all material processing equipment, with dynamic options to suit your needs. We also have servicing packages to keep your plants running smoothly. Get in touch with our sales support team to find the right solution for you.

Download Spec Sheet

Three-Deck Design

Maximises screening efficiency for multiple materials

High Capacity

Handles up to 450 tph screening

Versatile Application

Works with aggregates, sand, coal, and more

Easy Maintenance

Lifting conveyors for mesh change access

Fuel Efficiency

Dual Power upgrade option available

Safety Features

Remote control for feeder speed and start/stop

Avoca Group

Responsive Support for Screening Operations

Avoca Group relies on MIMICO for responsive breakdown support and technical problem-solving, complementing their in-house maintenance of mobile screening plants.
Read More
