Dewatering Screen

Superior Dewatering Screen

Moisture Content

As low as 8%

Screen Size

Up to 7′ x 12′

Capacity

Up to 400 TPH

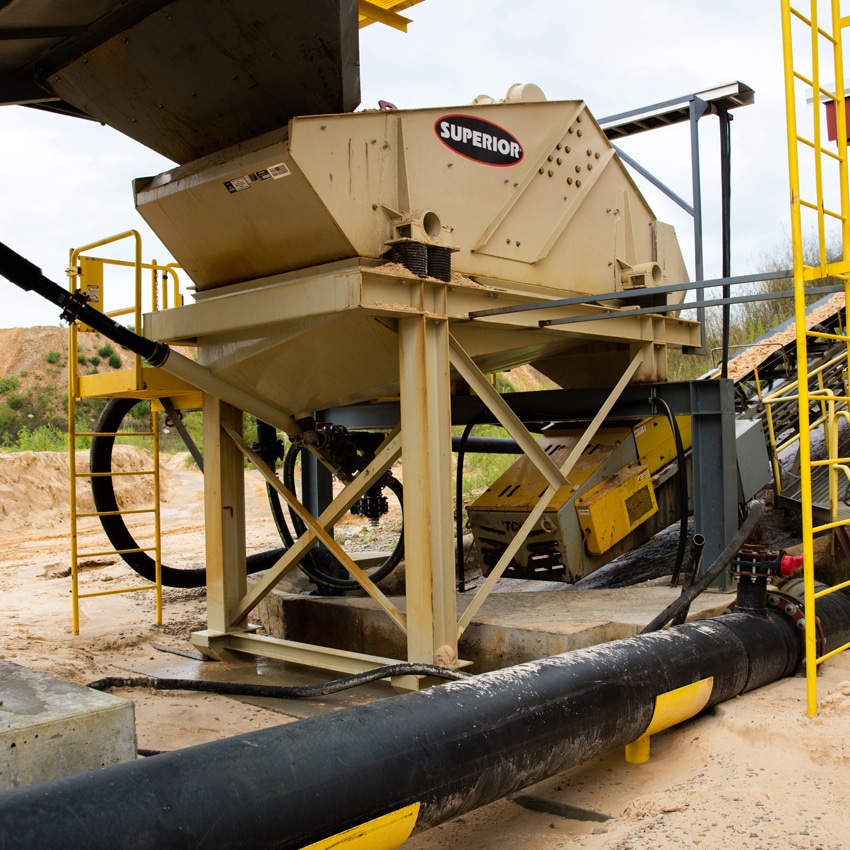

The Dewatering Screen removes excess moisture for faster material handling and stockpiling. With high-frequency vibration, it reduces moisture content to as low as 8%, improving efficiency for sand, gravel, and aggregate processing.

High-Efficiency Dewatering for Dry Material

The Dewatering Screen is designed to reduce moisture levels in processed materials, allowing for quicker handling and transport. With screen sizes up to 7′ x 12′ and a maximum capacity of 400 TPH, it efficiently separates water from aggregates, fines, and sand. Its high-frequency vibration and adjustable discharge dam ensure effective moisture removal, making it ideal for quarrying, mining, and construction applications.

Superior Dewatering Screen Specifications

Moisture Content	As low as 8%
Screen Size	Up to 7' x 12'
Capacity	Up to 400 TPH
Screening Area	Up to 137 ft²
Transport Width	2.5m (8'2")
Transport Height	3.9m (13'0")
Transport Length	13.1m (43'0")
Total Weight	Up to 11,000 kg (24,250 lbs)
Screen Motor	Up to 17.4 HP (13 kW)
Fines Recovery Jet	Yes
Adjustable Deck	0 to 2°
Urethane Sidewalls	Yes

Warranty: MIMICO offers warranty on all material processing equipment, with dynamic options to suit your needs. We also have servicing packages to keep your plants running smoothly. Get in touch with our sales support team to find the right solution for you.

High-Frequency Vibration

Reduces moisture for faster material handling

Adjustable Discharge

Control material flow with an adjustable dam

Large Screening Area

Up to 137 ft² for maximum dewatering

Efficient Water Removal

Integrated fines recovery jet reduces waste

Heavy-Duty Build

Built for durability in mining and quarry applications

Portable Option

Available as a road-portable package

Our team is working on new customer success stories! Check back soon for real-world insights on this product.
