Nordtrack S3.9 Mobile Screen | MIMICO NZ

Mobile Screen

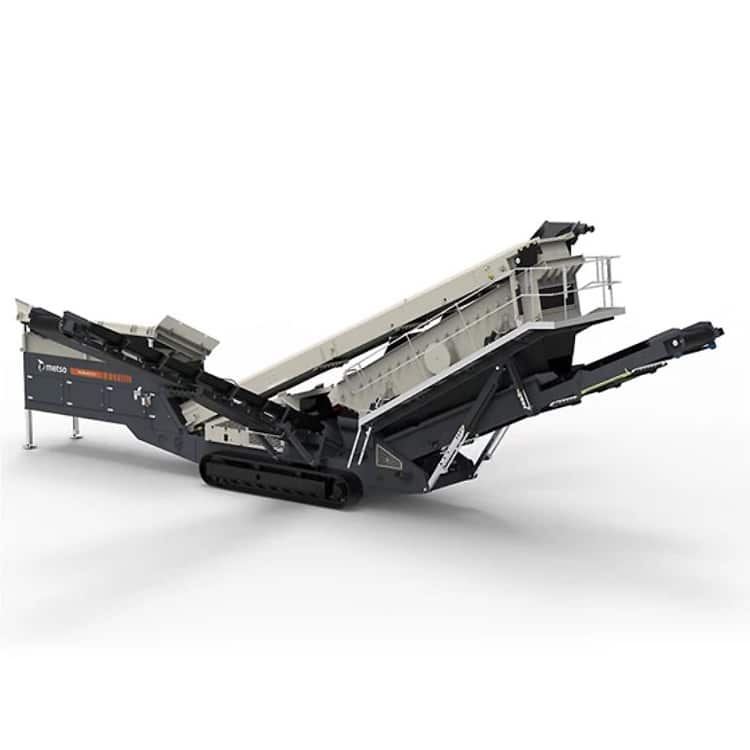

Nordtrack S3.9 Mobile Screen

Top Deck Size

6,100 x 1,524 mm

Bottom Deck Size

5,490 x 1,524 mm

Screening Capacity

Up to 600 tph
The Nordtrack S3.9 mobile screen is designed for high-capacity screening across aggregates, sand, coal, and agricultural materials. Ideal for contractors needing quick setup and mobility between sites.
View Brochure
Call Sales Support

High-Capacity Mobile Screening

The Nordtrack S3.9 mobile screen delivers efficient two-deck screening with a large 6,100mm x 1,524mm top deck. It handles up to 600 tph, making it suitable for aggregates, sand, coal, and other materials. Featuring a compact, transport-friendly design with lifting conveyors for easy maintenance, this unit is ideal for rental fleets and contractors.

Nordtrack S3.9 Mobile Screen Specifications

Top Deck Size6,100 x 1,524 mm
Bottom Deck Size5,490 x 1,524 mm
Stroke8 mm
Hopper Capacity10.0 m³
Engine OptionsCAT C4.4 / Deutz TCD 3.6
Weight36.4 t
Width3.0 m
Height3.5 m
Length18.5 m
Fines Conveyor Width1,200 mm
Mid-Fraction Conveyor Width800 mm
Oversize Conveyor Width800 mm

Warranty: MIMICO offers warranty on all material processing equipment, with dynamic options to suit your needs. We also have servicing packages to keep your plants running smoothly. Get in touch with our sales support team to find the right solution for you.

Download Spec Sheet

Compact Design

Transport-friendly with quick setup

High Capacity

Handles up to 600 tph screening

Versatile Application

Works with aggregates, sand, coal, and more

Easy Maintenance

Lifting conveyors for mesh change access

Fuel Efficiency

Dual Power upgrade option available

Safety Features

Remote control for feeder speed and start/stop

Avoca Group

Responsive Support for Screening Operations

Avoca Group relies on MIMICO for responsive breakdown support and technical problem-solving, complementing their in-house maintenance of mobile screening plants.
Read More
