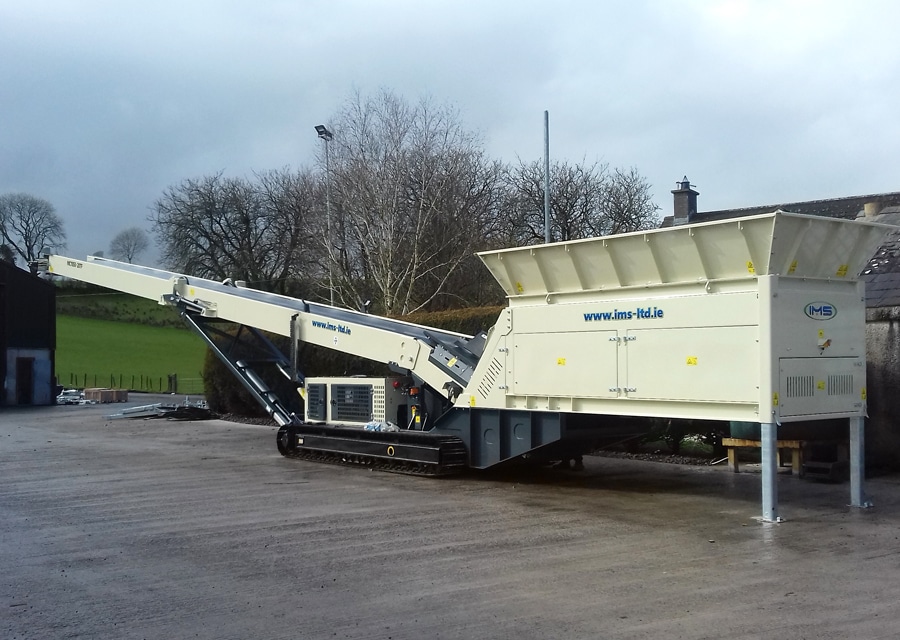

IMS MC1050-20TF Track Feeder/Stacker

IMS offers a Track Feeder/Stacker, developed specifically to suit a wide range of applications and material types. These have been designed to facilitate being directly fed from wheel loaders or excavators together with the ability to take the discharge from crushers, screeners or shredders, ensuring regular and consistent feed.

The MC1050-20TF is the ideal solution for jobs that require high production stockpiling or material transfer.

Request a Quote
Applications

IMS Track Feeder/Stackers are used in a variety of applications including aggregates, sand and gravel, coal, slag, iron ore, wood chip, C+D, bulk materials, and topsoil.

Features
  • Detachable Hopper to allow for container transport – Hopper in 20’ Container, Conveyor in 40’ Container.
  • Extended foldable head section to give additional reach from tracks – 13m from front of tracks to discharge point.
  • Radio Remote Control Tracking.
  • 1050mm (42”) wide Feeder and Main Belt.
  • 127mm (5”) Impact Rollers under Feeder.
  • Mild Steel Replaceable Liner Plates in Hopper as standard.
  • Helmet Door on front of Hopper to regulate flow of material.
  • 8 cubic metre capacity Hopper.
  • Cartridge type Feeder – Can be removed easily for maintenance.
  • User friendly hydraulic inclination (no pins required).
  • Crawler Track Movement.
  • 74 kw Diesel-Hydraulic Drive.
  • 1050mm (42”) wide 3 ply belt in both Feeder and Discharge Conveyor.
  • Hydraulic Folding on Head Section.
  • Hydraulic Raise and Lower.
OPTIONS
  • Remote Control Hydraulic Tipping Grid.
  • Single Deck Vibrating Grid.
  • Caterpillar C3.4B Tier 4 Engine.
  • Hardox 400 Wear Liners In Hopper.
  • Rear Low Loading Hopper.
  • Shredder on discharge from Feeder.
  • Heavy Duty Belt On Discharge Conveyor.
  • Chevron Belt On Discharge Conveyor.
  • Dual Power: Electric & Diesel / Hydraulic Power Unit.
  • PVC Covers.
Specifications
  • Operational Length: 23.5.
  • Operational Height: 9.03m.
  • Loading Height: 3.1m.
  • Hydraulic Tank Capacity: 600l.
  • Diesel Fuel Capacity: 275l.
  • Engine: Caterpillar Liquid Cooled
  • Engine Power: 74kw.
  • Transport Width: 2.314m.
  • Transport Height: 3.10m.
  • Transport Length: 15.5m.
  • Total Weight: 17000kg.
