Single Drum Vibratory Roller
Dynapac CA35D Roller
Operating Weight
12,200 kg
Static Linear Load
35 kg/cm
Compaction Width
2130 mm

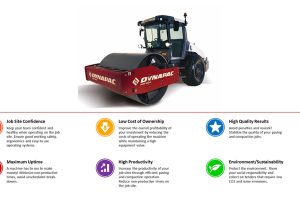

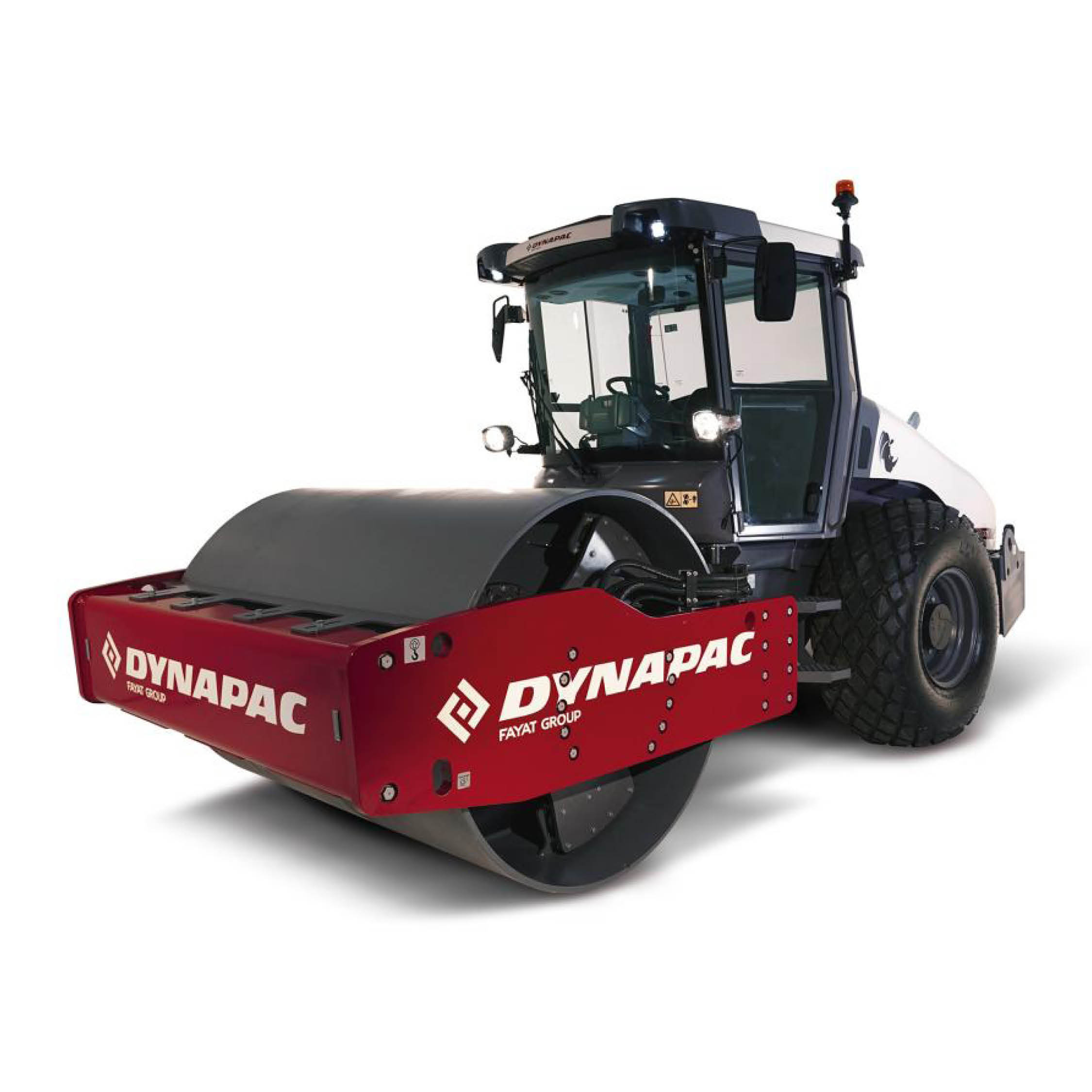

The Dynapac CA35D Rhino is a 12 tonne single drum vibratory roller designed for demanding soil compaction. Featuring the Cummins QSF3.8 engine and hydrostatic drive, it provides strong traction, smooth performance and consistent compaction results across large-scale roading and civil construction projects.
High Compaction Power with Proven Reliability

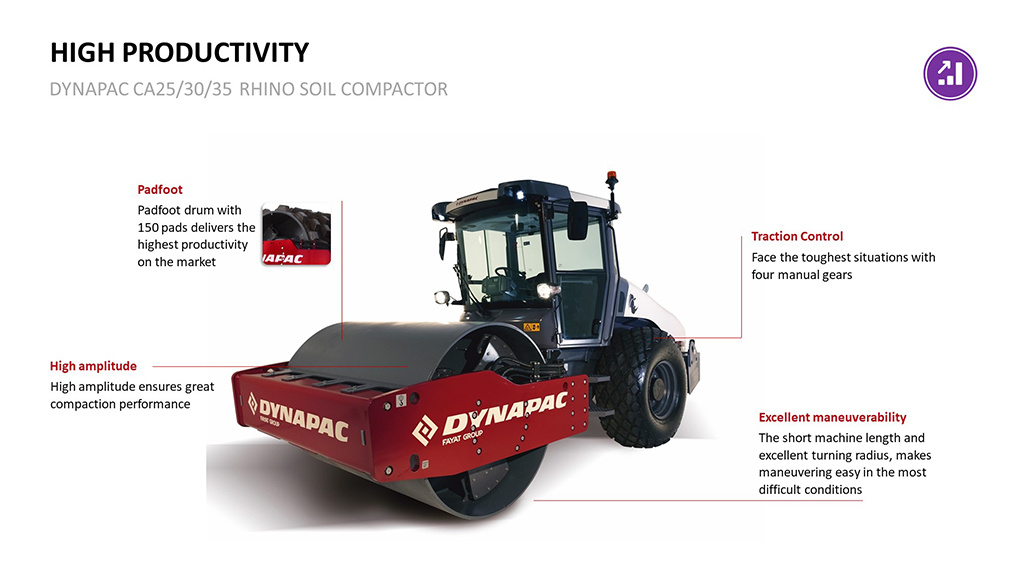

Built for efficiency and reliability, the Dynapac CA35D Rhino combines a 250 kN centrifugal force with dual amplitude vibration to achieve outstanding compaction performance. Powered by a 97 kW Cummins QSF3.8 turbo diesel engine, this model delivers high torque output with excellent fuel efficiency. The hydrostatic drive and vibration system ensure smooth operation and control, while the adjustable operator station and accessible service points enhance comfort and safety. Optional padfoot shell kits and compaction meters are available to suit varied ground conditions and job requirements.
Dynapac CA35D Roller Specifications
| Vibration Frequency | 33 / 33 Hz |
|---|---|
| Vertical Oscillation | ±9° |
| Speed Range | 0–11 km/h |
| Engine | Cummins QSF3.8 (IIIA / T3) |
| Rated Power | 97 kW (130 hp) @ 2500 rpm |
Warranty: 1 year or 1500 Hours Dynaplus Extended Warranty Plans Available.
Heavy Compaction
12.2 tonne operating weight with a 35 kg/cm static linear load for high soil density.
Dual Amplitude
Selectable 1.7 mm and 0.8 mm amplitudes with automatic vibration control for optimal results.
Hydrostatic Drive
Smooth traction and control through fully hydrostatic drive and vibration systems.
Operator Comfort
Vibration-damped platform with adjustable seat and intuitive controls for long working hours.
Easy Maintenance
Lockable hood, hydraulic checkpoints and tool storage for simplified daily servicing.
Custom Options

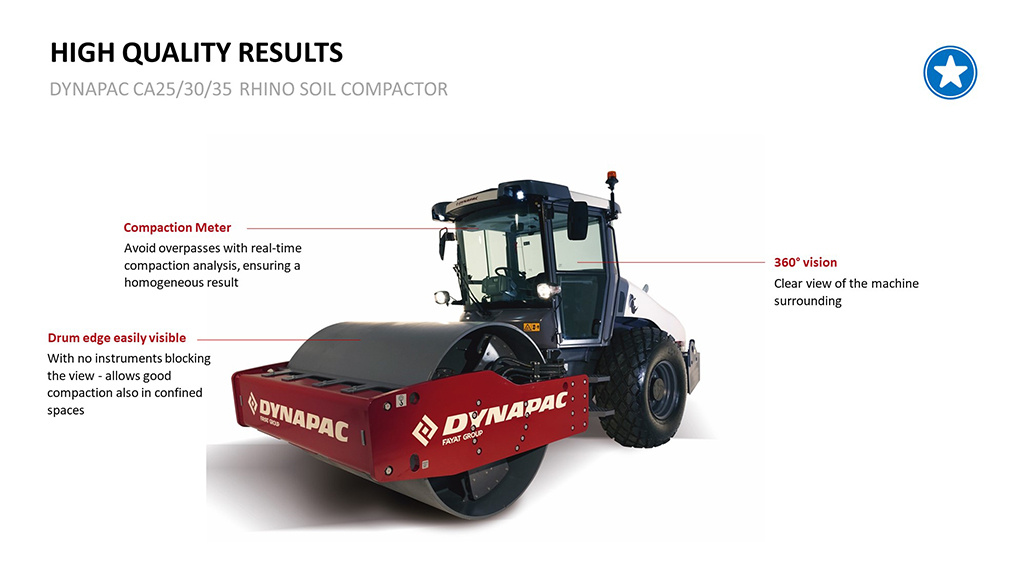

Available with padfoot shell kit, compaction meter and remote monitoring capability.
