Motor Grader

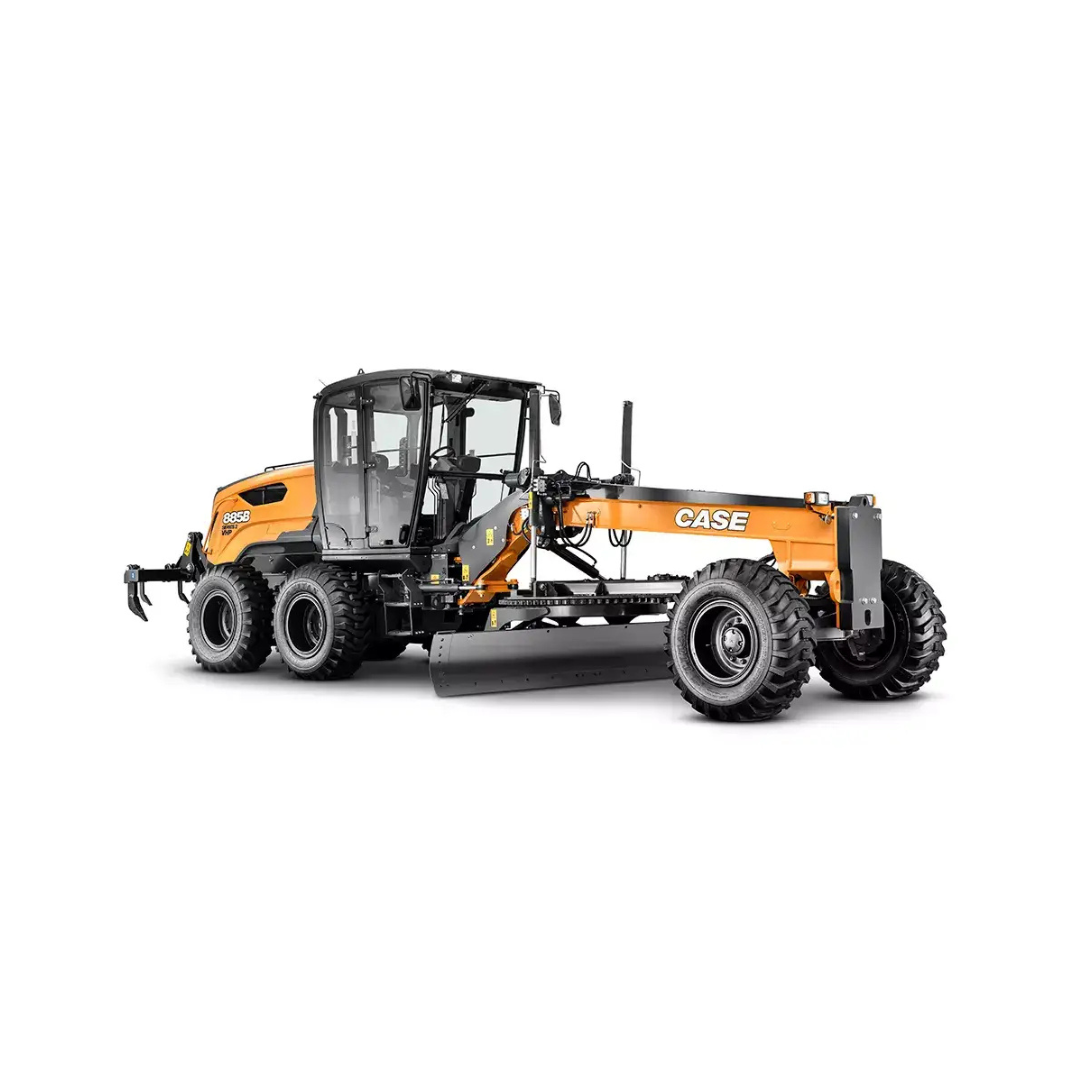

CASE 885B Motor Grader
Maximum Power. Maximum Control.
The CASE 885B motor grader is built for large scale grading, road building and mining work across New Zealand. Its FPT engine delivers up to 234 hp with a dual power curve, giving operators strong, consistent performance across every gear range. A reinforced moldboard with a roller mounted slewing ring gives smooth, precise blade control, while load sensing hydraulics keep operation responsive and fuel efficient. The rear mounted cab improves visibility and balances weight over the rear axle for better traction on tough ground. With a wide 14 foot blade and a heavy duty frame, the 885B is built to handle the largest grading jobs with confidence.
CASE 885B Motor Grader Specifications
| Operating Weight (kg) | 18120 |
|---|---|
| Engine Power (hp) | 234 |
| Blade Width (mm) | 4267 |
| Articulation angle (degrees) | ±25° |
| Turning radius (mm) | 7250 |
| Hydraulic Flow Rate (L/min) | 187 |
| Fuel Tank (L) | 341 |
Warranty: 12 months / 1,500 hours
High-Power Engine with Dual Power Curve
The 885B’s FPT engine delivers up to 234 hp, with a power boost in higher gears for increased productivity. This ensures constant power output for demanding applications such as road building, mining, and heavy-duty earthmoving.
Heavy-Duty Moldboard with Roller-Mounted Slewing Ring
The 885B features a reinforced 14ft moldboard with an encapsulated roller-mounted slewing ring, providing smooth, jolt-free blade rotation. This innovative design eliminates wear, reduces maintenance, and delivers superior blade control on the largest jobs.
Load-Sensing Hydraulics for Unmatched Efficiency
Equipped with a high-flow, variable displacement axial piston pump, the 885B provides precise hydraulic control. Operators experience seamless moldboard adjustments with parallel lifting, improving grading accuracy while minimising fuel consumption.
AWD with Electronic Drive Control
The optional AWD system with Electronic Drive Control Volume (E.D.C.V.) delivers customised front-wheel thrust. This ensures consistent traction on uneven terrain, making the 885B ideal for challenging conditions like wet or loose surfaces.
Rear-Mounted Cab for Enhanced Control
The strategically positioned rear cab improves weight distribution, enhancing traction and overall balance. Operators benefit from a clear view of the moldboard and articulation joint, improving grading precision and reducing fatigue.
Industry-Leading Blade Control System Compatibility
The 885B comes pre-equipped for advanced blade control systems, including GPS, laser, and universal total station technology. This “plug and play” compatibility maximises accuracy and efficiency, making it a future-proof investment for high-performance grading.
Kaingaroa Roading: 40 Years Strong.
Grit, Loyalty and Gear
Kaingaroa Roading Contractors, led by Jan Bolton, has been maintaining New Zealand’s forest roads for nearly four decades. Running a CASE 885B grader, CASE CX145 excavator, and Dynapac roller, Jan and her loyal crew combine experience, resilience, and trusted equipment to keep the industry moving.
