Applications
- Sand and gravel.
- Organic materials screening.
- Aggregate screening.
Features

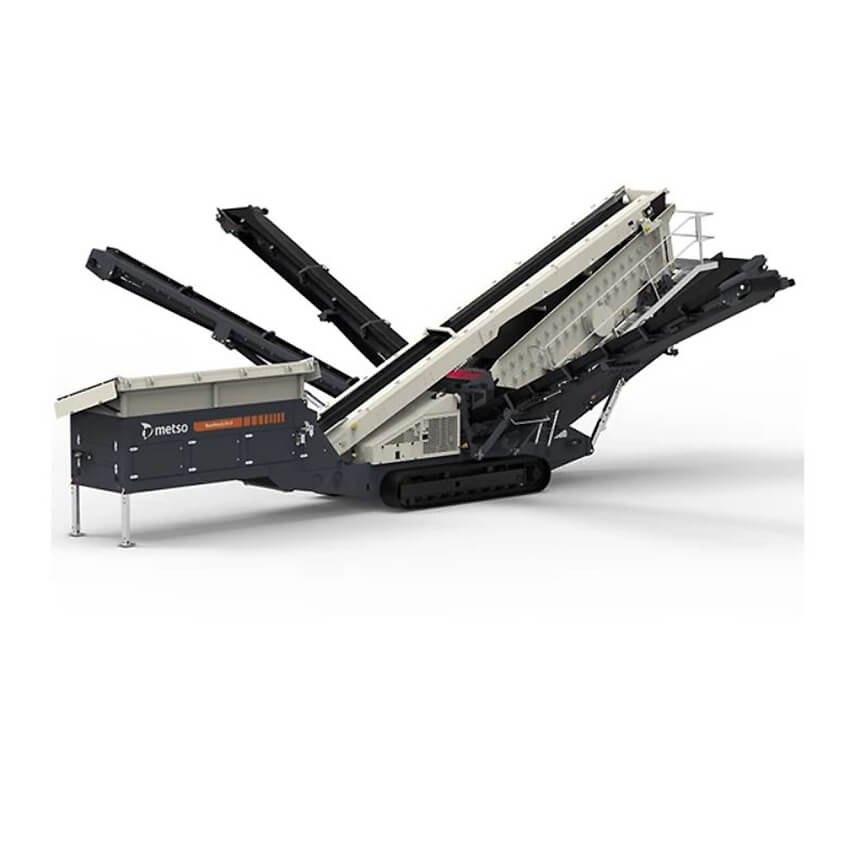

The Nordtrack S4.9 mobile screen gives you high performance screening of sand and gravel, aggregates and organic materials with its three large screening decks.
KEY FEATURES
- Competitive 3-deck screenbox.
- Efficient feeding.
- Efficient dust suppression (option).
- Easy and simple to fold and service.
- Better safety and ergonomics.
- Agile and easy to move.
Specifications
- Screen size: Top deck 6,100 x 1,524 mm (20’ x 5’), middle deck 6,100 x 1,524 mm (20’ x 5’), bottom deck 5,490 x 1,524 mm (18’ x 5’).
- Decks: 3.
- Feed hopper: 4,500 mm wide feed hopper (10,0 m³ / 13,1 yd³).
- Engine: Tier 3 LRC – CAT® C4.4 97 kW (129 hp)/Stage IIIB:CAT® C4.4 CSE 98 kW (132 hp)/Tier 4F / Stage V:CAT® C4.4 98 kW (131 hp).
- Weight: 38,800 kg (85,500 lbs).
- Transport width: 3,300 mm (10′ 8″).
- Transport height: 3,500 mm (11′ 4″).
- Transport length: 18,500 mm (60′ 6″).
- Included in standard configuration: Tipping grid, Three-way platform , Hydraulic lifting conveyor raising, Hydraulic fines conveyor lowering, Remote controller for tracks, Working lights, Hydraulic PTO.
- Options: Water spraying system with pump, Extra remote controller for feeder functions, Two-deck vibrating grid (on request), Bi-Power (on request).
