Mobile Impact Crusher
Lokotrack LT1213S Mobile Crusher
Crusher Type
Impact Crusher
Feed Opening
1,320 x 990 mm
Throughput Capacity
Up to 500 tph

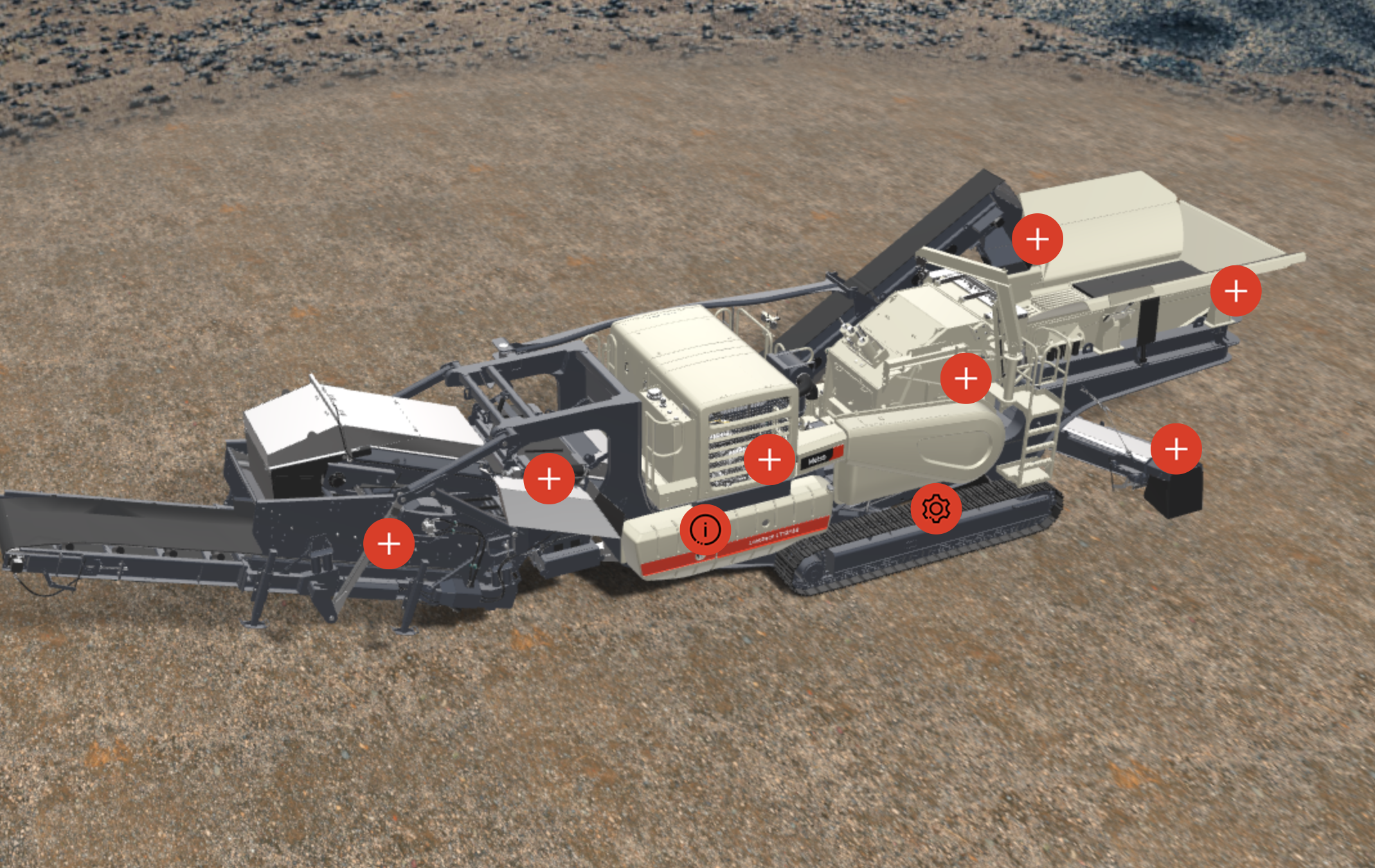

The Metso Lokotrack® LT1213S™ is a mobile horizontal shaft impact (HSI) crusher with a built-in screen for calibrated end products. Designed for soft to medium-hard rock and recycling applications, it offers high reduction ratios, one-pass processing, and seamless mobility between worksites.
High-Performance Impact Crushing with Integrated Screening
The Lokotrack® LT1213S™ combines powerful impact crushing with a large dual-slope screen on a single mobile chassis. The proven Nordberg® NP1213M™ crusher delivers consistent performance in concrete, asphalt, limestone, and recycled materials. An integrated return conveyor enables closed-loop processing, while options like a magnetic separator and wind shifter add further flexibility. The IC process control and Metso Metrics improve uptime, safety, and efficiency. With direct crusher drive, CAT® C9.3B engine, and heavy-duty tracks, the LT1213S™ is built for high-volume, high-precision crushing and screening.
Lokotrack LT1213S Mobile Crusher Specifications
| Crusher Type | Impact Crusher |
|---|---|
| Feed Opening | 1320 x 990 mm |
| Throughput Capacity | Up to 500 tph |
| Hopper Capacity | 9 m³ |
| Engine Options | CAT C9.3B, 224 kW |
| Weight | 52,300 kg |
| Width | 3.2 m |
| Height | 3.63 m |
| Length | 19.4 m |
| Main Conveyor Width | 1,200 mm |
| Side Conveyor Width | 650 mm |
Warranty: MIMICO offers warranty on all material processing equipment, with dynamic options to suit your needs. We also have servicing packages to keep your plants running smoothly. Get in touch with our sales support team to find the right solution for you.
Integrated Screen and Crusher
One-deck dual-slope screen with return conveyor for single-pass output
Proven NP1213M™ Impact Crusher
Adjustable settings and multiple blowbar options
Fuel-Efficient Engine
CAT® C9.3B direct-drive with optimised hydraulics
Flexible Material Handling
Side conveyor discharges left or right; optional wind shifter and magnet
Service Access & Safety
Open-frame design, IC remote app, and additional platform options
One-Unit Transport
Return conveyor and screen fold for travel
