Applications

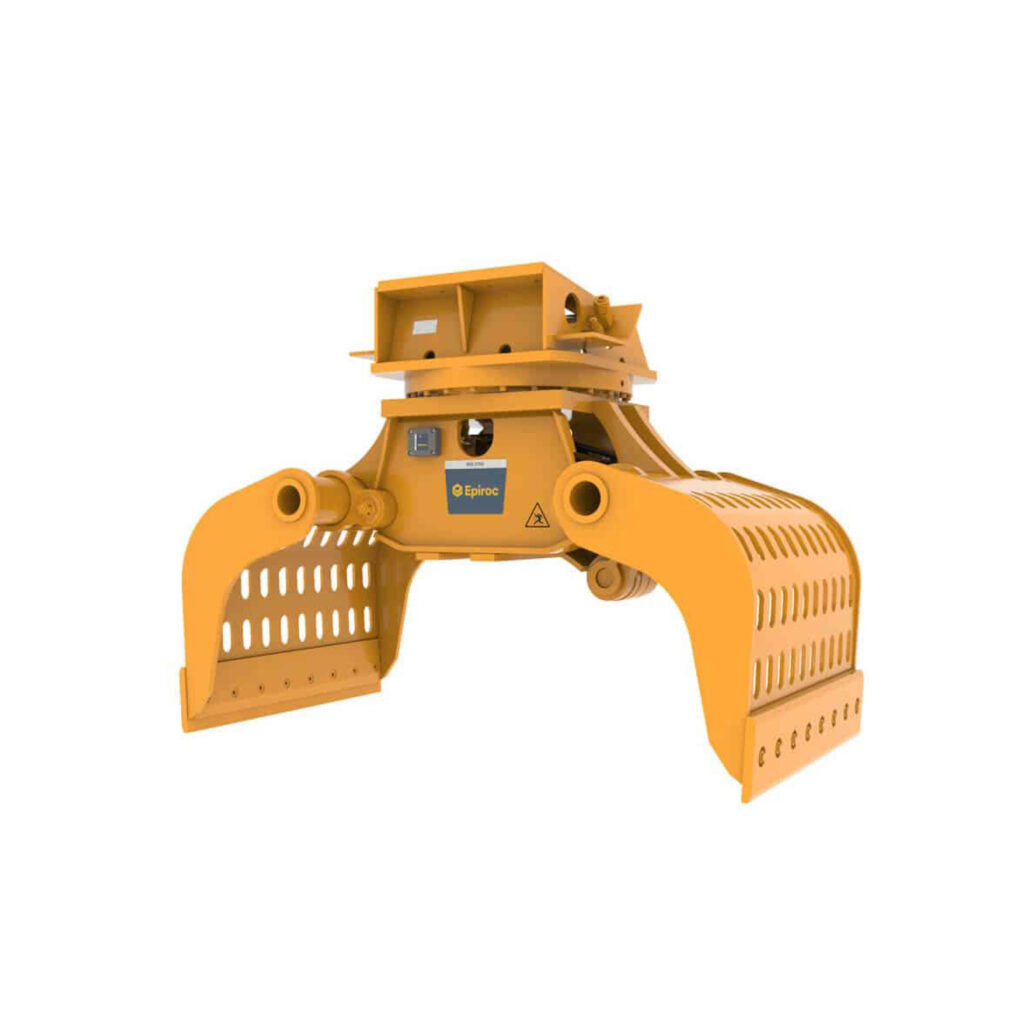

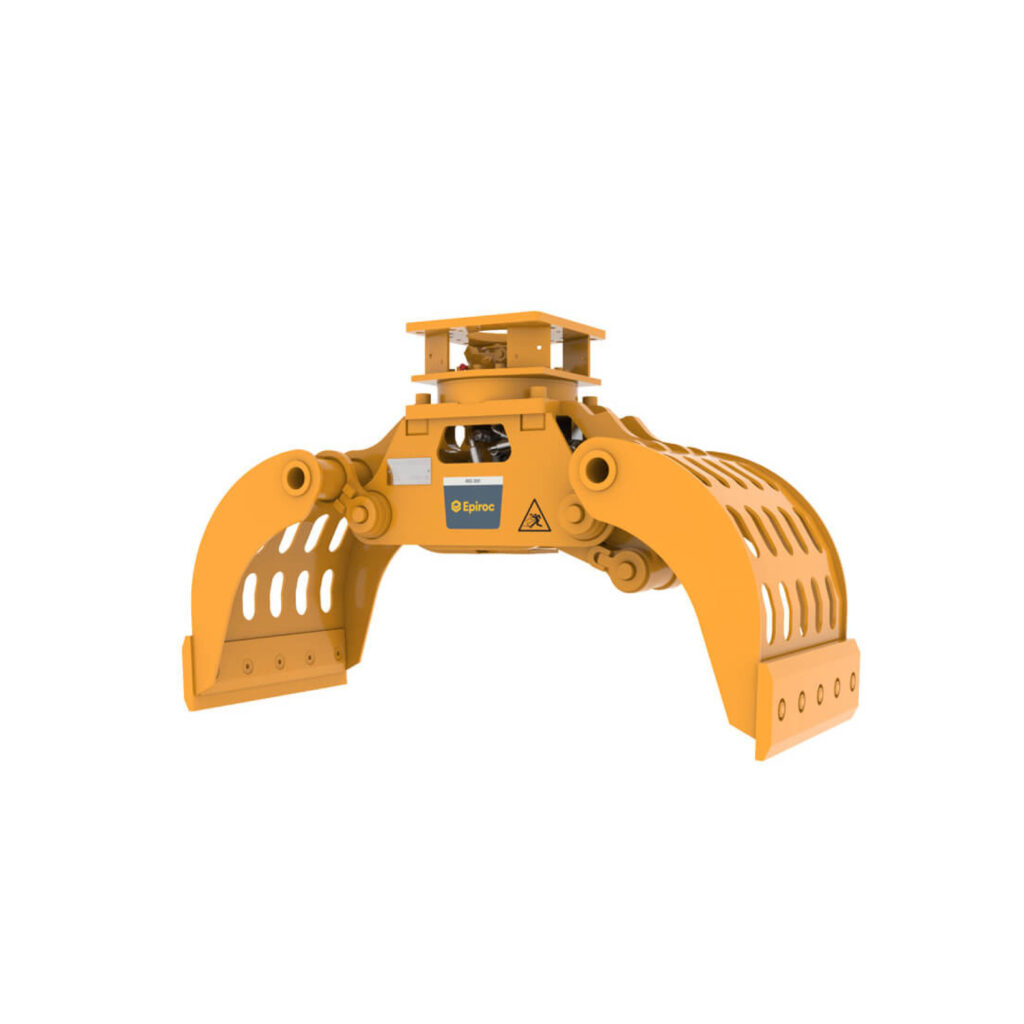

Epiroc’s Multi Grapples are ideal excavator attachments for loading and sorting various materials as well as demolishing wooden and masonry structures.
Features
- 360° endless hydraulic rotation allows optimal positioning and precise handing.
- Integrated mechanical stop to reduce load on cylinders.
- Solid perforated shells provide excellent visibility during operations.
- Cutting blades are both replaceable and reversible.
- Possible to switch from rotation to non-rotation or converse.
Specifications
- Carrier weight class: 45-100 t.
- Service weight (rotation): 5,300 kg.
- Product weight (rotation): 5,000 kg.
- Jaw opening, max: 3,000 mm.
- Grapple width: 1,500 mm.
- Max. closing force: 13 t.
- Loading volume: 1.6 m³.
- Oil flow: 280-300 l/min.
- Operating pressure: 350 bar.
- Oil flow, rotation: 50-60 l/min.
- Max operating pressure, rotation: 210 bar.
