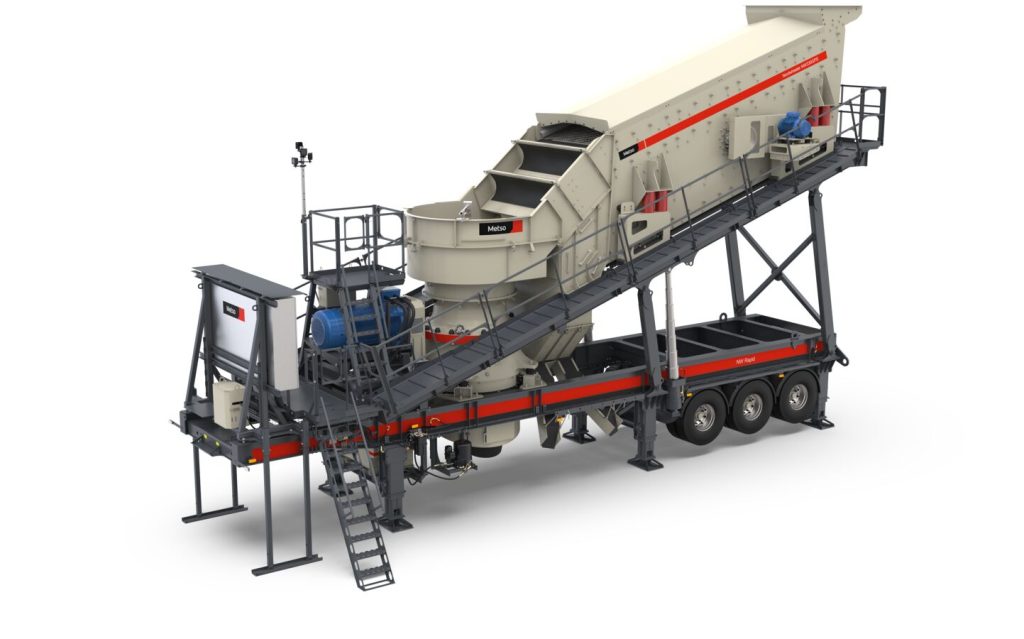

Metso Nordwheeler NW330GP Mobile Cone Crusher MIMICO NZ - Clearcut (2)

Cone Crusher

Nordwheeler NW330GP Mobile Cone Crusher

Crusher Unit

Nordberg® GP330

Motor Power

315 kW

Transport Weight

35,718 kg
High-output mobile cone crusher with Nordberg® GP330 and no screen. Ideal for integration into high-capacity crushing lines.
View Brochure
Call Sales Support

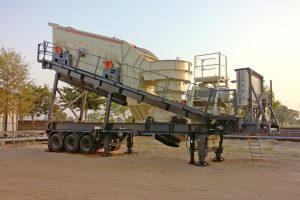

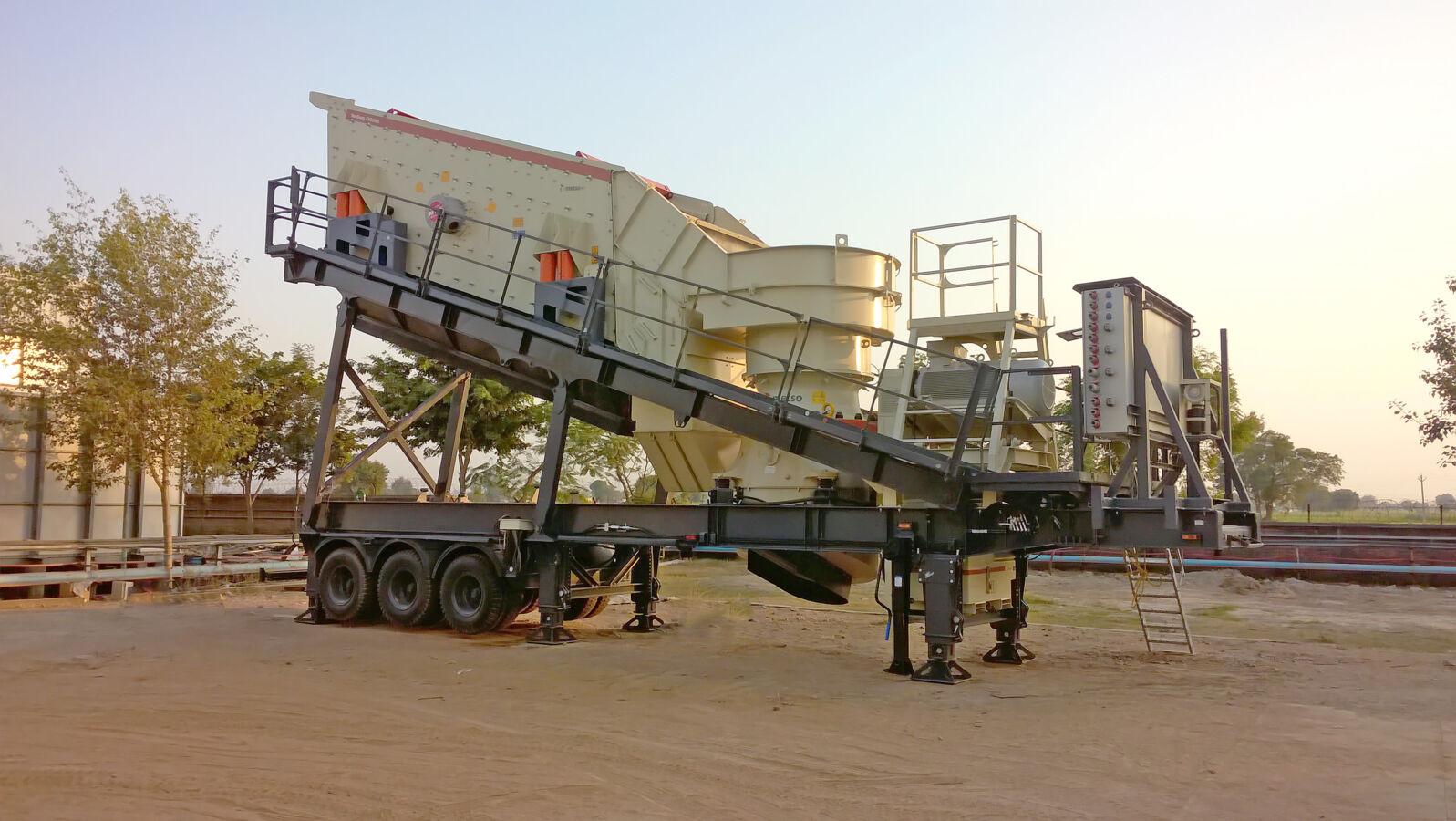

Metso Nordwheeler NW330GP Cone Crusher MIMICO NZ (7)

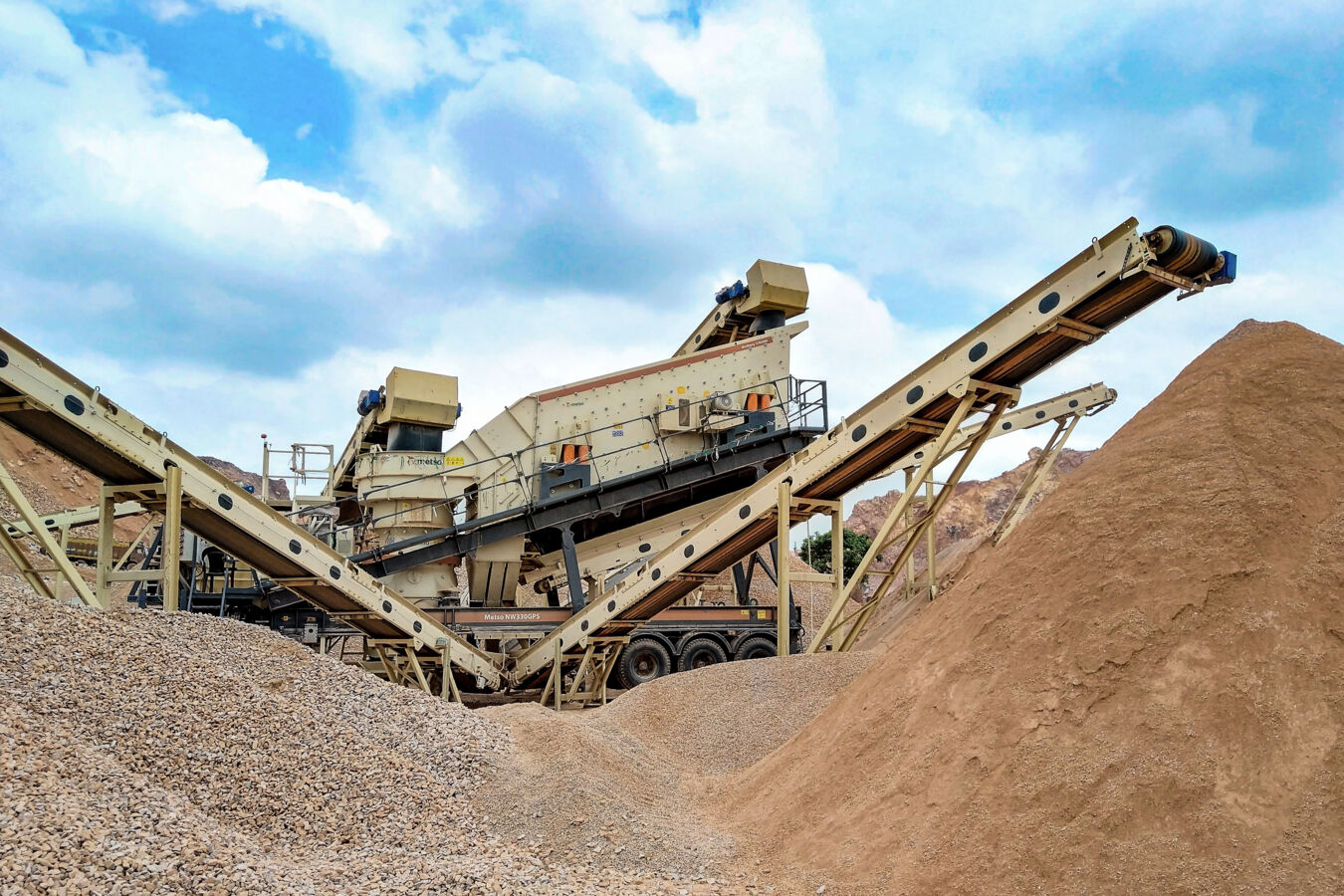

Metso Nordwheeler NW330GP Cone Crusher MIMICO NZ (6)

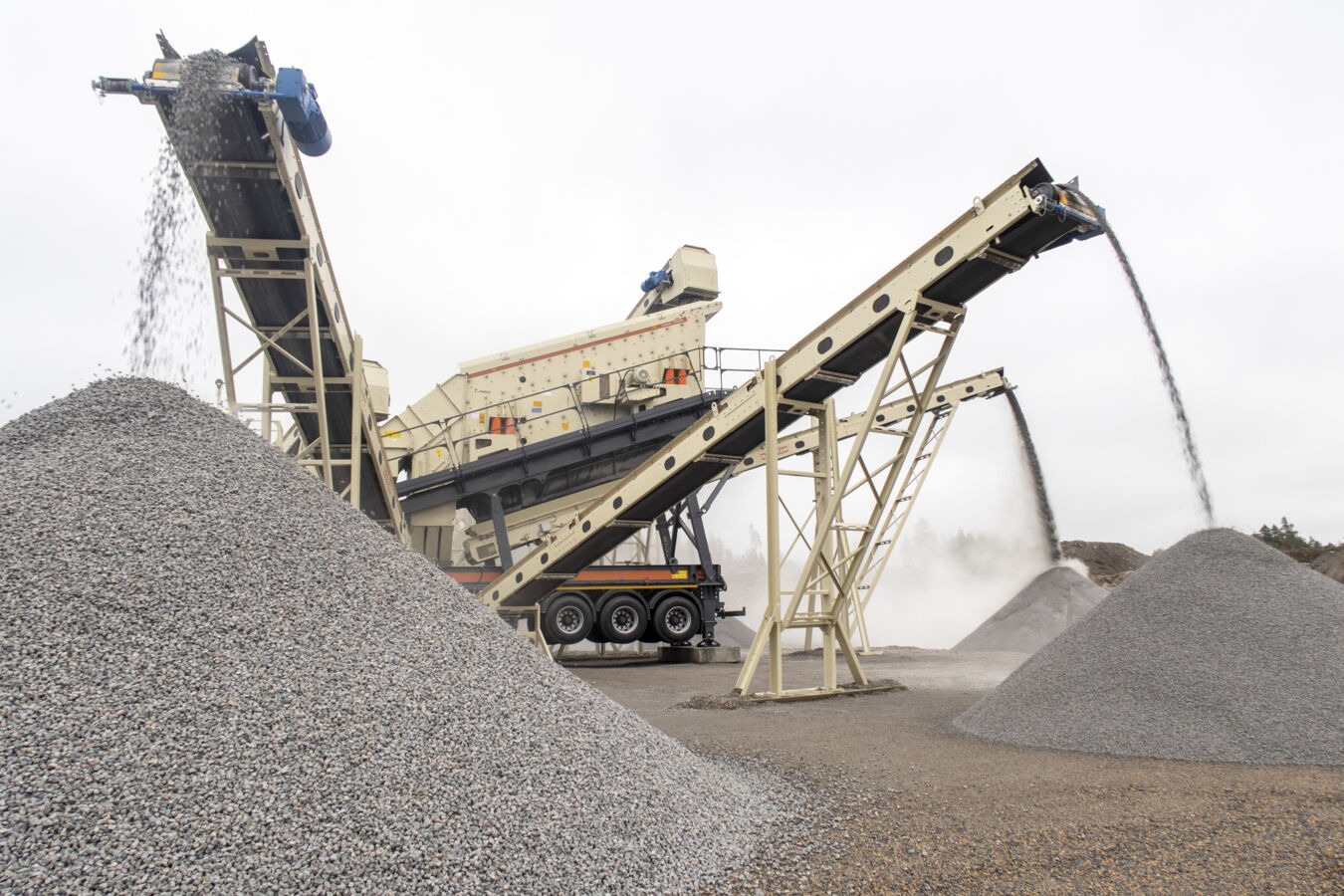

Metso Nordwheeler NW330GP Cone Crusher MIMICO NZ (5)

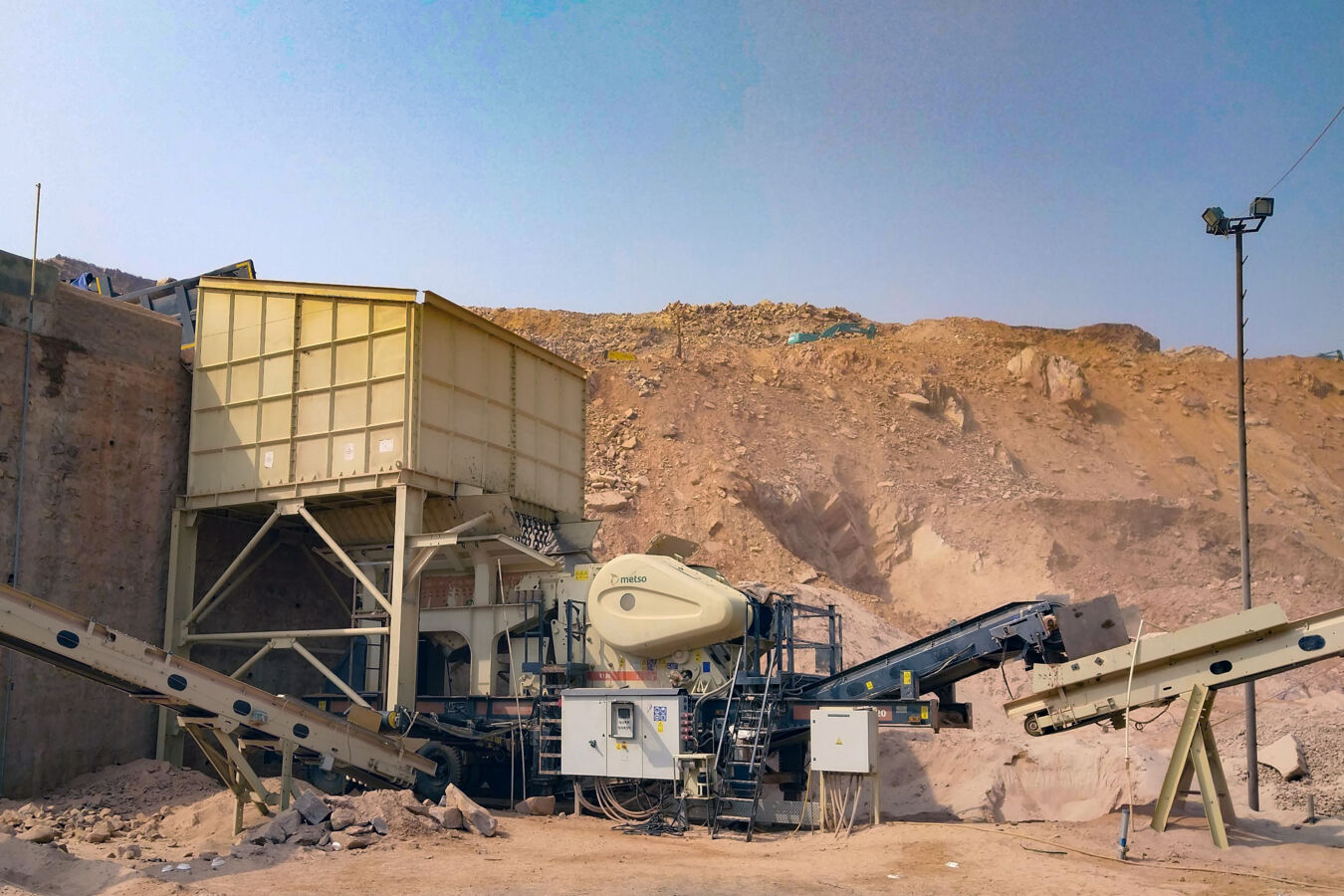

Metso Nordwheeler NW330GP Cone Crusher MIMICO NZ (3)

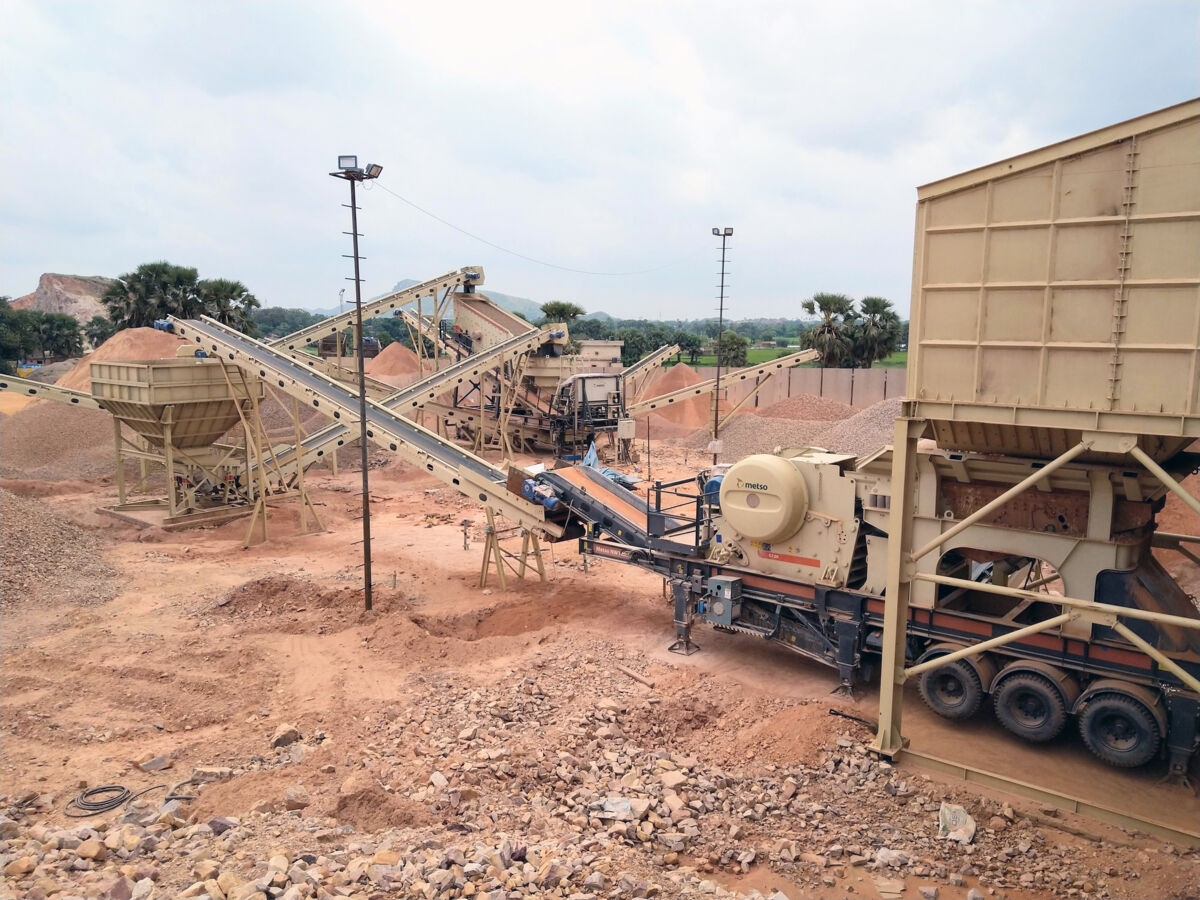

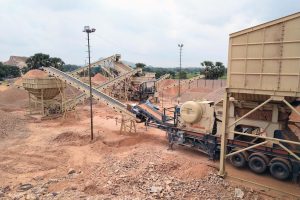

Metso Nordwheeler NW330GP Cone Crusher MIMICO NZ (2)

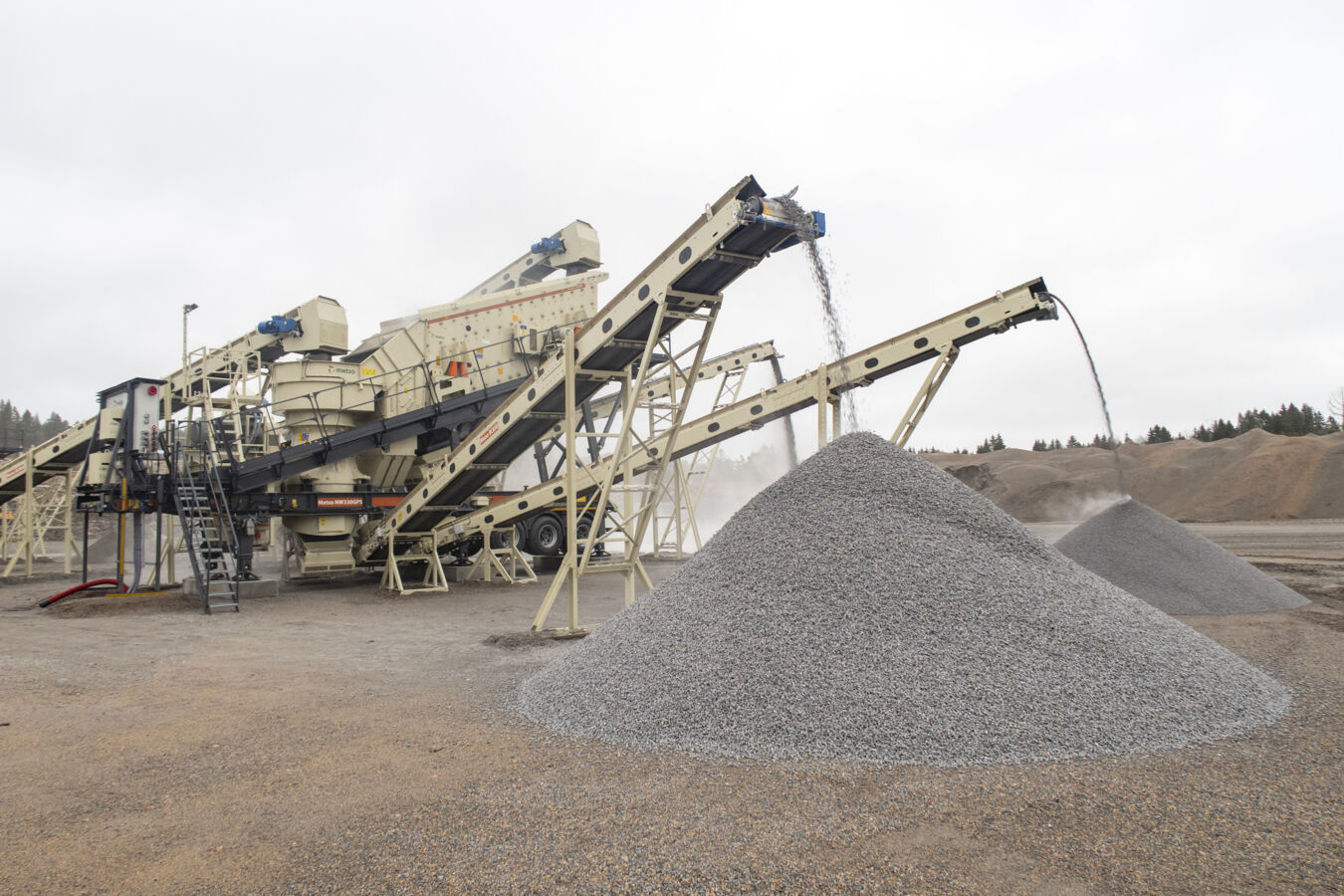

Metso Nordwheeler NW330GP Cone Crusher MIMICO NZ (4)

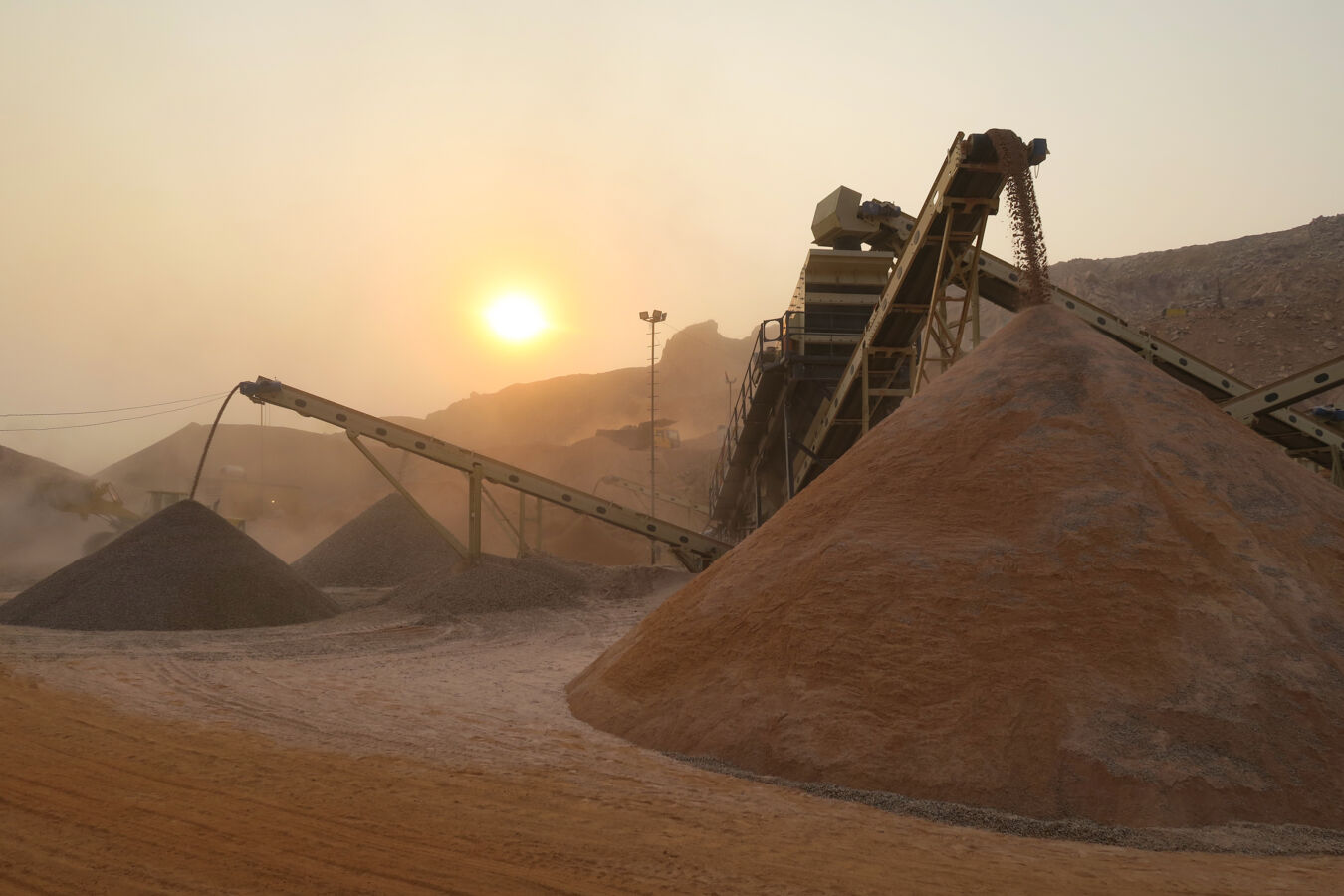

Metso Nordwheeler NW330GP Cone Crusher MIMICO NZ (1)

36T Cone Unit with GP330 Crusher, No Screen

The NW330GP is a high-output mobile cone crusher fitted with the Nordberg® GP330 cone unit. Without a screen, it’s optimised for use in secondary/tertiary stages of large crushing circuits or as part of modular configurations.

Nordwheeler NW330GP Mobile Cone Crusher Specifications

Crusher ModelNordberg GP330
Max Feed Size (mm)225
CSS Range (mm)8–35
Motor Power (kW)315
Transport Length (mm)11592
Transport Width (mm)2530
Transport Height (mm)3990
Transport Weight (kg)35718
Bogie Weight (kg)19947
King Pin Weight (kg)15771

Warranty: MIMICO offers warranty on all material processing equipment, with dynamic options to suit your needs. We also have servicing packages to keep your plants running smoothly. Get in touch with our sales support team to find the right solution for you.

Download Spec Sheet

Crusher Type

GP330 cone for secondary and tertiary crushing

Drive Power

315 kW electric drive

Transport Setup

2-axle bogie with standard dimensions

Flexibility

Screenless layout for integration into larger flows

Automation

Includes Metso IC™ process control

Application

Designed for modular or high-throughput crushing lines
Our team is working on new customer success stories! Check back soon for real-world insights on this product.
