Applications
- Sand and gravel.
- Organic materials screening.
- Aggregate screening.
Features

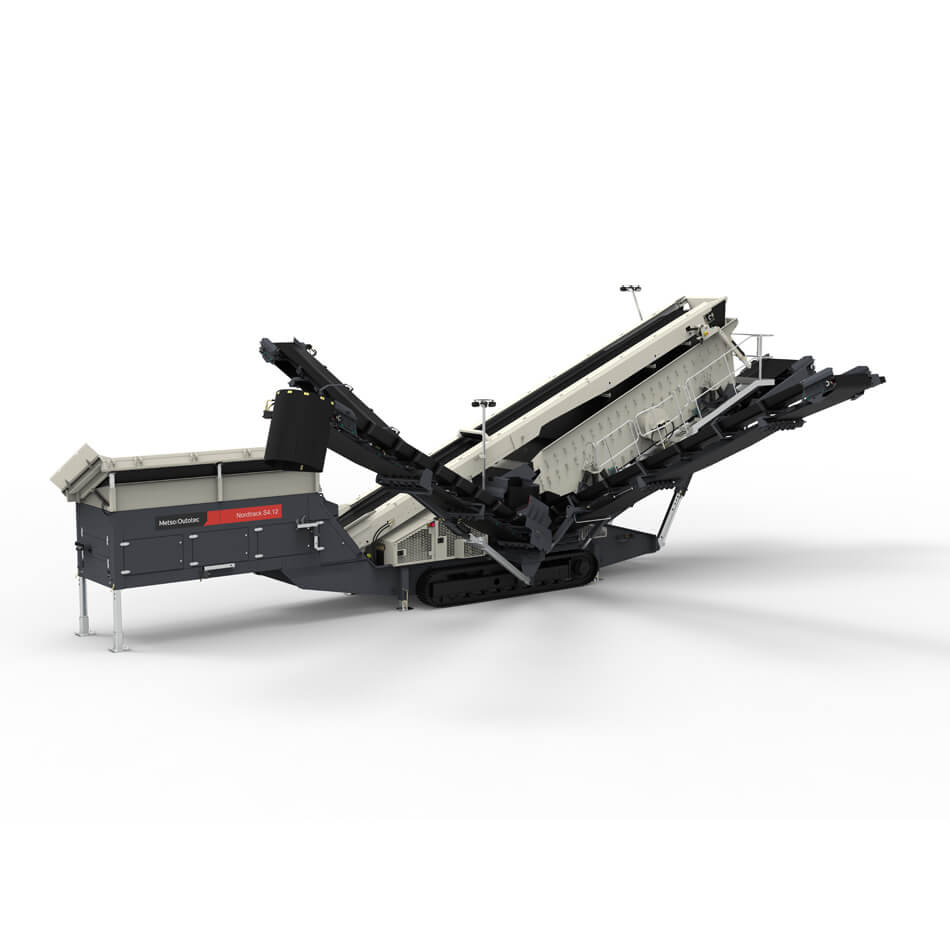

The Nordtrack S4.12 mobile screen has 3 decks for effective high volume screening. With the extra remote controller, you can control the feeder functionalities from, for example, the excavator cabin.
KEY FEATURES
- Large screenbox with 3 decks.
- Efficient feeding.
- Simple to set up and service.
- Efficient dust suppression (option).
- Powerful engine.
- Easy to move on-site.
Specifications
- Screen size: Top deck 6,710 x 1,830 mm (22’ x 6’), middle deck 6,710 x 1,830 mm (22’ x 6’), bottom deck 6,100 x 1,830 mm (20’ x 6’).
- Decks: 3.
- Feed hopper: 4,500 mm wide feed hopper (10,0 m³ / 13,1 yd³).
- Engine: Tier 3 LRC: CAT® C7.1 165 kW (225 hp) / Stage IIIB: CAT® C7.1 CSE 209 kW (281 hp) / Tier 4F / Stage V: CAT® C7.1 165 kW (225 hp).
- Weight: 42,400 kg (90,600 lbs).
- Transport width: 3,700 mm (11′ 10″).
- Transport height: 3,600 mm (11′ 10″).
- Transport length: 19,600 mm (64′ 15″).
- Included in standard configuration: Tipping grid, Three-way platform , Hydraulic lifting conveyor raising, Hydraulic fines conveyor lowering, Remote controller for tracks, Working lights, Hydraulic PTO.
- Options: Water spraying system with pump, Extra remote controller for feeder functions, Two-deck vibrating grid (on request).
