Applications
- Concrete waste screening.
- Sand and gravel.
- Organic materials screening.
- Aggregate screening.
Features

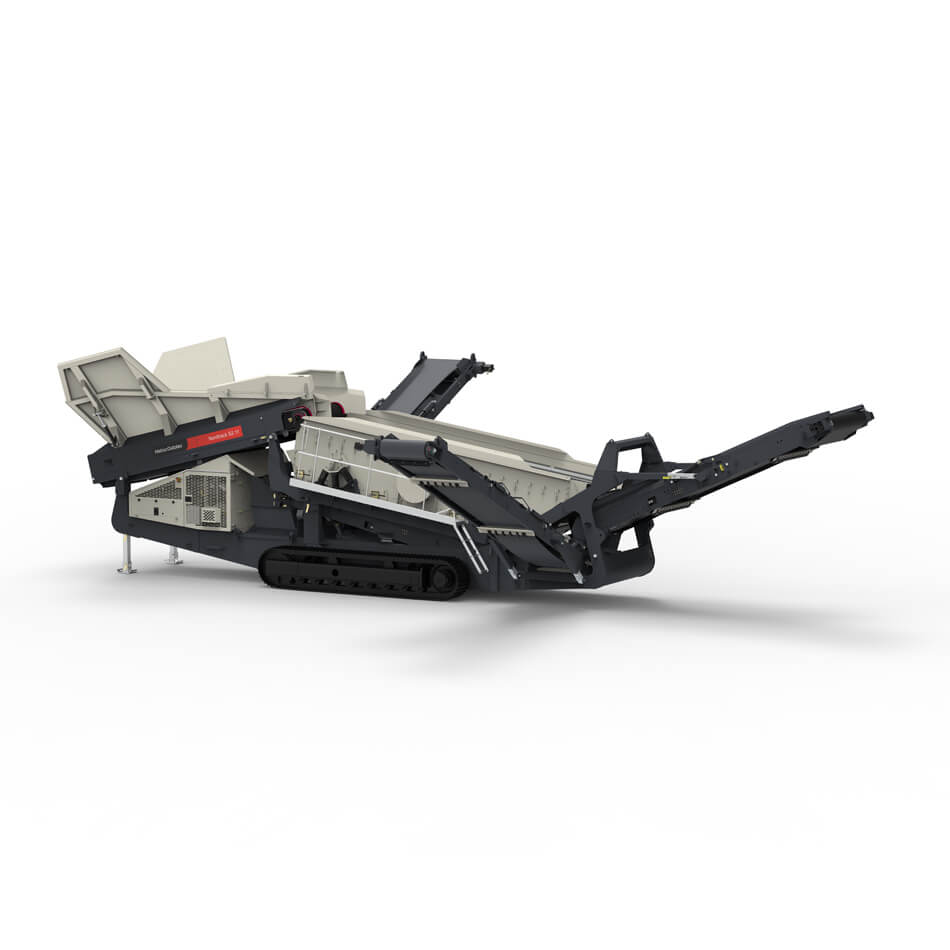

The Nordtrack S2.11 mobile scalping screen can handle massive volumes of feed material with precision. It gives you the flexibility to screen a wide variety of feed materials in different recycling, demolition and aggregate applications.
KEY FEATURES
- High capacity versatile screening.
- High volume and precision.
- High capacity feeder with durable structure.
- Efficient dust suppression (option).
- Flexible working positions.
- Agile and easy to move on-site.
- Powerful engine.
Specifications
- Screen size: Top deck 6,100 x 1,800 mm (20’ x 6’), bottom deck 5,500 x 1,800 mm (18’ x 6’).
- Decks: 2.
- Feed hopper: 11.5 m³ / 15.0 yd³).
- Engine: Tier 3 LRC: CAT® C7.1 165 kW (225 hp) / Stage IIIB: CAT® C7.1 CSE 209 kW (281 hp) / Tier 4F / Stage V: CAT® C7.1 165 kW (225 hp).
- Weight: 37,200 kg (82,000 lbs).
- Transport width: 3,000 mm (9′ 10″).
- Transport height: 3,600 mm (11′ 8.8″).
- Transport length: 17,000 mm (55′ 8″).
- Included in standard configuration: Remote controller for tracks, working lights.
- Options: Apron feeder, Two-way split, Kit for side conveyors on same side, Water spraying system with pump, Extra remote controller for feeder functions, Bi-Power system to drive hydraulic circuit (on request).
