Applications

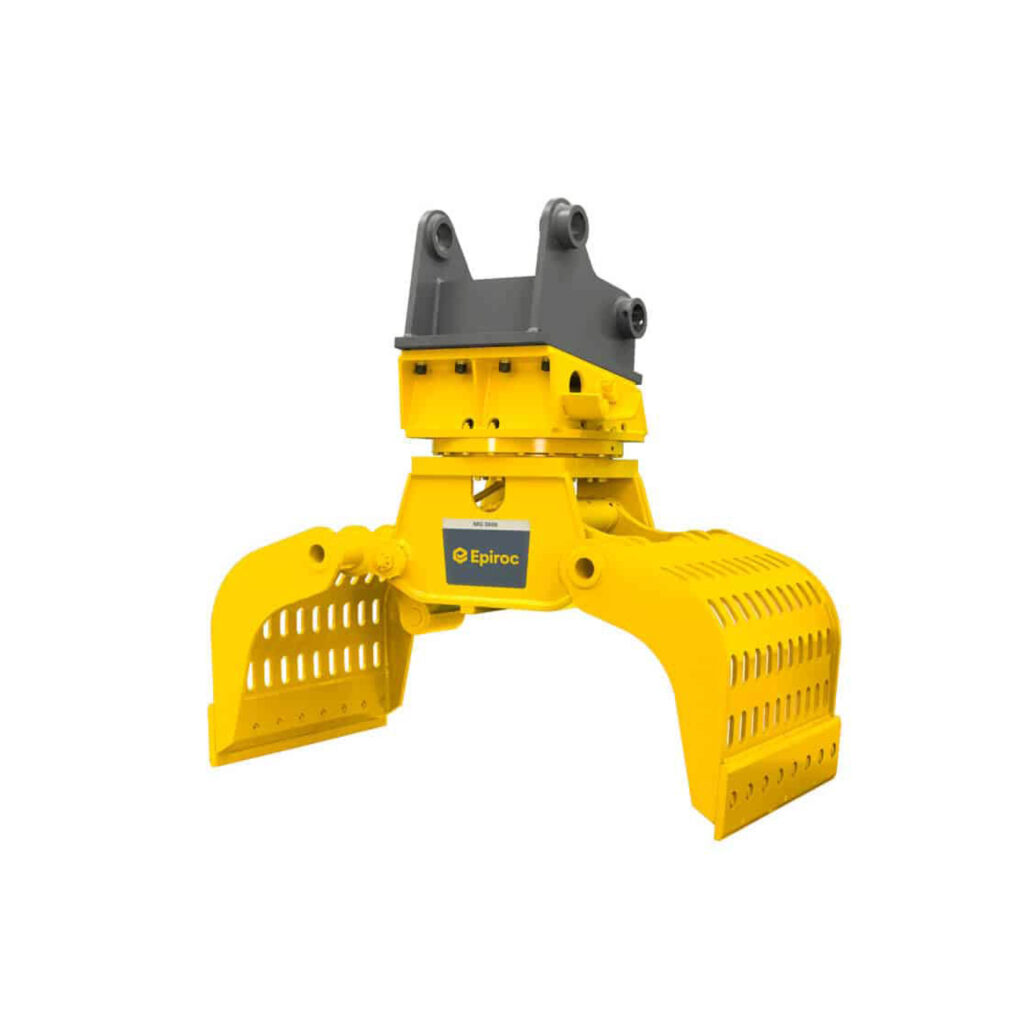

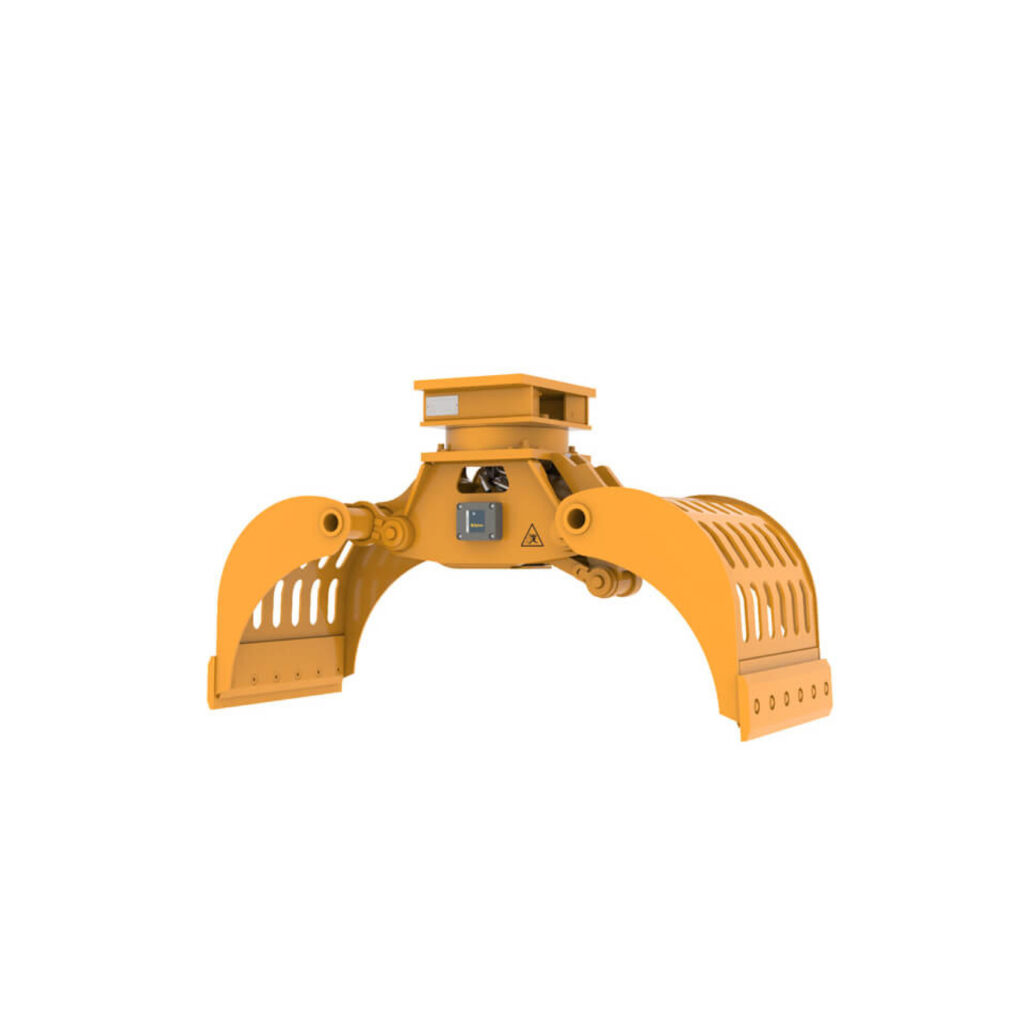

Epiroc’s Multi Grapples are ideal excavator attachments for loading and sorting various materials as well as demolishing wooden and masonry structures.
Features
- 360° endless hydraulic rotation allows optimal positioning and precise handing.
- Integrated mechanical stop to reduce load on cylinders.
- Solid perforated shells provide excellent visibility during operations.
- Cutting blades are both replaceable and reversible.
- Possible to switch from rotation to non-rotation or converse.
- Optional tooth blades for block and stone handling.
- Optional bolt-on side plates for handling fine-grained material and debris.
- Removable rotation unit to allow proper use with tilt-rotators.
Specifications
- Carrier weight class: 12-20 t.
- Service weight (rotation): 1,200 kg.
- Service weight (non-rotation): 1,090 kg.
- Product weight (rotation): 1,016 kg.
- Product weight (non-rotation): 906 kg.
- Jaw opening, max: 1,900 mm.
- Grapple width: 810 mm.
- Max. closing force: 4.6 t.
- Loading volume: 0.49 m³.
- Oil flow: 85-120 l/min.
- Operating pressure: 350 bar.
- Oil flow, rotation: 20-25 l/min.
- Max operating pressure, rotation: 170 bar.
