Dynapac CA1400D roller

Single Drum Roller

Dynapac CA1400D Roller

Operating Mass

6,500kg

Static Linear Load

20 kg/cm

Compaction Width

1676 mm
The Dynapac CA1400D Roller is engineered for versatile compaction tasks in road construction, parking lots, and building sites. Its compact size and robust performance make it suitable for steep slopes and confined spaces.

Built for All-Terrain Compaction

The Dynapac CA1400D Roller offers a robust solution for compaction tasks with its Kubota V3307 CR-TE5 engine, delivering 55 kW of power. Equipped with a 1676 mm drum width, it excels in both productivity and precision. Features such as high static linear load and ECO mode enhance efficiency while reducing fuel consumption and noise. Designed for steep gradients and varied terrains, it boasts superior traction and an optimised angle of attack. Operator safety and comfort are prioritised with excellent visibility, ergonomic controls, and a vibration-reducing platform, ensuring maximum productivity on every job site.

Dynapac CA1400D Roller Specifications

Vibration Frequency35 Hz
Vertical Oscillation±9°
Speed Range0-10 km/h
EngineKubota V3307 CR-TE5*
Rated Power55 kW (75 HP) @ 2200 rpm

Warranty: 1 year or 1500 Hours Dynaplus Extended Warranty Plans Available.

Seismic Technology

Enhances efficiency by adjusting to varying soil conditions automatically.

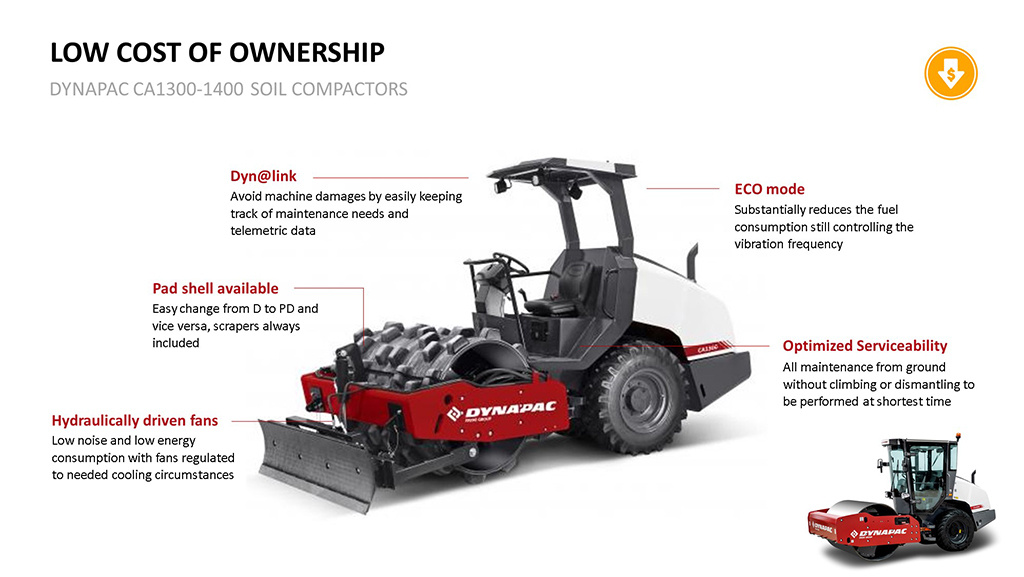

ECO Mode

Optimises fuel usage to lower emissions without compromising engine performance.

Bouncing Control

Prevents drum bouncing, protecting compaction surfaces and improving accuracy.

Gradeability

Handles steep slopes with ease, achieving up to 55% gradeability.

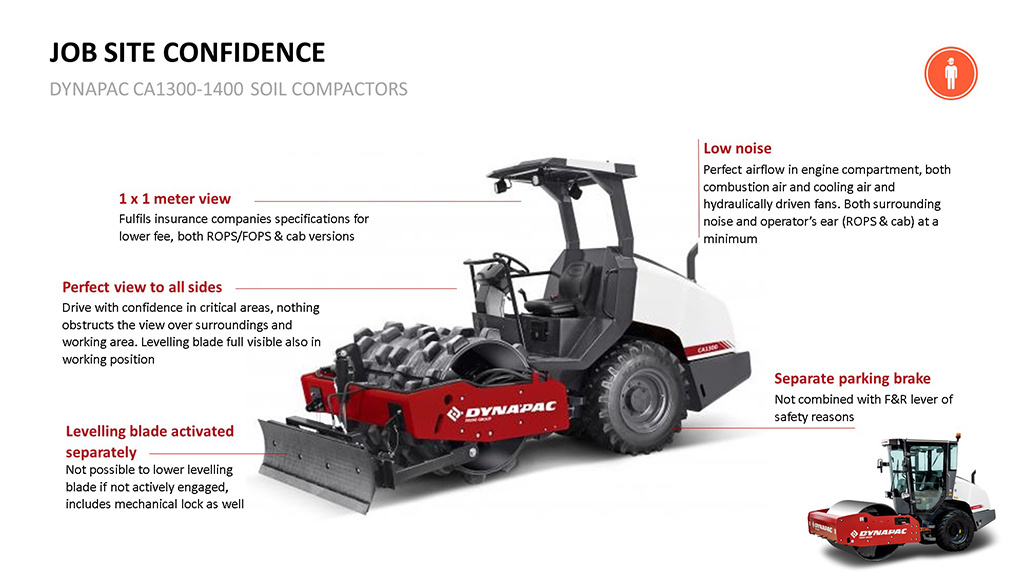

Operator Comfort

Provides ergonomic seating and intuitive controls for long working hours.

Robust Design

Engineered to withstand tough operating conditions with maximum reliability.
