Compact Wheel Loader CASE 321F Front-End Wheel Loader mimico nz

Compact Wheel Loader

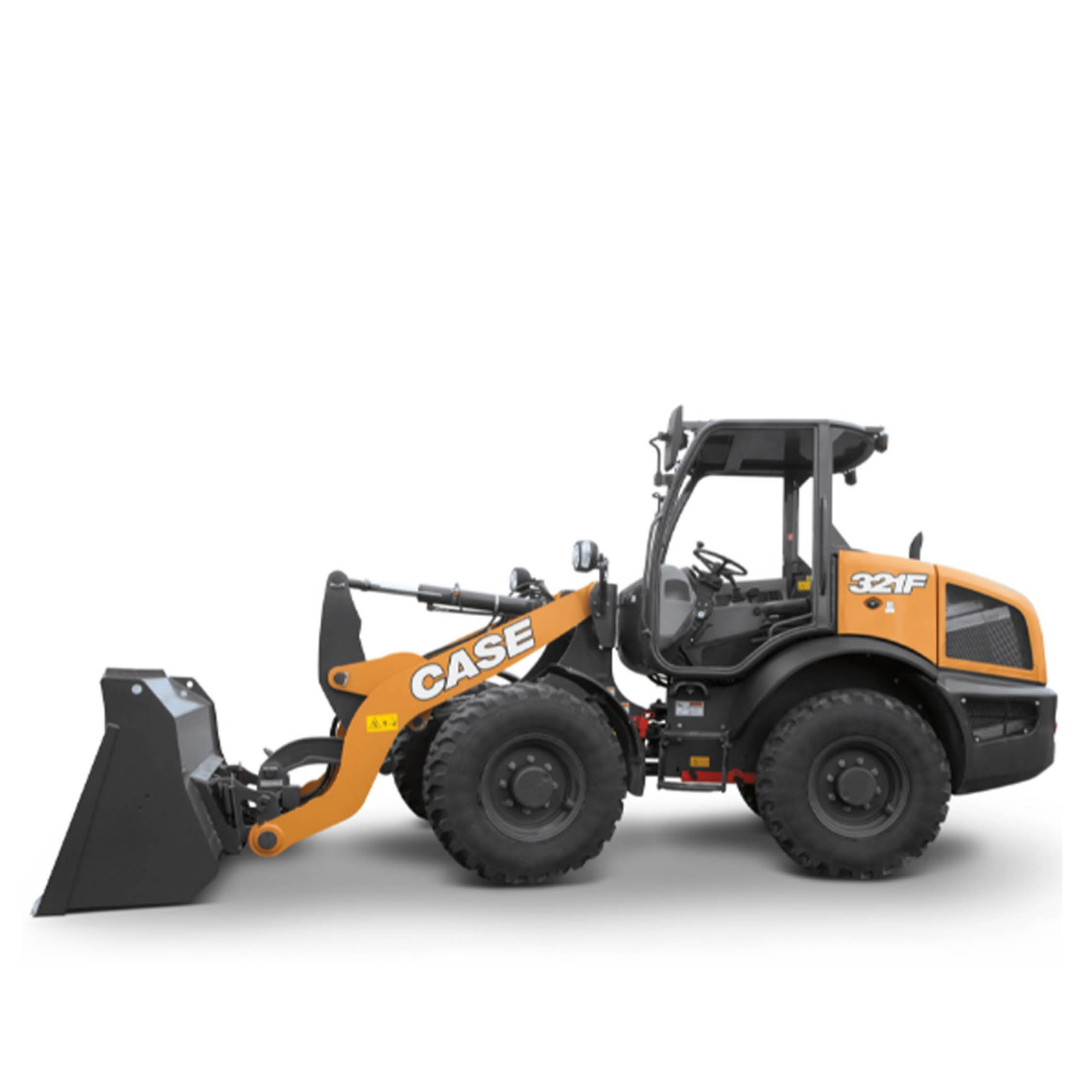

CASE 321F Front-End Wheel Loader

Operating Weight

6195 kgs

Engine Power

74 hp / 55 kW

Bucket Capacity

1.0 – 1.3 m³
The CASE 321F is a powerful and versatile compact wheel loader, ideal for construction, landscaping, agriculture, and municipal applications. With a robust 74 hp engine, high breakout force, and Z-Bar linkage, it delivers exceptional material handling, loading, and earthmoving performance in tight job sites.

Powerful Performance. Maximum Versatility.

Built for demanding worksites, the CASE 321F delivers exceptional power, speed, and versatility. Equipped with a 74 hp (55 kW) turbocharged engine, it meets Tier 4 Final emissions standards while delivering high breakout force for tough loading tasks. The Z-Bar linkage ensures superior digging power and bucket retention, while its high-flow hydraulics (optional) maximise efficiency for attachments. With an operating weight of 6,195 kg and a bucket capacity of 1.0 – 1.3 m³, the 321F is perfect for construction, landscaping, and material handling – offering New Zealand operators maximum productivity in compact spaces.

CASE 321F Front-End Wheel Loader Specifications

Engine TypeFPT F5H FL463 A8F001
Engine Power (hp)70
Operating Weight (kg)6034
Breakout force (kN)4570
Tipping load Full Turn (kg)2695
Bucket capacity (m³)1
Max Travel Speed (km/h)33.1
Hydraulic Flow Rate (L/min)130
Fuel Tank (L)86
Total Height (mm)2680

Warranty: 12 months / 2,000 hours or Extended Up to 5 years / 10,000 hours

High Breakout Force

The Z-Bar linkage provides superior breakout force, making heavy digging and material handling effortless, even in tough ground conditions.

Optimised Hydraulic Flow

Standard 85 lpm hydraulic flow with an optional high-flow package (130 lpm) enables enhanced performance for demanding attachments.

Compact Yet Powerful

With a 74 hp turbocharged engine and a tight turning radius, the 321F delivers big performance in confined spaces.

High Travel Speed Option

An optional High Travel Speed (HTS) version increases maximum speed to 33 km/h for faster jobsite mobility.

Auto-Ride Control

Automatically engages at speeds over 7 km/h to reduce arm bouncing and maximize bucket retention.

Low Cab Profile

At just 2.68m tall, the 321F easily navigates under low clearances and can be transported with ease.
