3D-Scanned Plant Relocation Delivered On Schedule

Horokiwi Quarries Ltd – Barmac VSI Relocation.

Horokiwi Quarries engaged MIMICO Engineering to relocate their Barmac B9600 VSI crusher while minimising site downtime. Using 3D scanning and point cloud modelling, MIMICO accurately integrated new plant components with the existing plant structure to ensure a smooth, efficient installation.

Horokiwi Quarries Ltd operates a major aggregate supply operation servicing the Wellington region, with a broad product range that supports both commercial construction and residential projects. As part of ongoing site improvements, Horokiwi Quarries required their existing Barmac B9600 VSI crusher to be relocated and integrated into a revised plant layout.

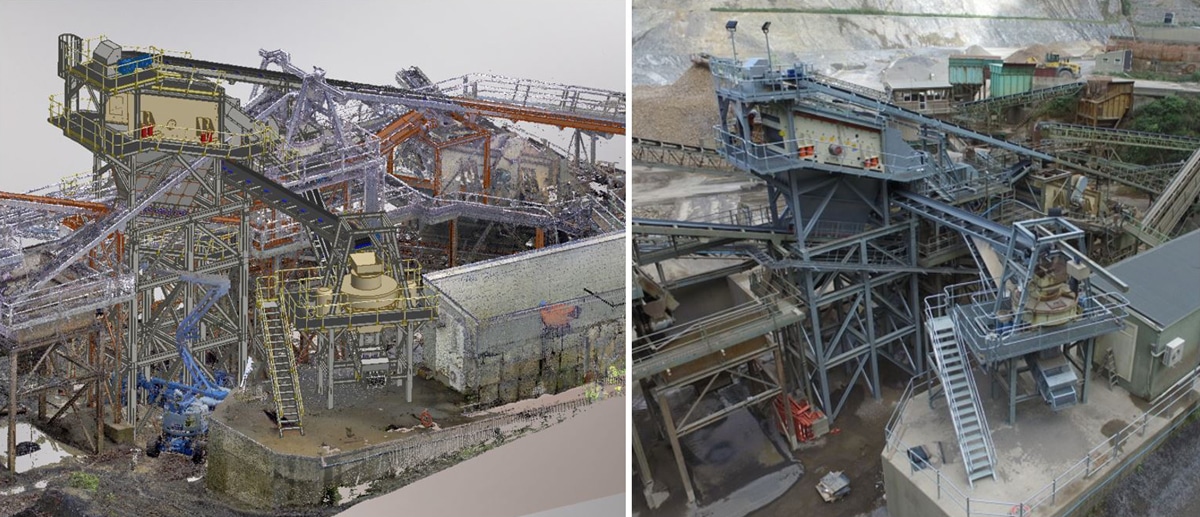

The key challenge was ensuring that the relocation could be executed with minimal interruption to production. To achieve this, MIMICO Engineering deployed full 3D scanning technology to accurately capture the existing plant layout. Using detailed point cloud data, MIMICO was able to model the new plant design with precise interface connections to the existing equipment.

This level of detailed design work eliminated potential installation conflicts and allowed the relocation project to be completed ahead of schedule.

Project Highlights:

  • 3D scanning of existing plant for accurate design integration

  • Full 3D modelling of all new and existing interface components

  • Installation of Metso CVB1845-3 Compact Series Screen

  • MIMICO Engineering-designed screen support structure

  • Fully lined under-screen and front rolling discharge chutes

  • New support structure for the existing Barmac B9600 VSI crusher

  • Existing screen feed conveyor extension

  • Three new conveyors supplied, fully guarded to AS/NZS 4024 standards

  • All new steelwork supplied with galvanised finish for durability

Through advanced scanning, detailed design, and efficient project delivery, MIMICO Engineering successfully relocated and upgraded Horokiwi Quarries’ VSI crushing circuit while minimising operational disruption.

Project gallery.

Project at a glance.

Customer
Horokiwi Quarries
Location
Wellington
Crusher
Barmac B9600 VSI relocated
Screen
Metso CVB1845-3
Design
3D scanning and modelling
Conveyors
Three new, guarded to AS/NZS 4024
