Primary Scalping Screen Installed for Efficient Limestone Processing

Graymont Lime – Fixed Scalping Screen Installation.

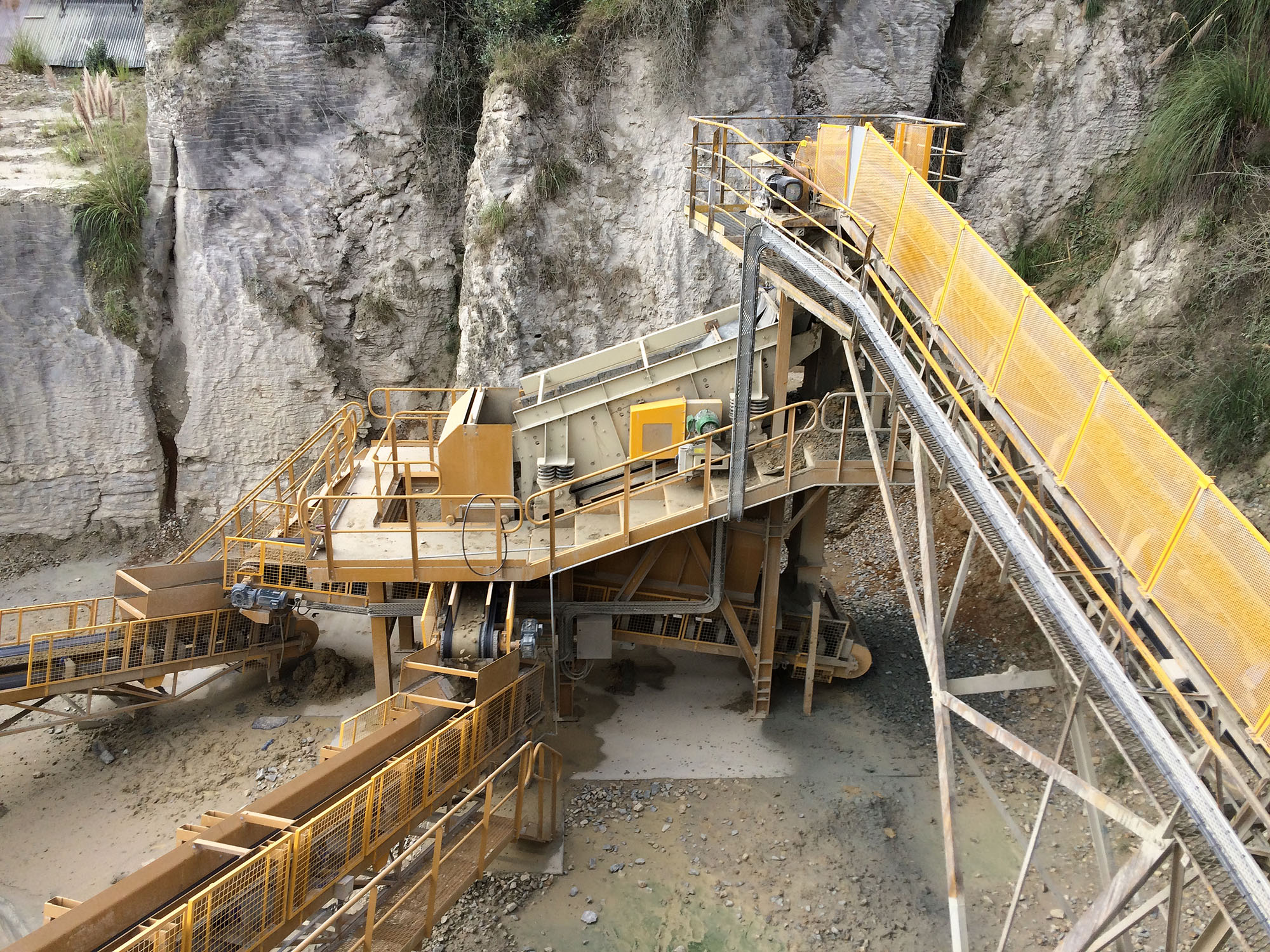

Graymont Lime engaged MIMICO Engineering to install a new fixed scalping screen at their Te Kuiti plant. The project involved the installation of a Svedala VFS 36/15 double deck screen, modular wear components, and custom chutes and conveyors, all fully integrated into the existing plant.

Graymont is a global leader in lime and limestone solutions, supplying products used in air and water purification, steelmaking, paper production, metals refining, and many other essential industries. With a significant presence across the Asia-Pacific region, Graymont operates the Te Kuiti lime plant in New Zealand as part of its network.

To improve front-end processing, Graymont required the installation of a new scalping screen to remove oversize material ahead of their primary Horizontal Shaft Impactor. MIMICO Engineering was engaged to deliver a complete turnkey solution.

MIMICO installed a Svedala VFS 36/15 double deck primary scalping screen, complete with a Metso Trellex rubber modular panel system — specifically selected to handle the sticky nature of the limestone scalpings and extend wear life.

A custom in-feed bypass chute was incorporated to allow Graymont to bypass the screen when feed material quality did not require scalping, giving the plant greater flexibility.

The full installation also included:

  • Roll-away discharge chutes for easy maintenance access

  • 30/100 mm product conveyor and transition chute with full skirting and walkways for safe access

  • 0/30 mm product conveyor with walkways for maintenance access at both head and sides

Through careful design and integration, MIMICO delivered a complete scalping screen upgrade that improved processing efficiency, flexibility, and safety at Graymont’s Te Kuiti site.

Project Highlights:

  • Svedala VFS 36/15 double deck primary scalping screen installed

  • Metso Trellex rubber modular panel system to handle sticky material

  • In-feed bypass chute for operational flexibility

  • Full structural screen support and roll-away discharge chutes

  • 30/100 mm and 0/30 mm product conveyors with full walkways and skirting

By combining specialised design with robust wear components, MIMICO Engineering helped Graymont optimise the performance and reliability of its limestone processing plant.

Project gallery.

Project at a glance.

Customer
Graymont
Site
Te Kuiti lime plant
Screen
Svedala VFS 36/15 double deck
Screen media
Metso Trellex rubber modular
Scope
Turnkey scalping screen upgrade
Feature
In-feed bypass chute
