Compact, high-pressure slurry pump designed for demanding mineral processing applications with space constraints.

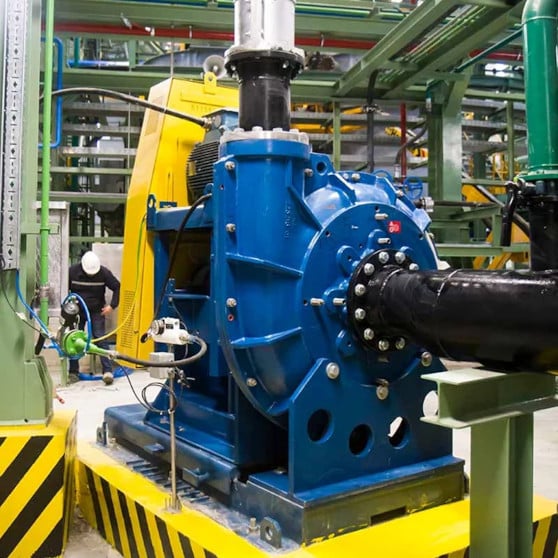

The Metso VASA HD Series horizontal slurry pumps are engineered for tough applications in the mineral processing industry, especially where space is limited and higher operating pressures are required. With flow rates up to 1,000 m³/h and heads up to 55 m, these pumps feature a robust design, interchangeable wear parts in rubber or high-chrome iron, and a unique slide-base for easy maintenance. Ideal for mill discharge, hydrocyclone feed, tailings disposal, and in-plant slurry transfer.
| Max Flow Capacity | Up to 1,000 m³/h |
|---|---|
| Max Head | Up to 55 m |
| Max Operating Pressure | 25 bar (360 psi) |
| Lining Options | Natural Rubber or High-Chrome Iron |
| Shaft Design | Oversized roller bearings in cartridge housing |
| Sealing Options | Gland packed, water-flushed stuffing box, dynamic expeller seal |
| Maintenance Features | Slide-base and back-pull-out design |
| Installation | Compact footprint with flexible motor mounting |
| Applications | Mill discharge, hydrocyclone feed, tailings disposal, in-plant slurry transfer |
| Industry Use | Mining, Mineral Processing |
| Impeller Attachment | Taper and key for secure fit and easy replacement |
| Casing Design | Vertically split, allows operation of up to five pumps in series |
