Cone Crusher

Nordwheeler NW300HPS Mobile Cone Crusher

Crusher Unit

Nordberg® HP300

Screen Model

CVB2060-4M

Motor Power

220 kW

High-capacity mobile cone crusher with Nordberg® HP300 and four-deck screen. Ideal for efficient secondary and tertiary crushing.

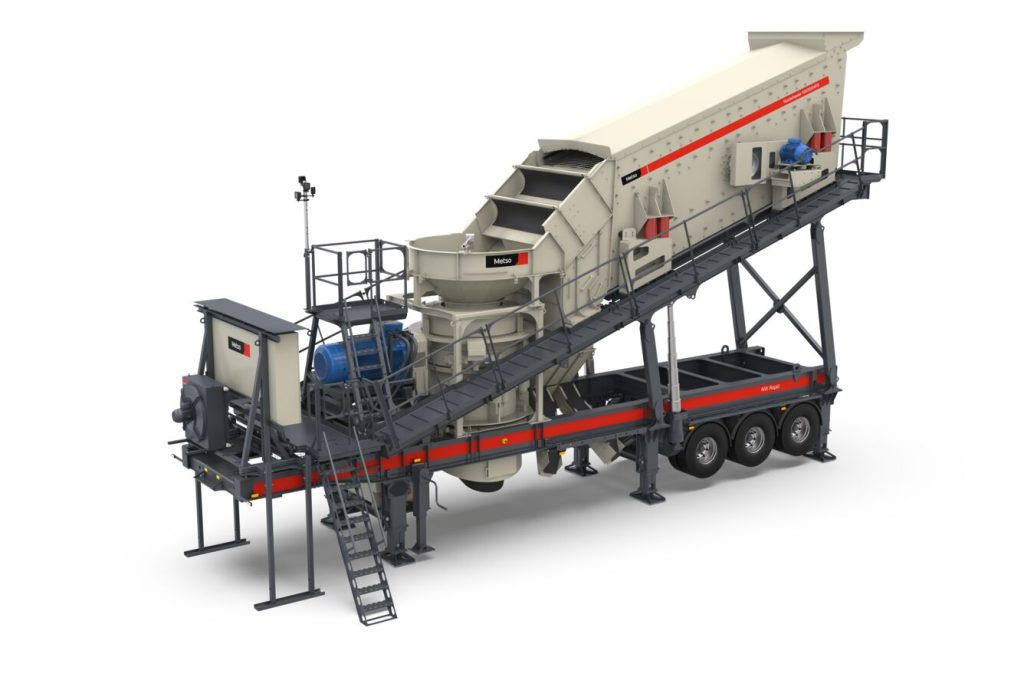

56T Unit with HP300 Crusher and CVB2060-4M Screen

The NW300HPS combines the Nordberg® HP300 cone crusher with a CVB2060-4M four-deck screen in a portable, electric-driven unit. Built for demanding secondary and tertiary applications, this unit ensures productivity and product consistency across multiple end sizes.

Nordwheeler NW300HPS Mobile Cone Crusher Specifications

Crusher Model	Nordberg HP300™
Max Feed Size (mm)	241
CSS Range (mm)	10–45
Motor Power (kW)	220
Screen Model	CVB2060-4M
Screen Size (mm)	6000 x 2000
Screen Power (kW)	22
Transport Length (mm)	15307
Transport Width (mm)	3190
Transport Height (mm)	4357
Transport Weight (kg)	55900
Bogie Weight (kg)	36250

Warranty: MIMICO offers warranty on all material processing equipment, with dynamic options to suit your needs. We also have servicing packages to keep your plants running smoothly. Get in touch with our sales support team to find the right solution for you.

Crusher Type

Nordberg® HP300 cone for high-volume reduction

Screening Unit

CVB2060-4M screen for precision sorting

Transport Setup

3-axle bogie for stable site mobility

Drive Power

220 kW electric motor

Automation

Fully integrated with Metso IC™ control system

Application

Tertiary and multi-product aggregate crushing

Our team is working on new customer success stories! Check back soon for real-world insights on this product.
