Cone Crusher

Nordwheeler NW220GPS Mobile Cone Crusher

Crusher Unit

Nordberg® GP220

Screen Model

DS1855-5

Motor Power

200 kW

Portable cone crusher with Nordberg® GP220 and DS1855-5 screen. Delivers precision screening and powerful secondary crushing.

36T Unit with GP220 Crusher and DS1855-5 Screen

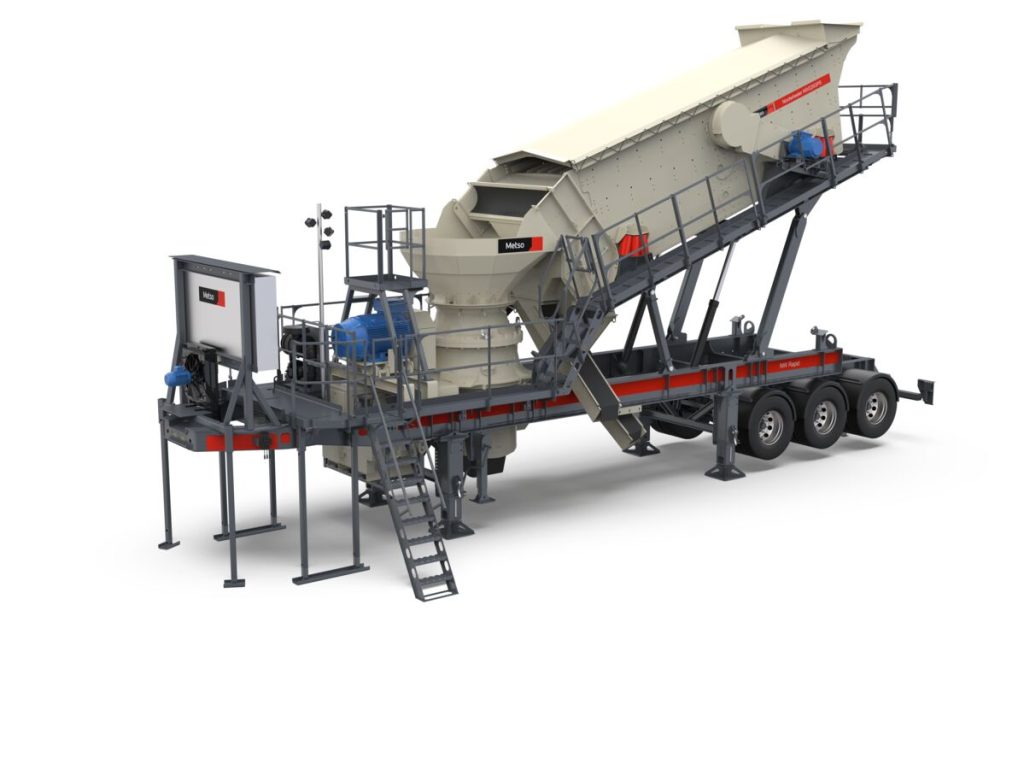

The NW220GPS combines the Nordberg® GP220 cone crusher with a DS1855-5 screen in a fully electric, portable setup. Built for secondary crushing and high output quality, this compact unit is road-towable and controlled via Metso IC™ automation. Ideal for quarries or civil sites needing up to five calibrated end products.

Nordwheeler NW220GPS Mobile Cone Crusher Specifications

Crusher Model	Nordberg GP220™
Max Feed Size (mm)	213
CSS Range (mm)	8–35
Motor Power (kW)	200
Screen Model	DS1855-5
Screen Size (mm)	5500 x 1800
Screen Power (kW)	15
Transport Length (mm)	13738
Transport Width (mm)	3029
Transport Height (mm)	4504
Transport Weight (kg)	36200
Bogie Weight (kg)	22300

Warranty: MIMICO offers warranty on all material processing equipment, with dynamic options to suit your needs. We also have servicing packages to keep your plants running smoothly. Get in touch with our sales support team to find the right solution for you.

Crusher Type

Nordberg® GP220 cone for precise secondary reduction

Screening Unit

DS1855-5 screen supports multiple end-product sizes

Transport Setup

2-axle bogie for site mobility

Drive Power

Electric 200 kW motor for efficient operation

Automation

Metso IC™ system supports remote and local control

Application

Suitable for quarries and civil contractors

Our team is working on new customer success stories! Check back soon for real-world insights on this product.
