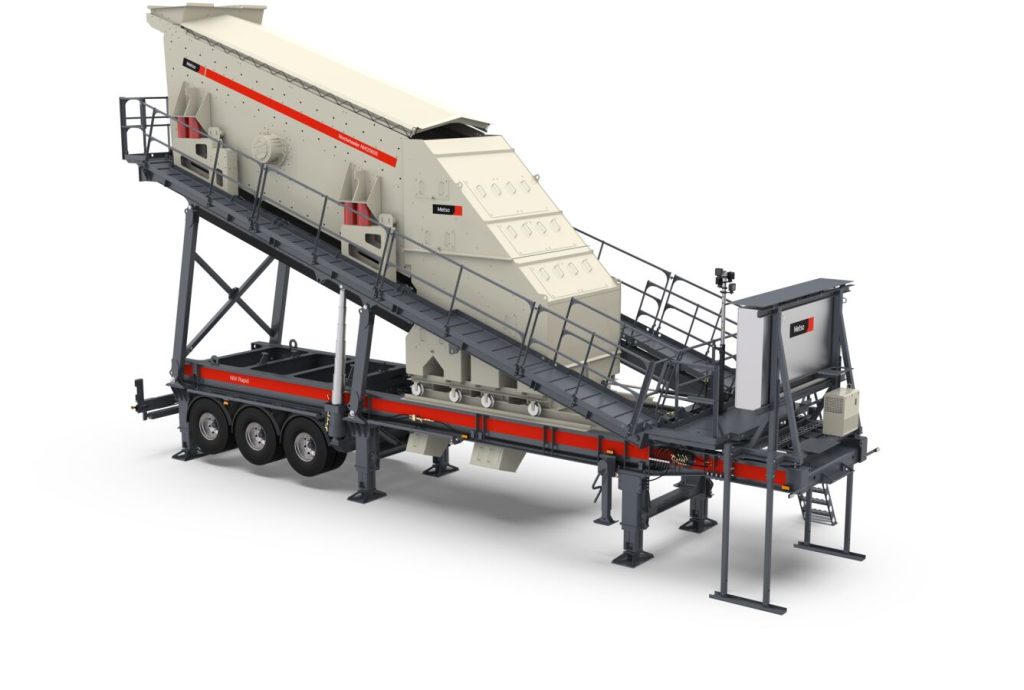

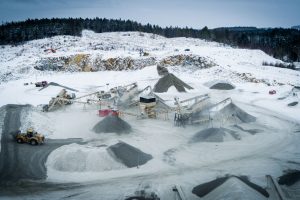

Metso NW2060S Nordwheeler Screen portable MIMICO NZ - Clearcut (1)

Screen

Nordwheeler NW2060S-4 Mobile Screen

Screen Model

CVB2060-4

Screen Size

6000 x 2000

Transport Weight

36,928 kg
High-capacity screen plant with CVB2060-4. Delivers accurate sorting for up to four end products.
View Brochure
Call Sales Support

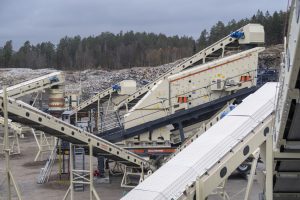

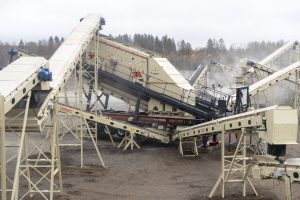

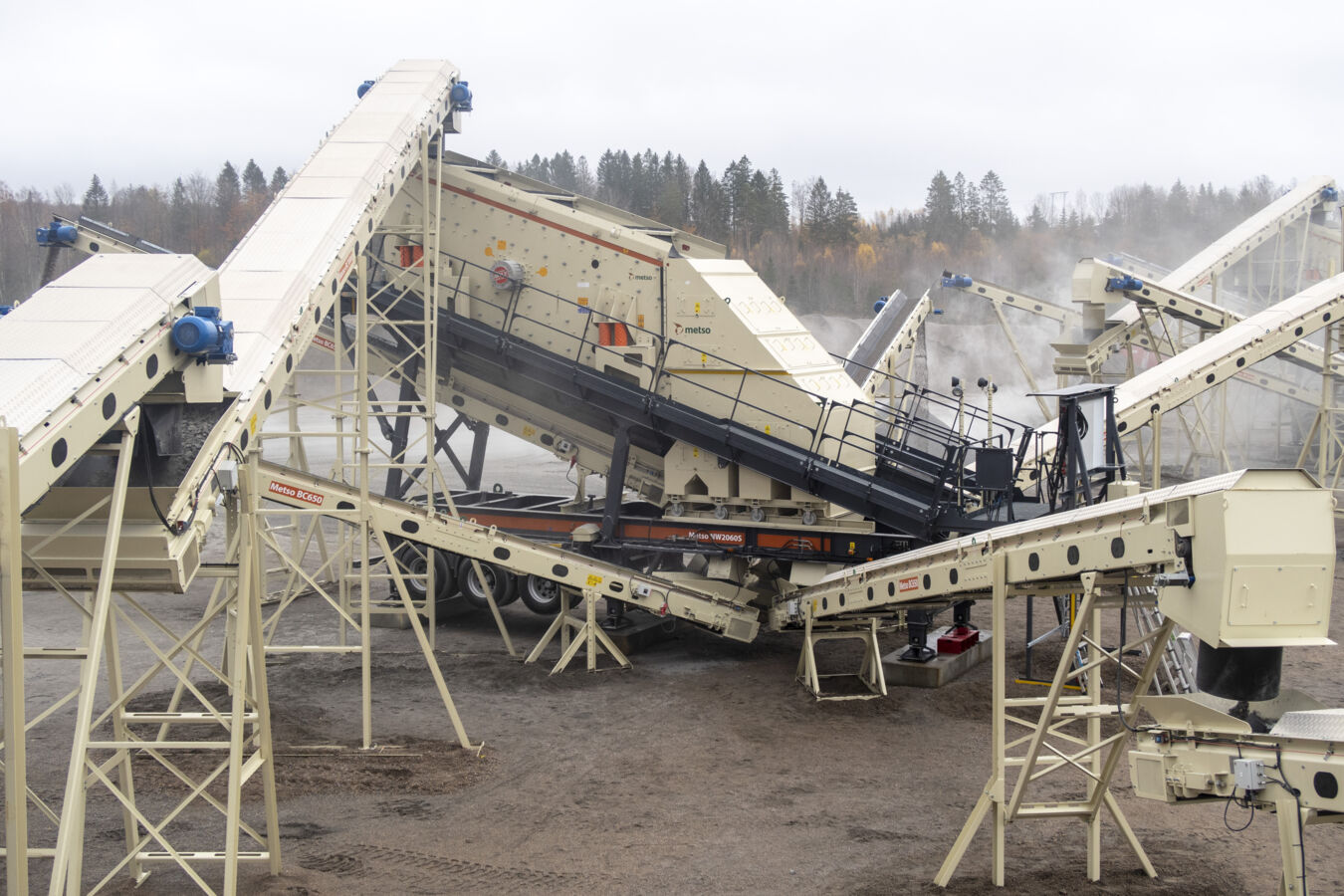

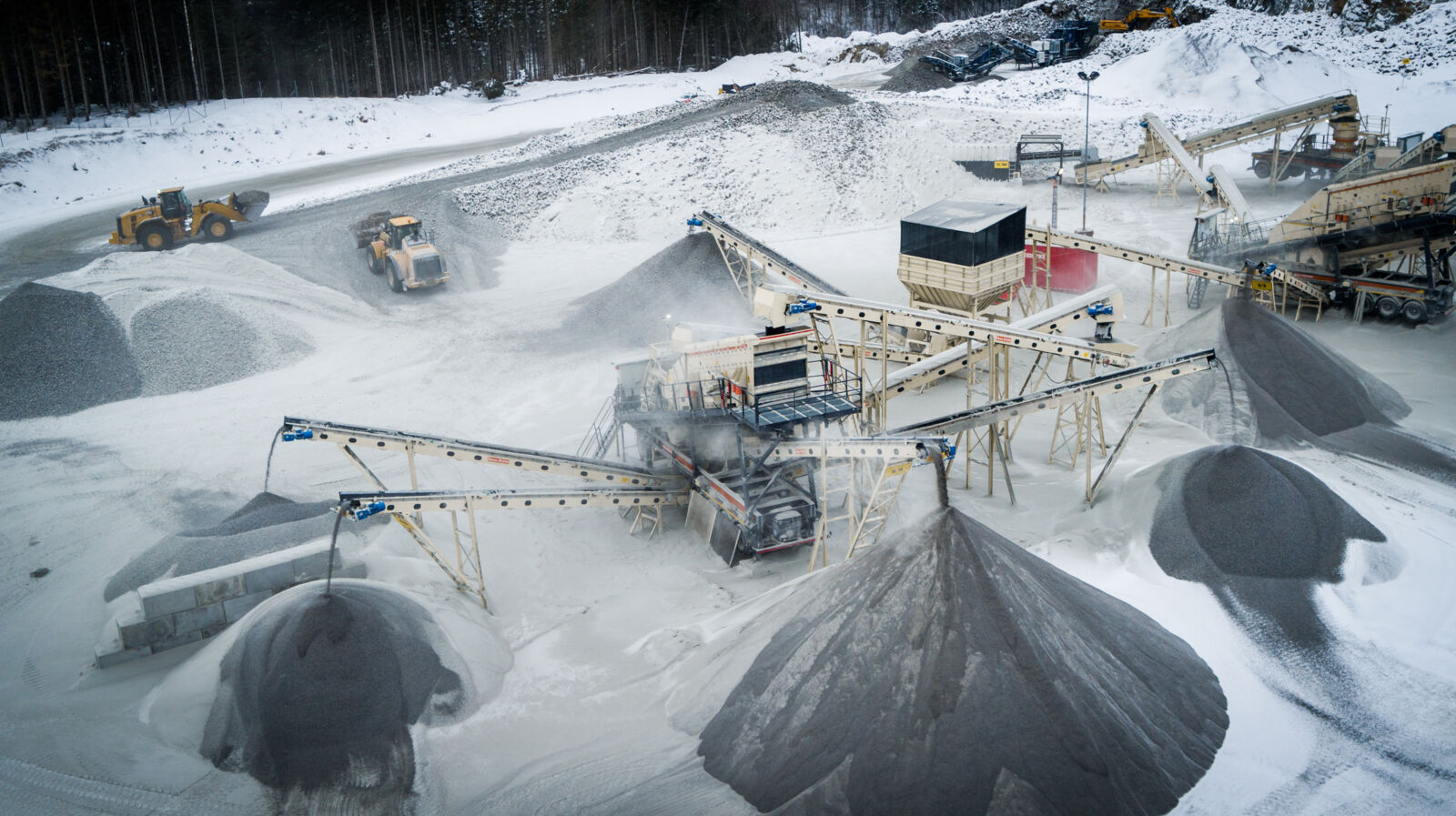

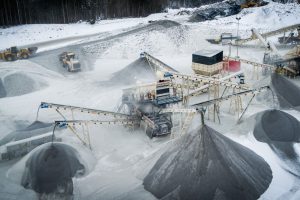

Metso Nordwheeler NW2060S Mobile Screen MIMICO NZ (6)
Metso Nordwheeler NW2060S Mobile Screen MIMICO NZ (6)
Metso Nordwheeler NW2060S Mobile Screen MIMICO NZ (6)
Metso Nordwheeler NW2060S Mobile Screen MIMICO NZ (6)
Metso Nordwheeler NW2060S Mobile Screen MIMICO NZ (6)
Metso Nordwheeler NW2060S Mobile Screen MIMICO NZ (6)
Metso Nordwheeler NW2060S Mobile Screen MIMICO NZ (6)

37T Four-Deck Inclined Screen Unit

The NW2060S-4 features the CVB2060-4 four-deck screen for large volume material classification. Fully electric and portable with quick setup, this unit is designed for high-throughput screening in demanding environments.

Nordwheeler NW2060S-4 Mobile Screen Specifications

Screen ModelCVB2060-4
Screen Size (mm)6000 x 2000
Screen Power (kW)22
Transport Length (mm)14998
Transport Width (mm)3190
Transport Height (mm)4200
Transport Weight (kg)36928
Bogie Weight (kg)28633
King Pin Weight (kg)8295

Warranty: MIMICO offers warranty on all material processing equipment, with dynamic options to suit your needs. We also have servicing packages to keep your plants running smoothly. Get in touch with our sales support team to find the right solution for you.

Download Spec Sheet

Screen Unit

CVB2060-4 four-deck screen

Screen Power

22 kW for high-output screening

Transport Setup

3-axle bogie with wide screening base

Deck Configuration

Supports four product sizes

Automation

Process control enabled via IC™ system

Application

Large volume screening and sorting
Our team is working on new customer success stories! Check back soon for real-world insights on this product.
