Jaw Crusher

Nordwheeler NW106 Mobile Jaw Crusher

Feed Opening

1,060 x 700 mm

Motor Power

110 kW

Transport Weight

34,000 kg

Compact, road-mobile jaw crusher with the reliable Nordberg® C106™ jaw and electric drive. Suited for primary crushing on short- to medium-term sites.

Compact 34T Unit with 1,060 mm Jaw Opening

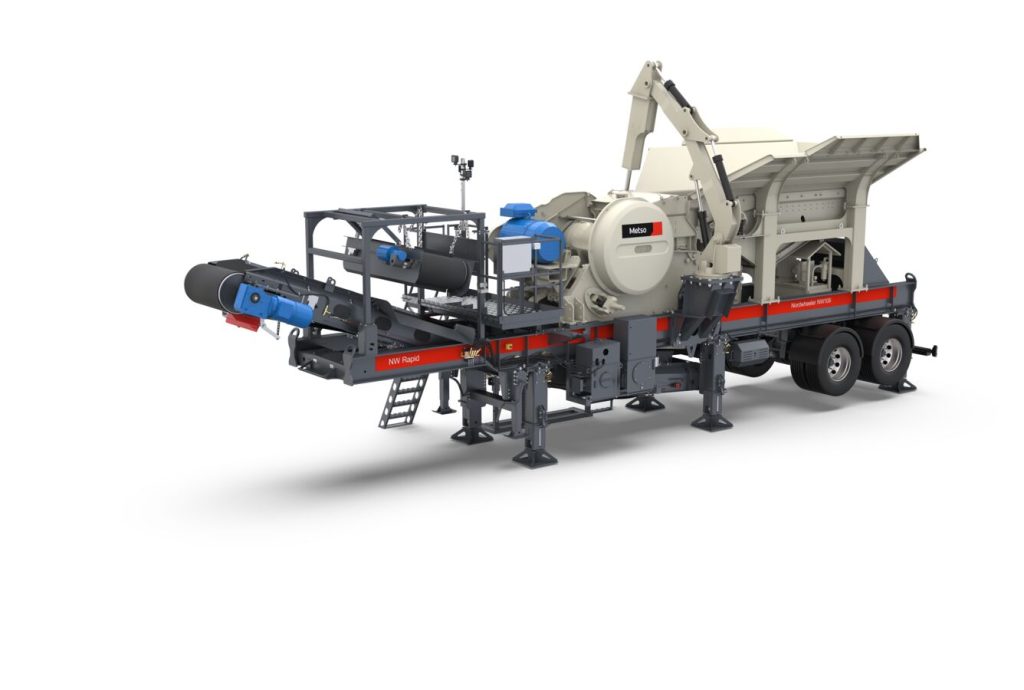

The NW106 portable jaw crusher features the Nordberg® C106™ jaw unit on a wheeled chassis with electric drive. With a 1,060 x 700 mm feed opening, it delivers consistent primary reduction. Ideal for mobile applications, it offers a fast setup, optional rock breaker, and process automation as standard. The NW106 is designed for multisite flexibility, transport efficiency, and integrated Metso IC™ process control.

Nordwheeler NW106 Mobile Jaw Crusher Specifications

Jaw Model	Nordberg C106
Feed Opening (mm)	1060 x 700
CSS Range (mm)	70â€“200
Motor Power (kW)	110
Feeder Model	TK11-42-2V
Feeder Length (mm)	4200
Feeder Width (mm)	1100
Transport Length (mm)	13482
Transport Width (mm)	3130
Transport Height (mm)	4117
Transport Weight (kg)	34000
Bogie Weight (kg)	19800

Warranty: MIMICO offers warranty on all material processing equipment, with dynamic options to suit your needs. We also have servicing packages to keep your plants running smoothly. Get in touch with our sales support team to find the right solution for you.

Jaw Unit

Nordberg® C106™ electric jaw for primary reduction

Feeder System

TK11-42-2V vibrating feeder for consistent flow

Transport Setup

2-axle bogie with hydraulic legs for fast relocation

Feed Opening

1,060 x 700 mm intake for hard rock and recycled material

Automation

Metso IC™ system with onboard or remote control

Hopper Design

Foldable hopper for compact transport and quick setup

Our team is working on new customer success stories! Check back soon for real-world insights on this product.
