Tracked Feeder Stacker

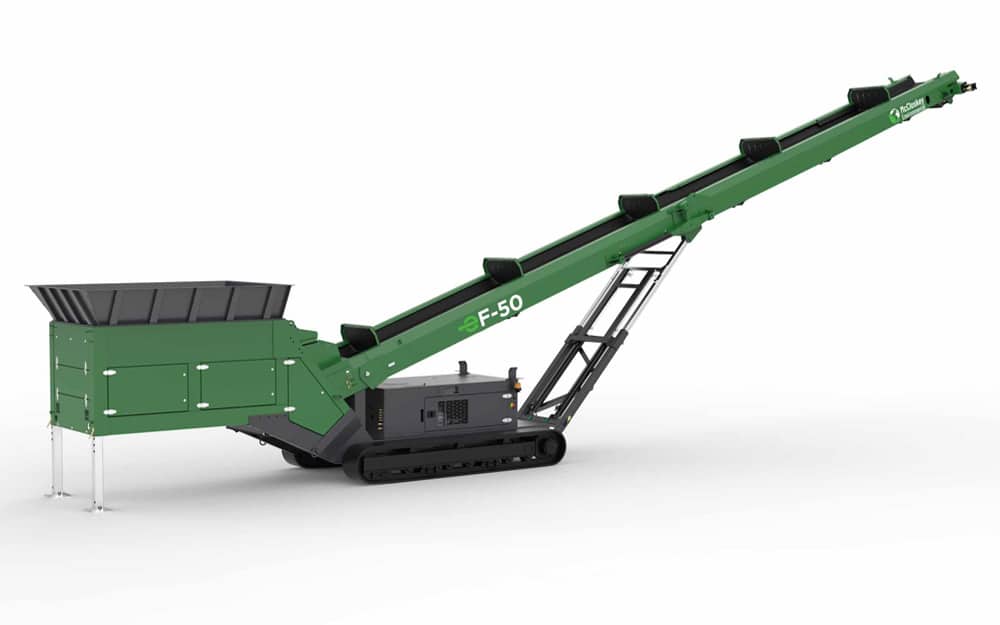

McCloskey Environmental EF-50 Feeder Stacker

Max Capacity

Up to 550 TPH

Conveyor Length

15.24m (50ft)

Hopper Capacity

6m³ (8 yd³)

The Tracked Feeder Stacker efficiently transfers material with a large hopper and a 50ft conveyor, reducing loader use and improving site efficiency.

High-Capacity Mobile Feeder Stacker

The Tracked Feeder Stacker is designed to eliminate double handling by allowing direct feeding and stockpiling. Featuring a heavy-duty 40in wide, 50ft long conveyor, it handles up to 550 TPH of material. The hydraulically adjustable discharge height and folding conveyor enable fast setup and transport, while the fully tracked system ensures stability on-site. Ideal for quarrying, aggregates, and material transfer applications.

McCloskey Environmental EF-50 Feeder Stacker Specifications

Max Capacity	Up to 550 TPH
Conveyor Length	15.24m (50ft)
Belt Width	1,000mm (40in)
Hopper Capacity	6m³ (8 yd³)
Engine Power	55kW (74HP) CAT 2.8
Transport Length	11.98m (39’ 4”)
Transport Width	2.3m (7’ 6”)
Transport Height	2.6m (8’ 5”)
Working Height	6.5m (21’ 3”)
Stockpile Height	6.5m (21’ 3”)
Mobility	Tracked
Hydraulic Folding Conveyor	Yes

Warranty: MIMICO offers warranty on all material processing equipment, with dynamic options to suit your needs. We also have servicing packages to keep your plants running smoothly. Get in touch with our sales support team to find the right solution for you.

High Capacity

Handles up to 550 TPH

Large Hopper

6m³ capacity with extension options

Compact Transport

Fits inside a 40ft container

Fast Setup

Hydraulic folding for quick mobilisation

Tracked Mobility

3.5m wide tracks for stability

Adjustable Discharge

Hydraulically adjustable up to 6.5m

Horokiwi Quarries Ltd – 50m Conveyor Replacement.

New Conveyor Installed with Minimal Downtime

Horokiwi Quarries engaged MIMICO Engineering to design, manufacture, and install a new 50-metre transfer conveyor to replace an ageing system. The installation was completed over a weekend to minimise disruption, with the new conveyor custom-designed to integrate seamlessly into the existing plant layout.
