CASE 821g Front End Wheeler Loader

Heavy Wheel Loader

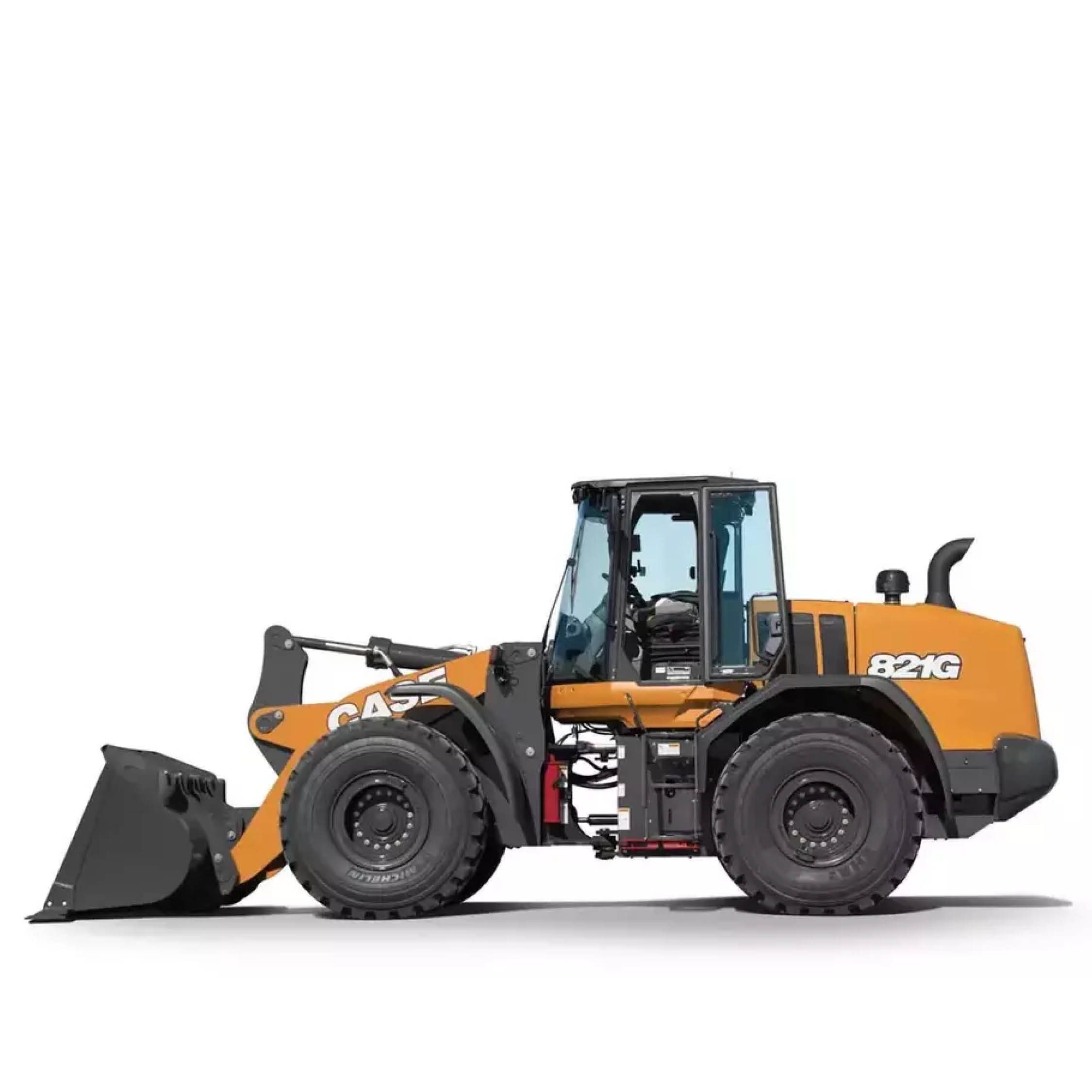

CASE 821G Front-End Wheel Loader

Operating Weight

18,329 kgs

Engine Power

230 hp / 172 kW

Bucket Capacity

3.4 m³
For bulk earthmoving and aggregate handling, the CASE 821G stands out with exceptional breakout force and superior tipping load. The heavy-duty ZF axles and powerful hydraulics deliver unmatched material retention, making it a go-to machine for demanding industries such as quarrying, civil construction, and large-scale infrastructure.

Built for Tough Earthmoving

The CASE 821G is built for large-scale earthmoving and bulk handling, offering 230 hp of raw power and a 3.4m³ bucket capacity. Its cube-cooling system ensures optimal engine performance, even in extreme conditions. A 5-speed transmission with intelligent clutch cut-off provides seamless operation and fuel efficiency. The integrated payload scale allows for precise load tracking, while the heavy-duty ZF axles deliver superior tractive effort. Designed to withstand New Zealand’s diverse landscapes, the 821G ensures maximum uptime, productivity, and operator comfort.

CASE 821G Front-End Wheel Loader Specifications

Operating Weight18,329 kg
Engine Power230 hp / 172 kW
Bucket Capacity3.4 m³
Breakout Force14,752 daN
Hydraulic Flow (Standard)236 lpm @ 2000 rpm
Max Travel Speed37 km/h
Tipping Load (Full Turn)12,780 kg
Dump Height @ 45°2.93 m
Hinge Pin Height4.12 m
Turning Radius6.03 m
Fuel Tank Capacity288 L

Warranty: 16 months / 2,000 hours or Extended Up to 5 years / 10,000 hours

Maximum Breakout Force

The 821G’s industry-leading 14,749 daN breakout force makes quick work of the toughest materials.

Heavy-Duty Axles

Heavy-duty ZF axles with 100% locking differentials provide superior traction and reduced wheel slippage.

Fingertip Hydraulic Control

Electro-hydraulic joystick delivers pinpoint control over lift and tilt functions with minimal input.

Superior Tipping Load

With a full-turn tipping load of 12,780 kg, the 821G can handle heavy pallets and bulk materials effortlessly.

Premium Cab Insulation

Noise and vibration isolation keep the cab environment comfortable, reducing operator fatigue.

Precision Steering

40-degree articulated steering enables precise maneuvering in confined spaces.
