dynapac Pavers.

Achieve flawless paving results with Dynapac asphalt pavers, engineered for precision, productivity, and reliability in demanding New Zealand construction environments.

Dynapac Pavers

Unmatched Precision & Performance.

Dynapac asphalt pavers are built to deliver high-quality results with maximum efficiency and reliability. Whether you’re paving city roads, bicycle paths, or highways, Dynapac pavers combine cutting-edge screed technology, intuitive operation, and robust material handling systems to ensure smooth paving operations and outstanding surfaces.

A paver for every job

The full dynapac pavers line-up.

finance that works for you.

Get the gear you need fast with finance options that fit your business. Whether it’s for a new project or expanding your fleet, we’ve got flexible solutions to help you get started quickly.

Key Features

more about dynapac pavers.

Unique
Dynapac Screed.

Hydraulically extendable screed ensures high pre-compaction, smooth surfaces, and a stable paving process, even with thick layers.

Powerful
Engine Options.

Reliable Deutz engines (up to 55 kW) with Tier 3 and Stage V compliance provide efficient power for all paving jobs.

Advanced
Material Flow.

320mm augers and wide conveyors minimise segregation while delivering smooth material flow across working widths of up to 3.5m.

Ergonomic
Controls.

Intuitive dashboards and optional remote control (RC360) ensure simple operation and jobsite confidence, even in challenging conditions.

Versatile
Applications.

Compact dimensions allow paving in tight spaces like sidewalks and bicycle paths, with adjustable screeds for customised widths.

Remote
Paver Operation.

RC360 remote control enhances operator safety and positioning while reducing exposure to asphalt fumes.

High
Hopper Capacity.

Large material hoppers (up to 5 tons) with adjustable wings ensure continuous paving in challenging situations.

Efficient
Cleaning Systems.

Integrated emulsion spray systems and easy-to-access components make maintenance and cleaning straightforward.

Robust
Durability.

Wear-resistant components, such as Hardox screed plates, and simplified service access ensure long-term reliability and uptime.

Eco-Friendly
Performance.

Gas or electric screed heating options ensure compliance with low-emission regulations, reducing fuel consumption and environmental impact.

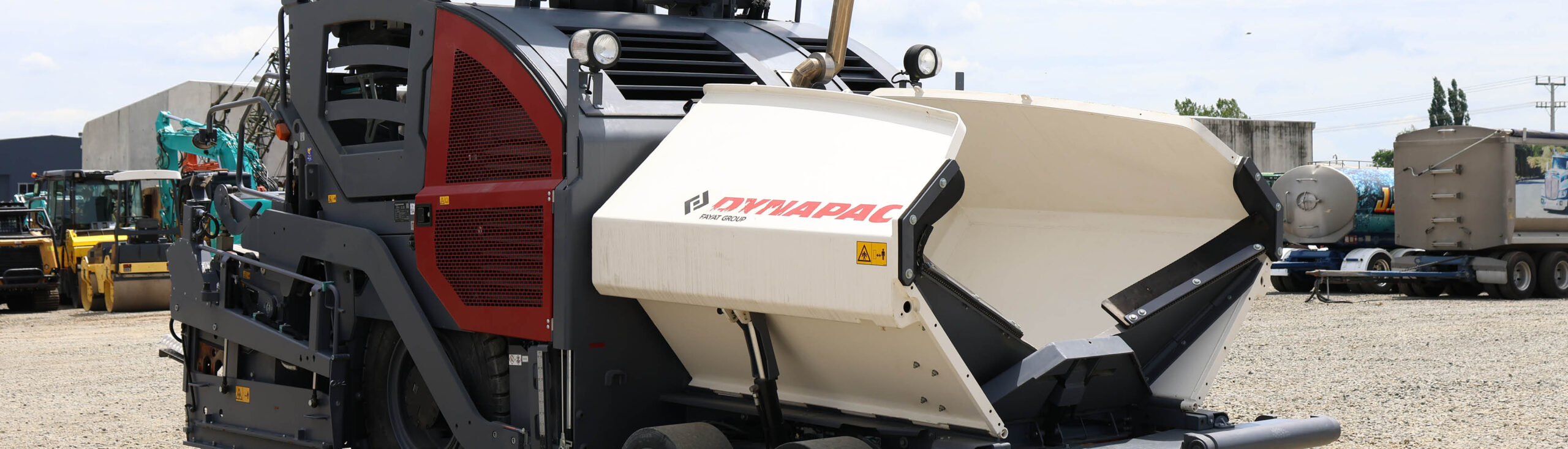

Dynapac pavers construction equipment mimico nz feature

need answers?

Frequently Asked Questions.

What is the maximum paving width and thickness for Dynapac pavers?

Dynapac pavers offer a maximum paving width of up to 14 metres (with the SD Series rigid screeds) and a maximum paving thickness of 360 mm. Compact models, like the F1250CS, provide a paving width starting from 1.2 metres and are adjustable for smaller, intricate jobs.

Dynapac pavers are powered by Deutz engines ranging from 54 kW to 194 kW (depending on the model). They meet Tier 3 or Stage V emission standards, ensuring efficient performance and compliance with stringent environmental regulations.

Dynapac screeds are available with:

  • Gas heating: Rapid heating and energy efficiency, ideal for high-capacity operations.
  • Electric heating: Provides consistent temperature control, perfect for jobsites with strict safety regulations. Both options ensure uniform heat distribution across the screed.

Compact models, like the F1250CS, have a transport width of 1.44 m and an operating length of 4.78 m, making them easy to move between sites. Larger models, like the SD Series, include hydraulic roof-lifting systems and foldable components to reduce transport dimensions.

How do Dynapac pavers minimise material segregation?

Dynapac pavers feature 320 mm augers, a wide conveyor tunnel, and ultrasonic sensors that ensure a consistent material flow and minimise segregation. The smooth material distribution system supports laying up to 350 tonnes/hour without compromising surface quality.

The tracked pavers (e.g., F1250CS) feature hydrostatic drive systems and adjustable screeds, allowing precise handling on slopes up to 14°. The grease-tensioned tracks ensure stability and consistent performance on uneven terrain.

Compact models, like the Dynapac F1250CS, are equipped with hydraulically adjustable screeds (down to 0.5 m width) and have a compact footprint of 1.44 m in basic width, making them perfect for bike paths, sidewalks, and trench paving.

Dynapac pavers have hoppers capable of holding up to 14 tonnes (depending on the model), with foldable wings and front flaps to prevent spillage. The large buffer capacity supports continuous paving even in challenging material supply conditions.

What features make Dynapac pavers operator-friendly?

Dynapac pavers include:

  • RC360 Remote Control: Allows safe operation up to 10 metres away.
  • Ergonomic dashboards: Intuitive toggle switches and grouped functions for easy use.
  • Slidable operator platforms: Extendable platforms for better visibility and comfort.
  • Low noise levels: Noise emissions capped at 104 dB(A) to reduce operator fatigue.

The RC360 Remote Control allows the operator to maintain a safe distance from the paver, keeping clear of asphalt fumes and hot materials. Additionally, the paver automatically stops if the operator exceeds a 10-metre distance or tilts the remote beyond 45°, ensuring maximum safety.

What advanced technology is included in Dynapac pavers to improve job efficiency?

Dynapac pavers are equipped with:

  • PaveManager 2.0: A CAN-based control system with automated paving parameters, material flow control, and real-time feedback.
  • Dyn@Link telematics: Monitors machine performance, location, and maintenance schedules remotely.
  • SetAssist: Allows automatic restoration of previous paving settings, reducing downtime.
  • MatManager and MatWiser: Document material usage and paving progress for optimal planning.

Dynapac Pavers maintenance is simplified with:

  • Integrated emulsion spray systems (10L tanks).
  • Quick-access service points for hydraulic components, filters, and cooling systems.
  • Cleaning modes for conveyor, auger, and screed, which reduce cleaning time significantly.
