HRC Crusher

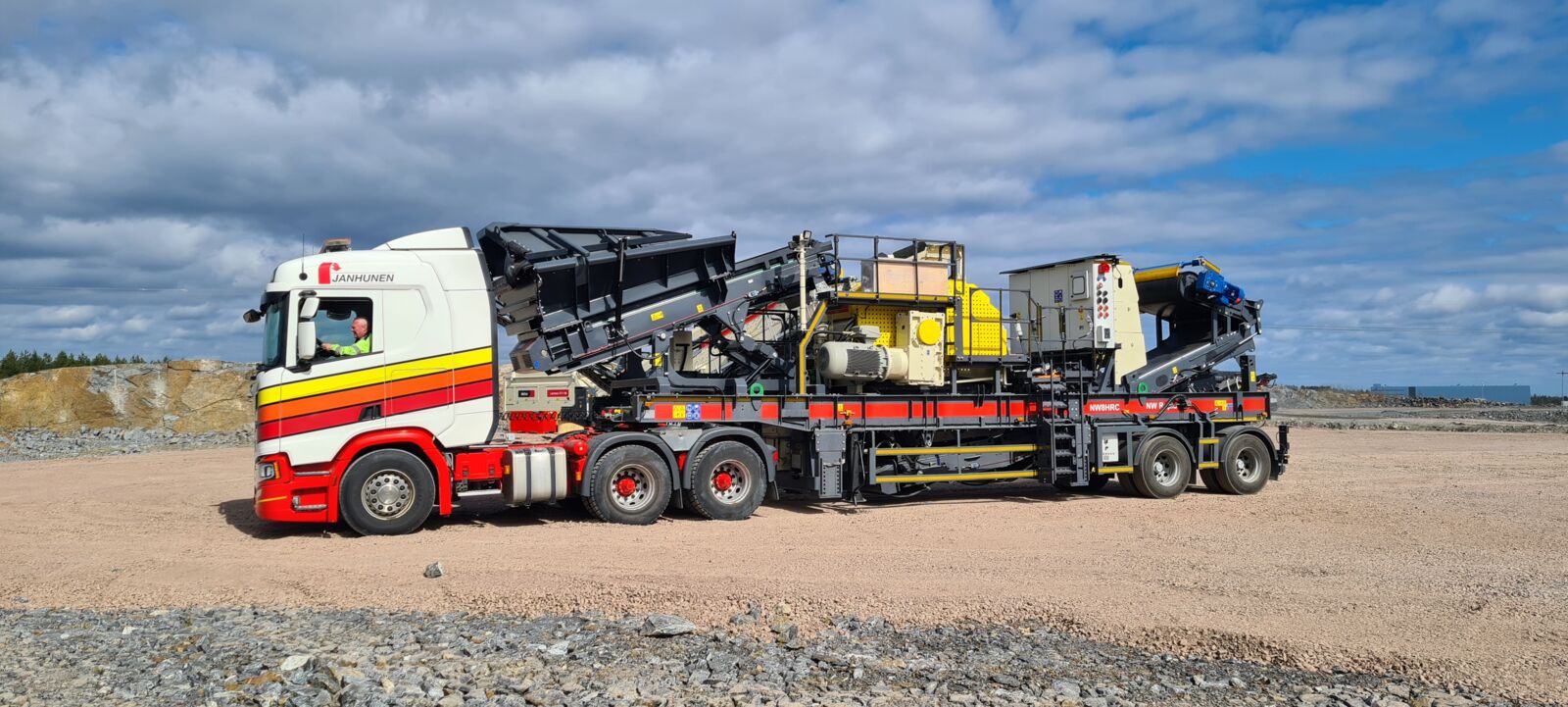

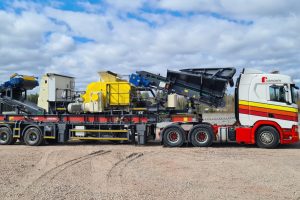

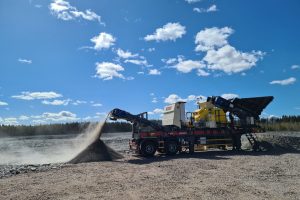

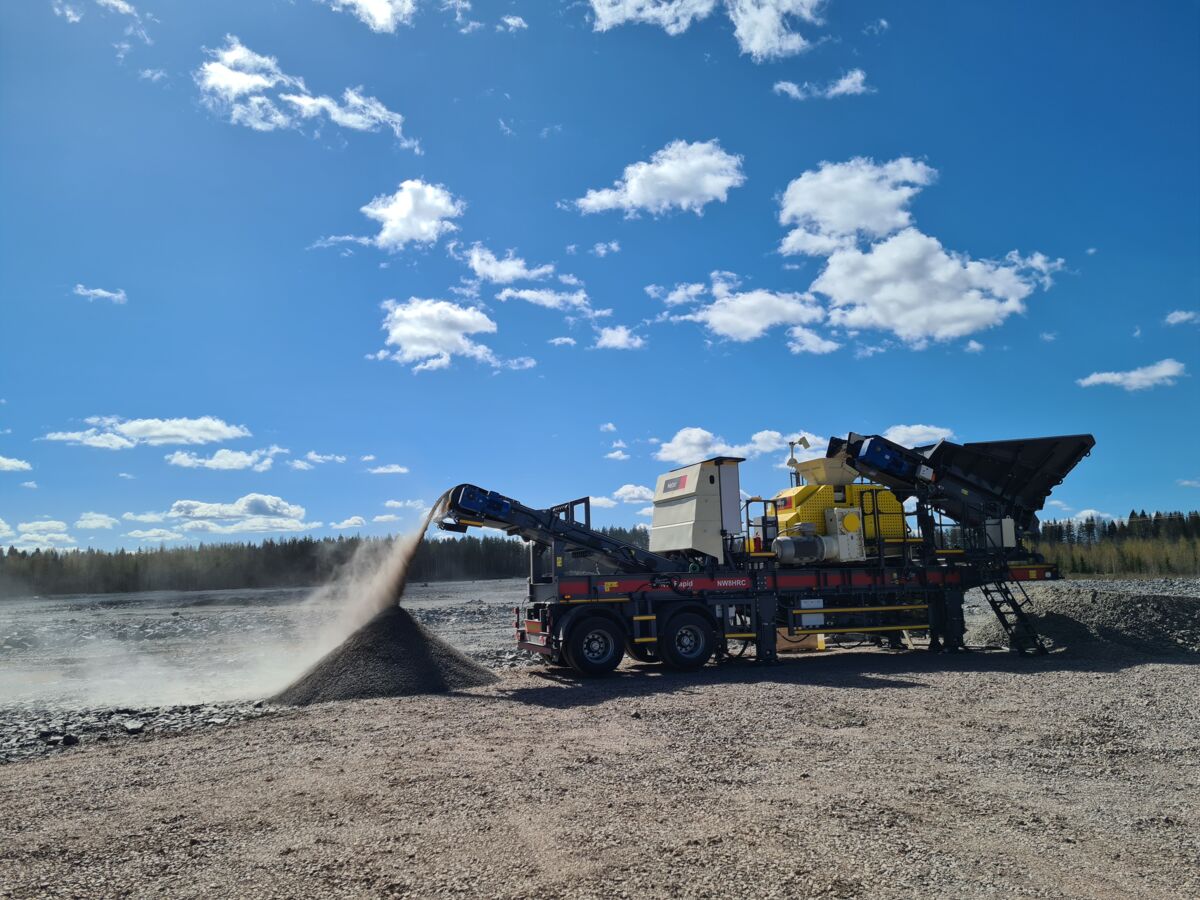

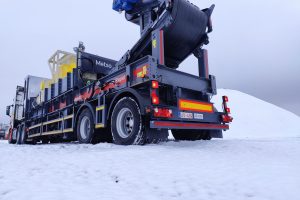

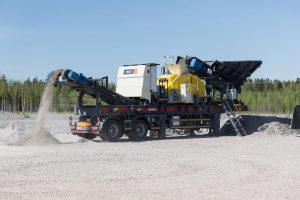

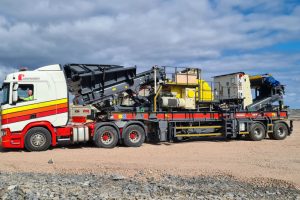

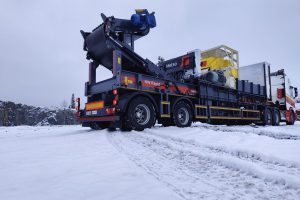

Nordwheeler NW8HRC Mobile HRC Crusher

Crusher Type

Metso HRC8 HPGR

Motor Power

2 x 75 kW

Transport Weight

30,250 kg

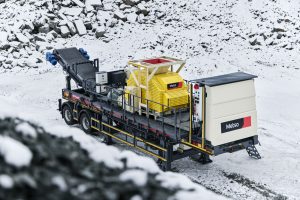

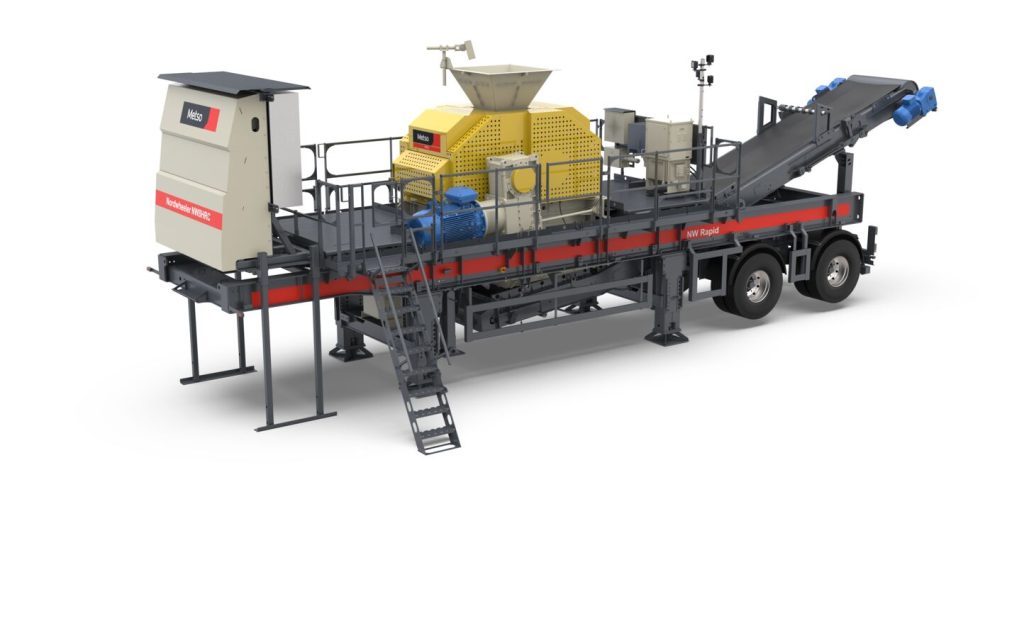

Compact NW8HRC unit with Metso HRC8 roll crusher. Designed for energy-efficient, high-pressure crushing of abrasive materials.

30T High Pressure Grinding Roll Unit with HRC8

The NW8HRC features the Metso HRC8 high-pressure grinding roll (HPGR) crusher, ideal for tough ore and aggregate applications. Fully electric and mobile, this unit is compact and built for in-pit or site-to-site operation with integrated Metso IC™ process control.

Nordwheeler NW8HRC Mobile HRC Crusher Specifications

Crusher Model	Metso HRC8
Max Feed Size (mm)	32
CSS Range (mm)	10–45
Motor Power (kW)	2 x 75
Transport Length (mm)	11592
Transport Width (mm)	2540
Transport Height (mm)	3990
Transport Weight (kg)	30250
Bogie Weight (kg)	17600
King Pin Weight (kg)	12650

Warranty: MIMICO offers warranty on all material processing equipment, with dynamic options to suit your needs. We also have servicing packages to keep your plants running smoothly. Get in touch with our sales support team to find the right solution for you.

Crusher Unit

Metso HRC8 high-pressure grinding roll

Drive Power

Dual 75 kW motors for efficient crushing

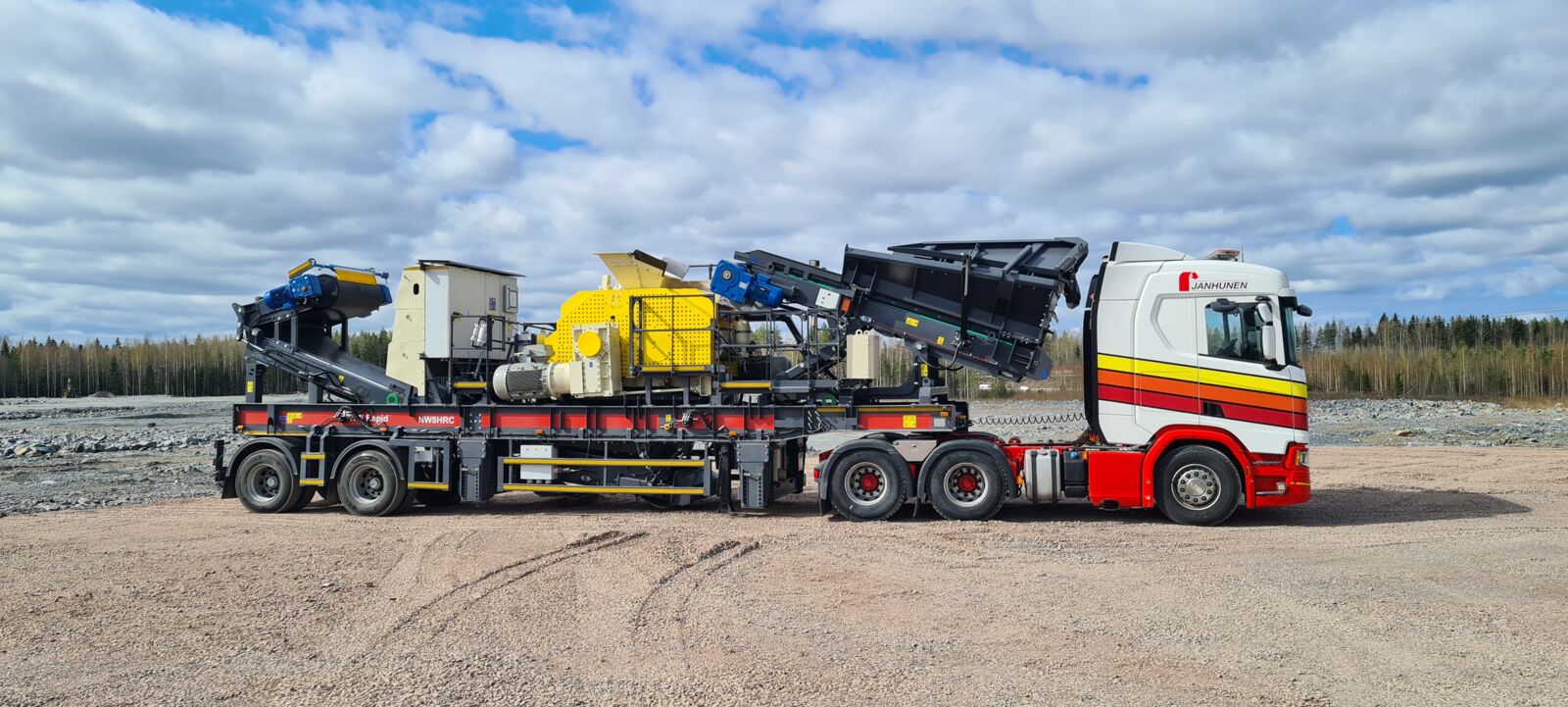

Transport Setup

Compact 2-axle bogie chassis

Automation

Integrated Metso IC™ process control

Application

Tough aggregate and ore reduction

Flexibility

Mobile setup for in-pit or site transfer

Our team is working on new customer success stories! Check back soon for real-world insights on this product.
