Metso Nordwheeler NW300GP Cone Crusher Clearcut MIMICO NZ (1)

Cone Crusher

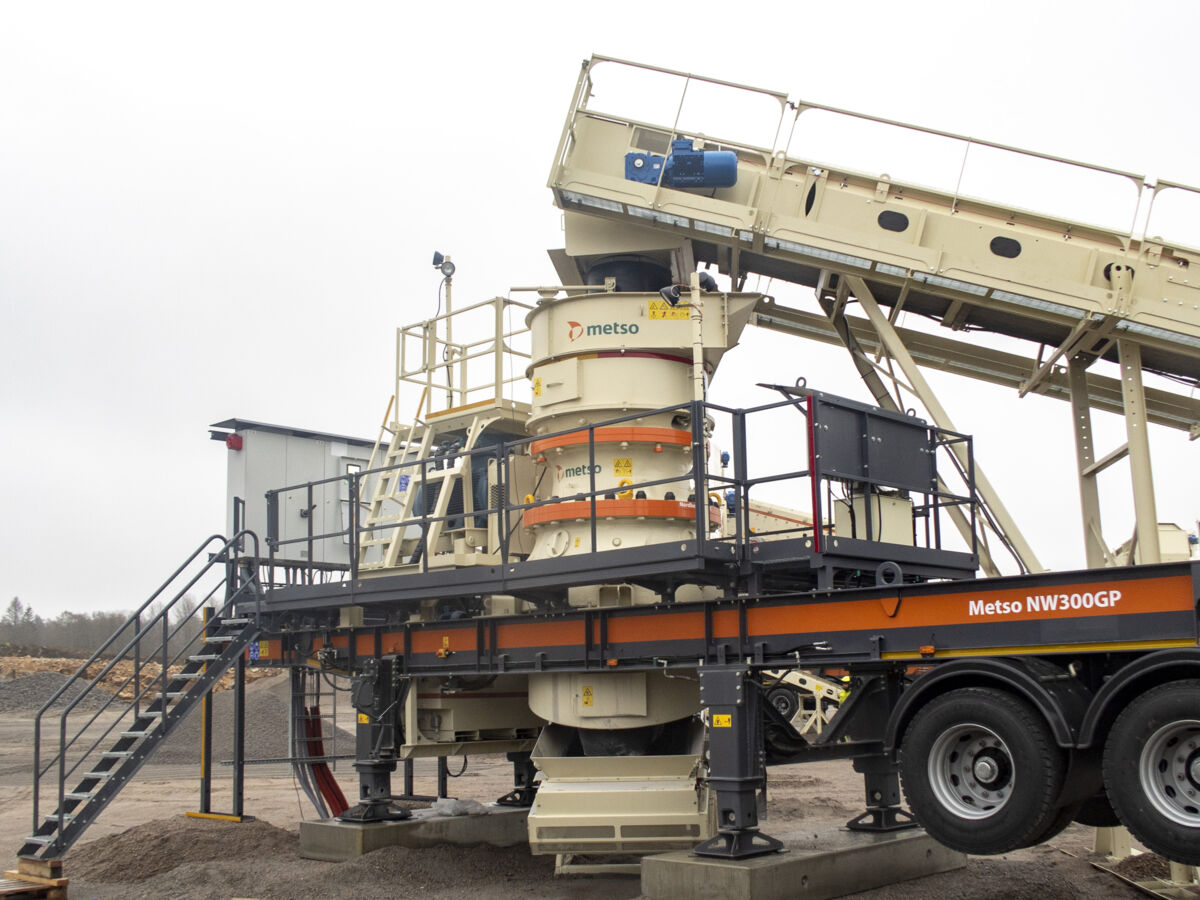

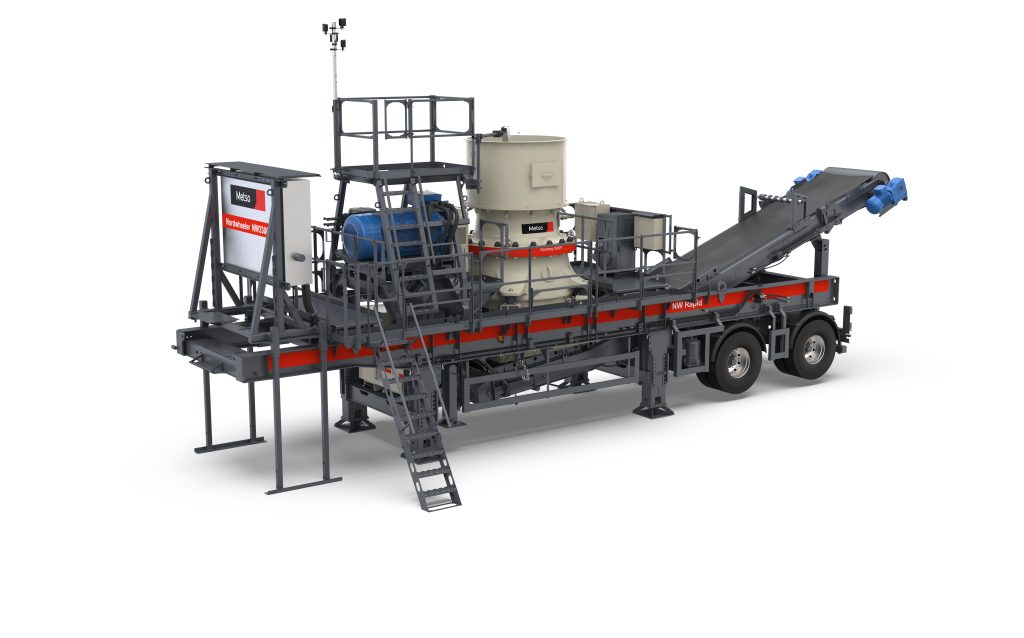

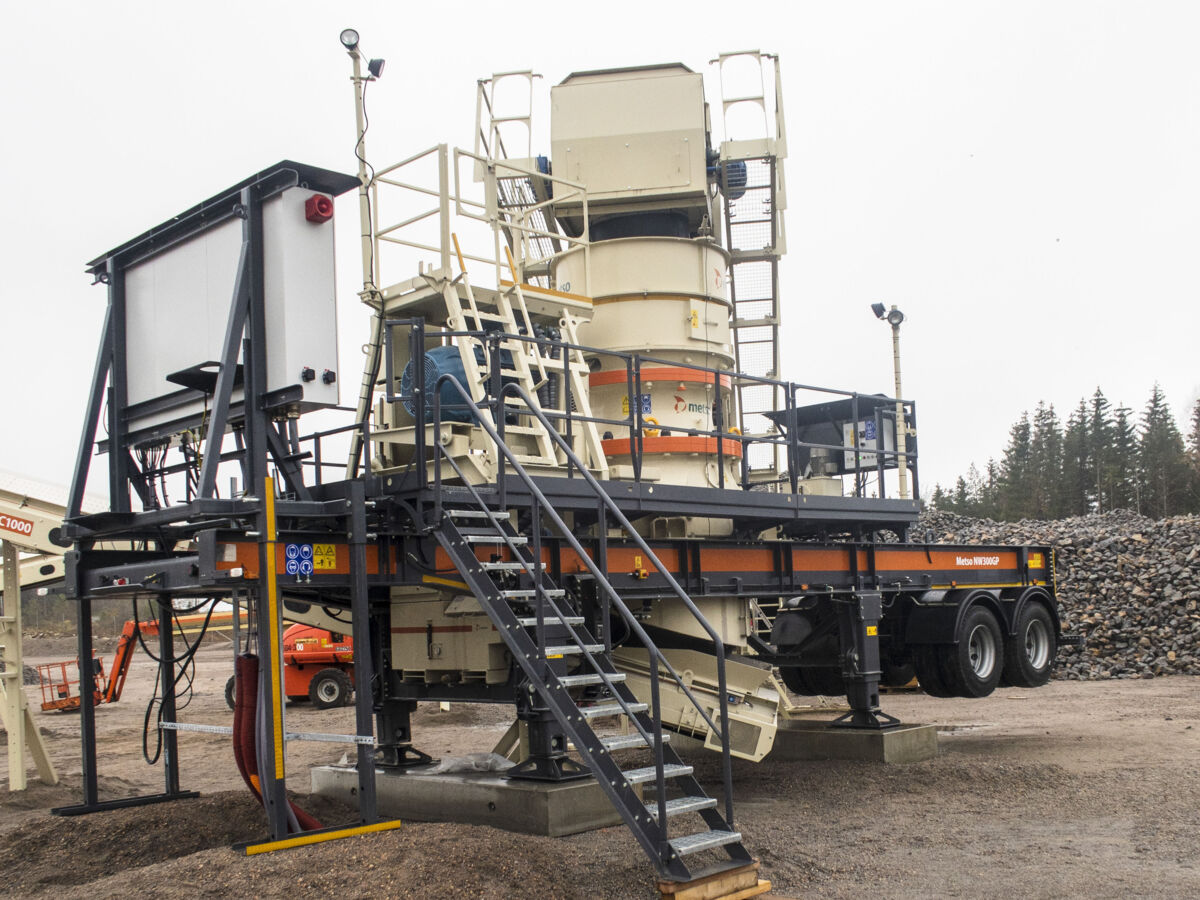

Nordwheeler NW300GP Mobile Cone Crusher

Crusher Unit

Nordberg® GP300S

Motor Power

250 kW

Transport Weight

35,718 kg
Mobile cone crusher fitted with Nordberg® GP300S. Standalone secondary crushing for high-volume plants.
View Brochure
Call Sales Support
Metso Nordwheeler NW300GP Portable Cone Crusher MIMICO NZ (4)
Metso Nordwheeler NW300GP Portable Cone Crusher MIMICO NZ (5)
Metso Nordwheeler NW300GP Portable Cone Crusher MIMICO NZ (4)
Metso Nordwheeler NW300GP Portable Cone Crusher MIMICO NZ (3)
Metso Nordwheeler NW300GP Portable Cone Crusher MIMICO NZ (2)

36T Unit with GP300S Crusher, No Screen

The NW300GP is a mobile cone unit featuring the Nordberg® GP300S cone crusher. Designed without an integrated screen, it’s a compact, powerful solution for secondary crushing where existing screening is in place or modular flows are used.

Nordwheeler NW300GP Mobile Cone Crusher Specifications

Crusher ModelNordberg GP300S
Max Feed Size (mm)320
CSS Range (mm)28–53
Motor Power (kW)250
Transport Length (mm)11592
Transport Width (mm)2530
Transport Height (mm)3990
Transport Weight (kg)35718
Bogie Weight (kg)19947
King Pin Weight (kg)15771

Warranty: MIMICO offers warranty on all material processing equipment, with dynamic options to suit your needs. We also have servicing packages to keep your plants running smoothly. Get in touch with our sales support team to find the right solution for you.

Download Spec Sheet

Crusher Type

GP300S cone crusher for powerful secondary applications

Drive Power

250 kW electric drive

Transport Setup

2-axle bogie for road legal transport

Flexibility

No screen allows integration into custom layouts

Automation

Includes Metso IC™ process control

Application

Ideal for modular plants or standalone crushing
Our team is working on new customer success stories! Check back soon for real-world insights on this product.
