Cone Crusher

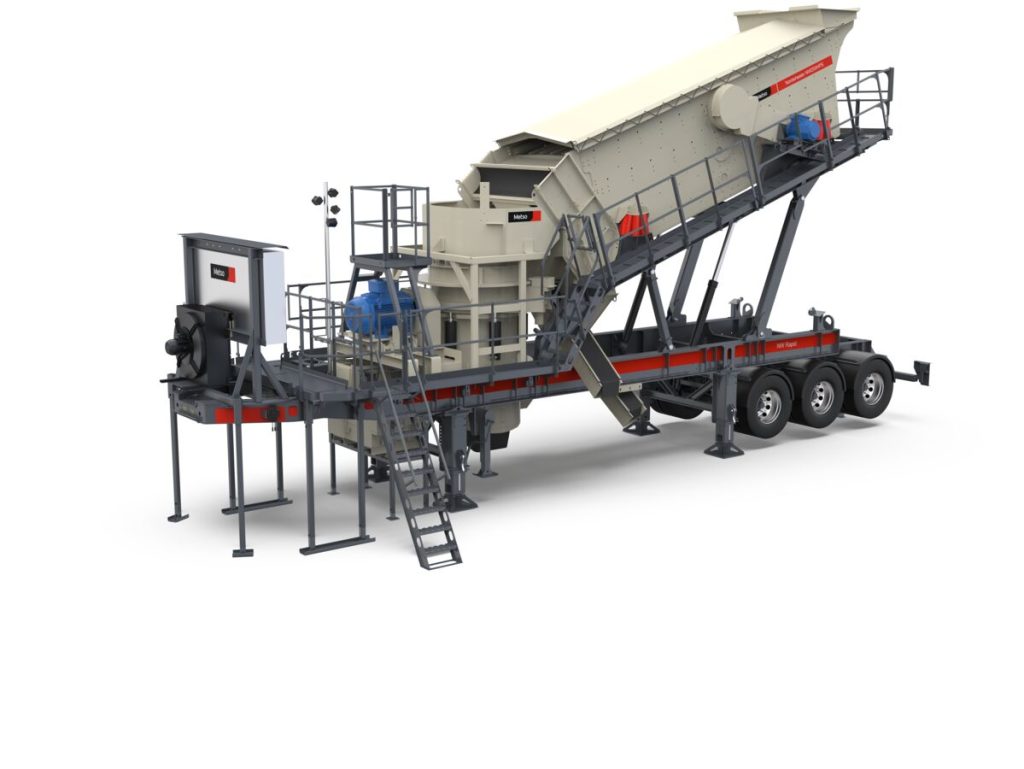

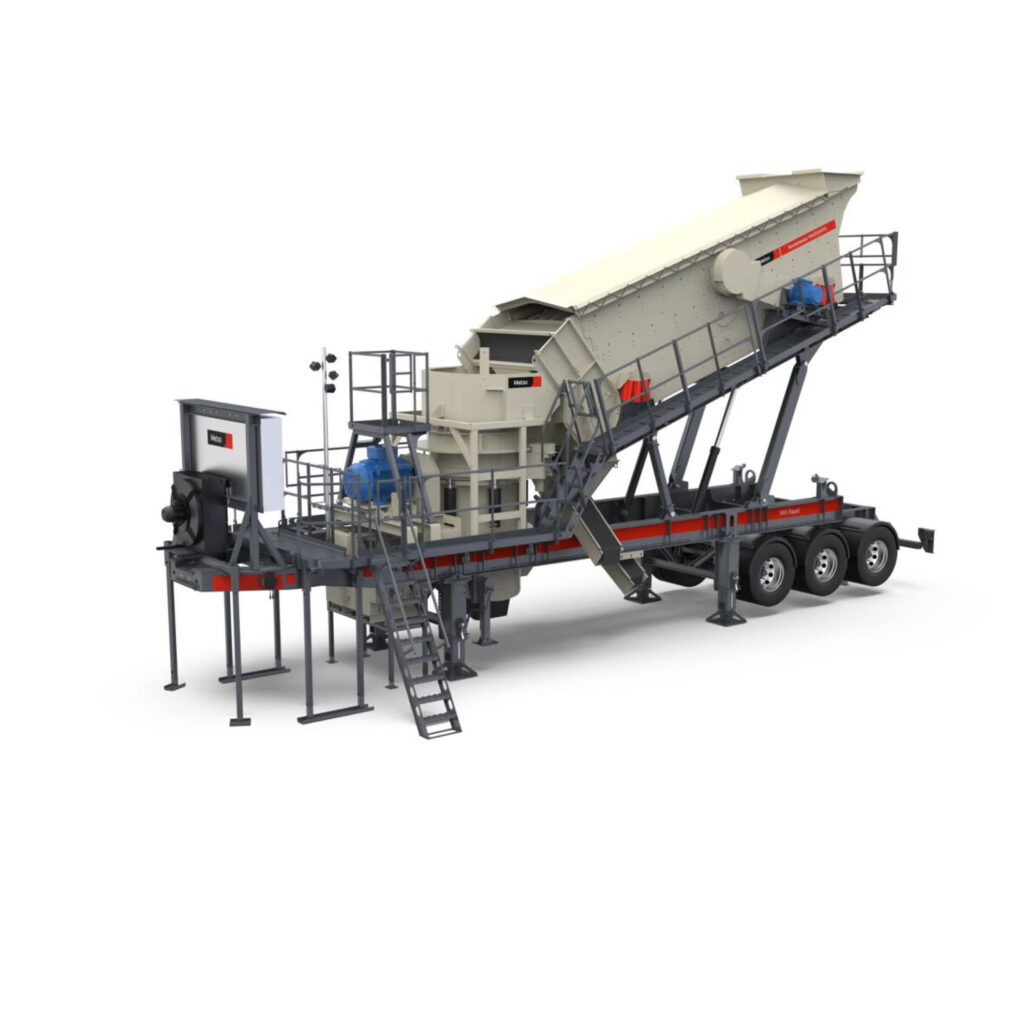

Nordwheeler NW200HPS Mobile Cone Crusher

Crusher Unit

Nordberg® HP200

Screen Model

DS1855-4

Motor Power

132 kW

Portable cone crusher with integrated screen, fitted with Nordberg® HP200 and DS1855-4 for calibrated end products up to 250 mtph.

36T Cone Plant with Screen and HP200 Crusher

The NW200HPS mobile cone crusher combines the efficient Nordberg® HP200 cone crusher with a four-deck DS1855-4 screen. Built for mobility and high-precision output, this electric-driven unit can produce up to 250 mtph. It’s ideal for contractors needing multiple end products from a compact, road-towable package with Metso IC™ process automation.

Nordwheeler NW200HPS Mobile Cone Crusher Specifications

Crusher Model	Nordberg HP200™
Max Feed Size (mm)	135
CSS Range (mm)	8–35
Motor Power (kW)	132
Screen Model	DS1855-4
Screen Size (mm)	5500 x 1800
Screen Power (kW)	15
Transport Length (mm)	13738
Transport Width (mm)	3029
Transport Height (mm)	4504
Transport Weight (kg)	36200
Bogie Weight (kg)	22300

Warranty: MIMICO offers warranty on all material processing equipment, with dynamic options to suit your needs. We also have servicing packages to keep your plants running smoothly. Get in touch with our sales support team to find the right solution for you.

Crusher Type

Nordberg® HP200 cone for secondary/tertiary reduction

Screening Unit

Integrated DS1855-4 screen for multiple calibrated products

Transport Setup

2-axle bogie with road-legal width for mobility

Drive Power

Electric motor with 132 kW rating

Automation

Metso IC™ system with remote and onboard control options

Application

Ideal for civil works and multi-product aggregate sites
