Impact Crusher

Nordwheeler NW1213 Mobile Impact Crusher

Feed Opening

1,300 x 900 mm

Motor Power

220 kW

Transport Weight

39,000 kg

Portable impact crusher featuring the Nordberg® NP1213M unit. Built for efficient primary reduction in roadworks, aggregates, and recycling.

39T Unit with 1,300 mm Feed and 220 kW Drive

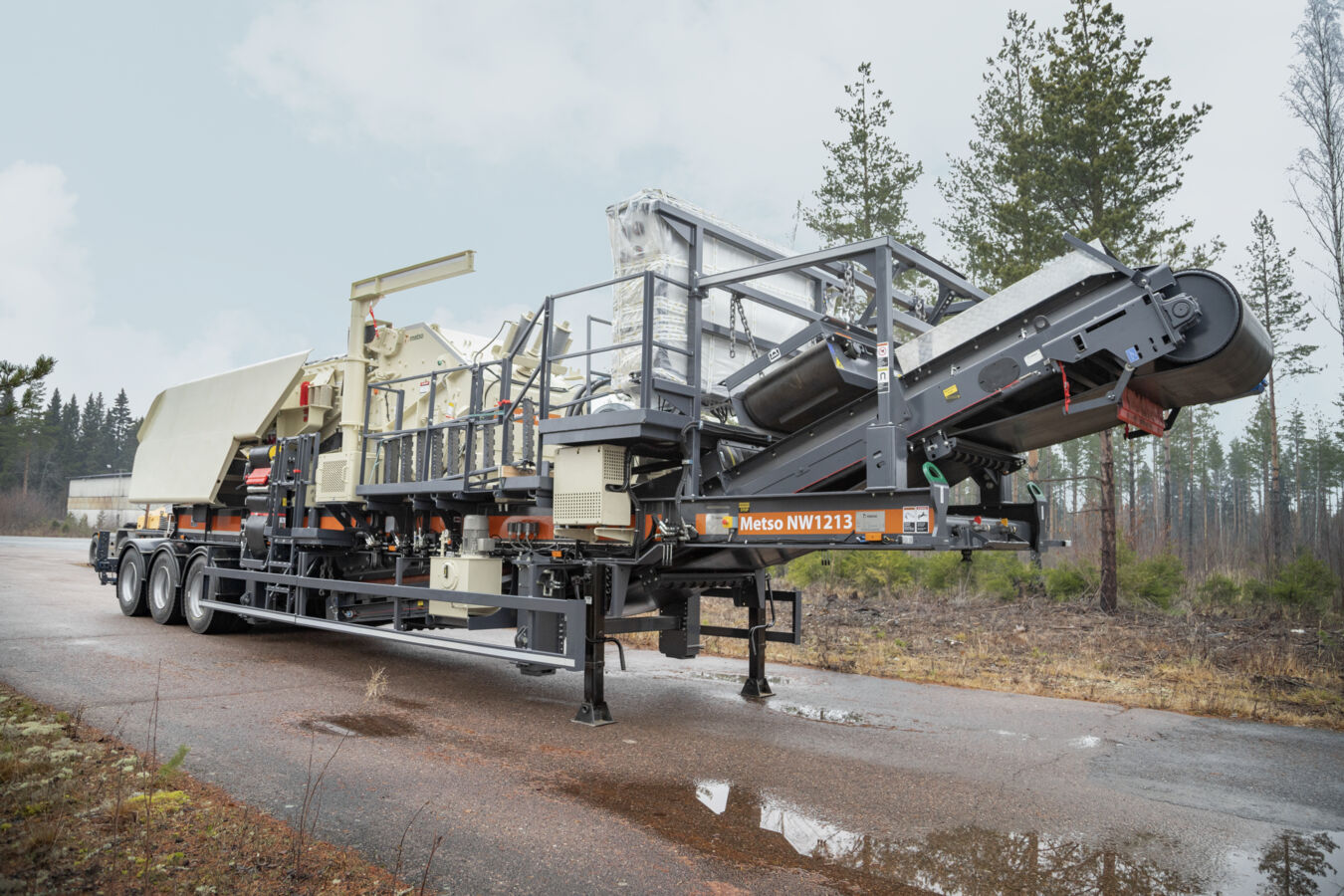

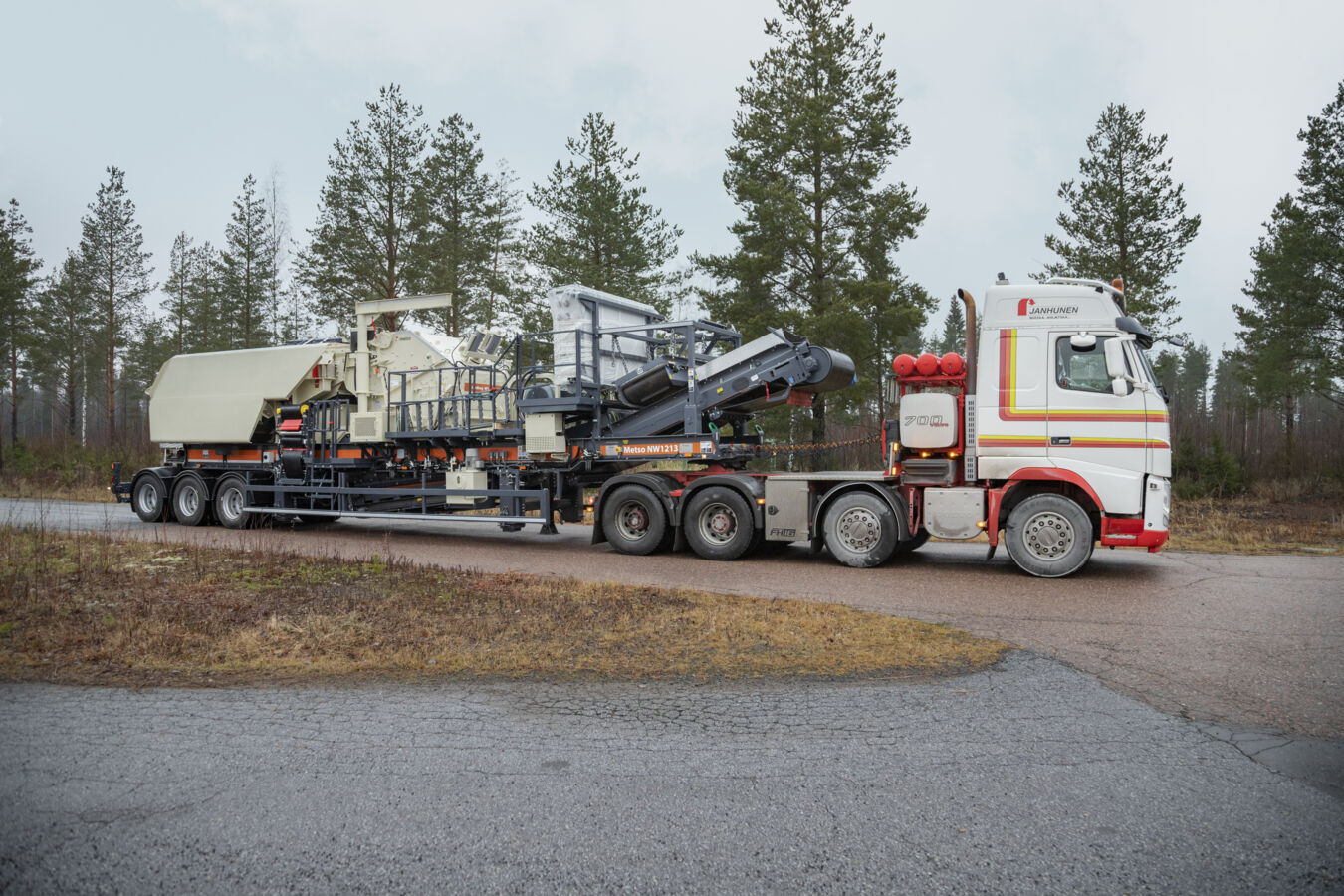

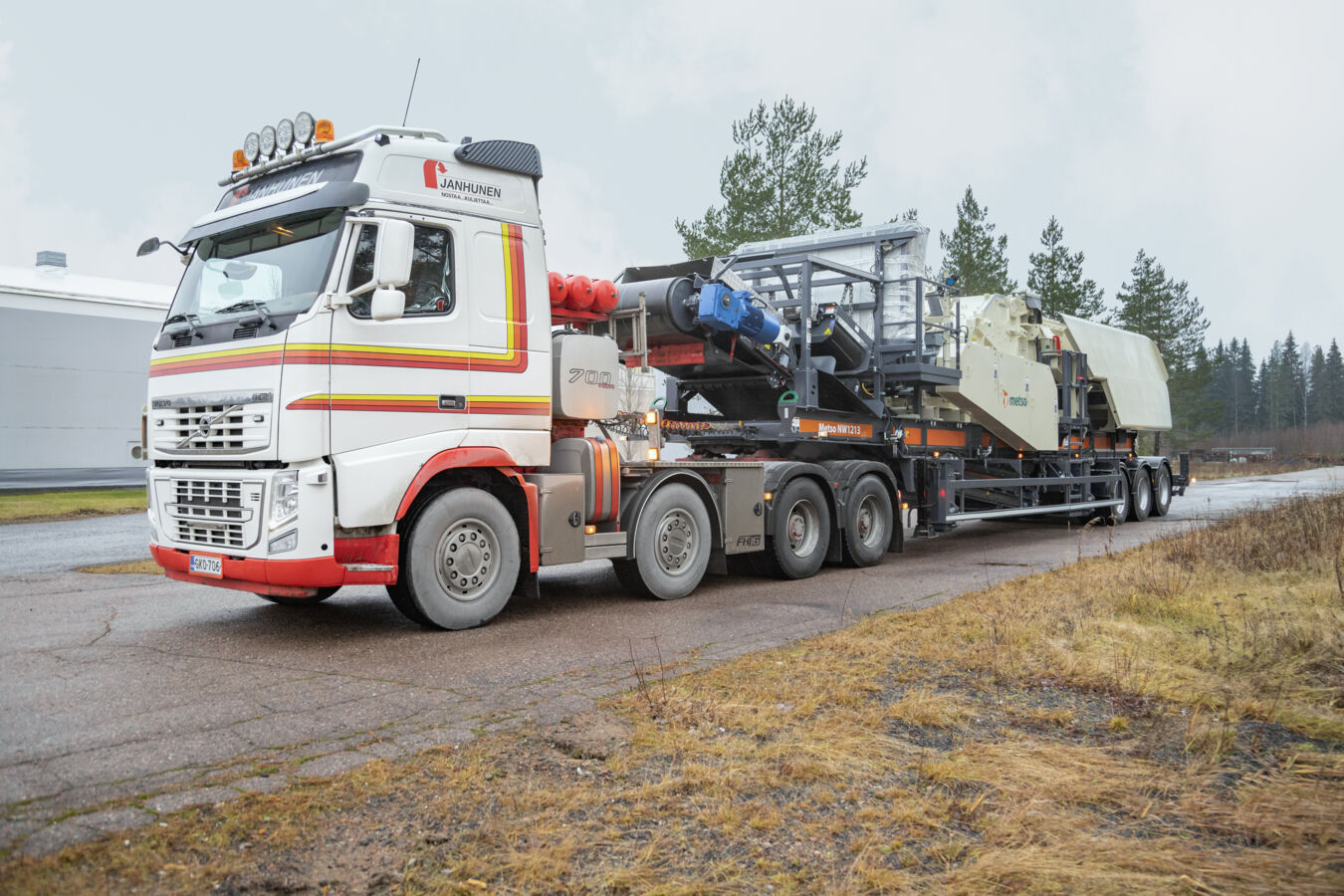

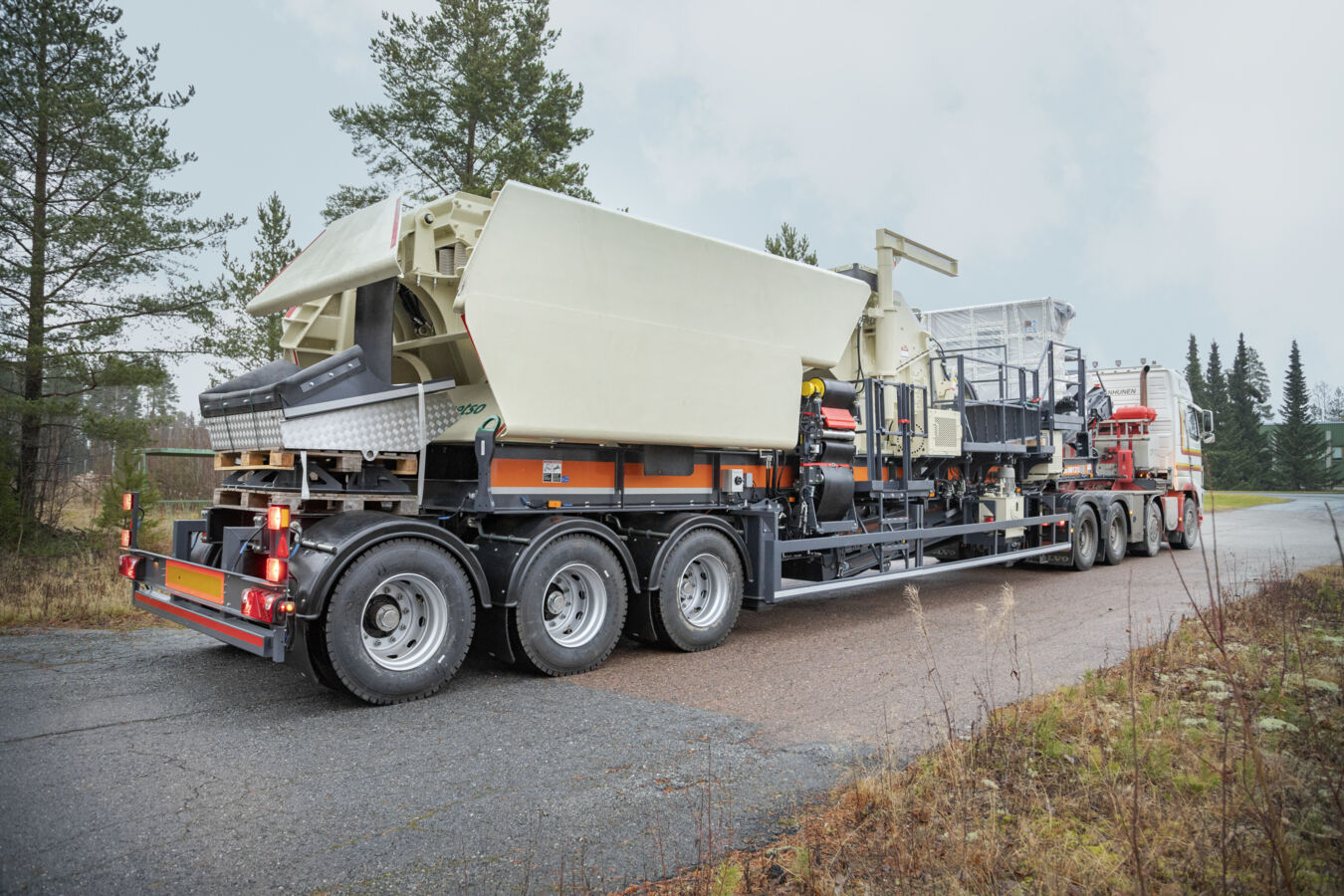

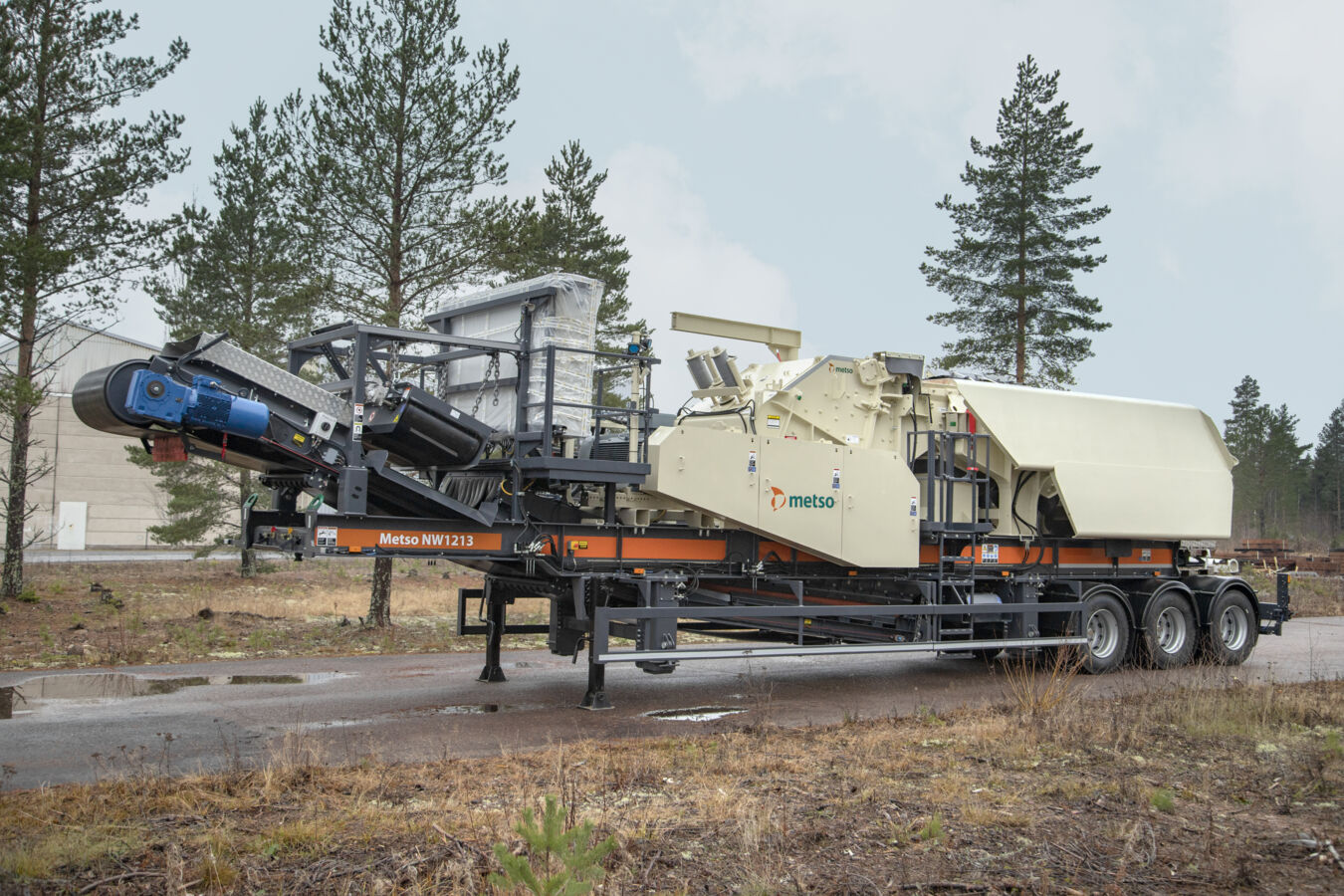

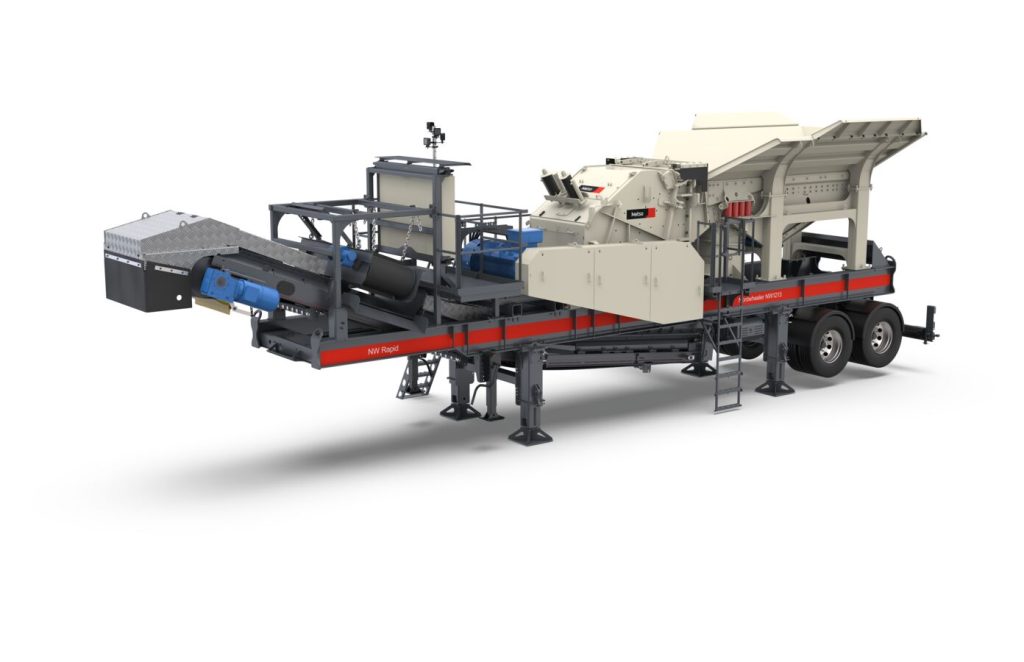

The NW1213 mobile impact crusher is equipped with the Nordberg® NP1213M horizontal shaft impactor, ideal for primary crushing of soft to medium-hard material. It delivers a 1,300 x 900 mm feed opening and a powerful 220 kW motor. With electric drive, integrated Metso IC™ automation, and a compact transport profile, this unit suits civil works, aggregates production, and recycled material processing.

Nordwheeler NW1213 Mobile Impact Crusher Specifications

Impactor Model	Nordberg NP1213M
Feed Opening (mm)	1300 x 900
Setting Range (mm)	20–80
Motor Power (kW)	220
Transport Length (mm)	14193
Transport Width (mm)	2990
Transport Height (mm)	4113 / 4303
Transport Weight (kg)	39000 / 40000
Bogie Weight (kg)	22000 / 23000
King Pin Weight (kg)	21500 / 21000
Feeder Model	TK11-42-2V
Feeder Length (mm)	4200

Warranty: MIMICO offers warranty on all material processing equipment, with dynamic options to suit your needs. We also have servicing packages to keep your plants running smoothly. Get in touch with our sales support team to find the right solution for you.

Impactor Unit

Fitted with Nordberg® NP1213M HSI for primary reduction

Feed Capacity

Handles up to 1,300 mm wide material for high-volume work

Transport Setup

Road-mobile chassis with legal width and quick setup

Automation

Includes Metso IC™ control for safe, efficient operation

Drive Power

Electric motor rated at 220 kW for continuous output

Applications

Designed for aggregates, roadworks, and recycling sites

Our team is working on new customer success stories! Check back soon for real-world insights on this product.
