Jaw Crusher

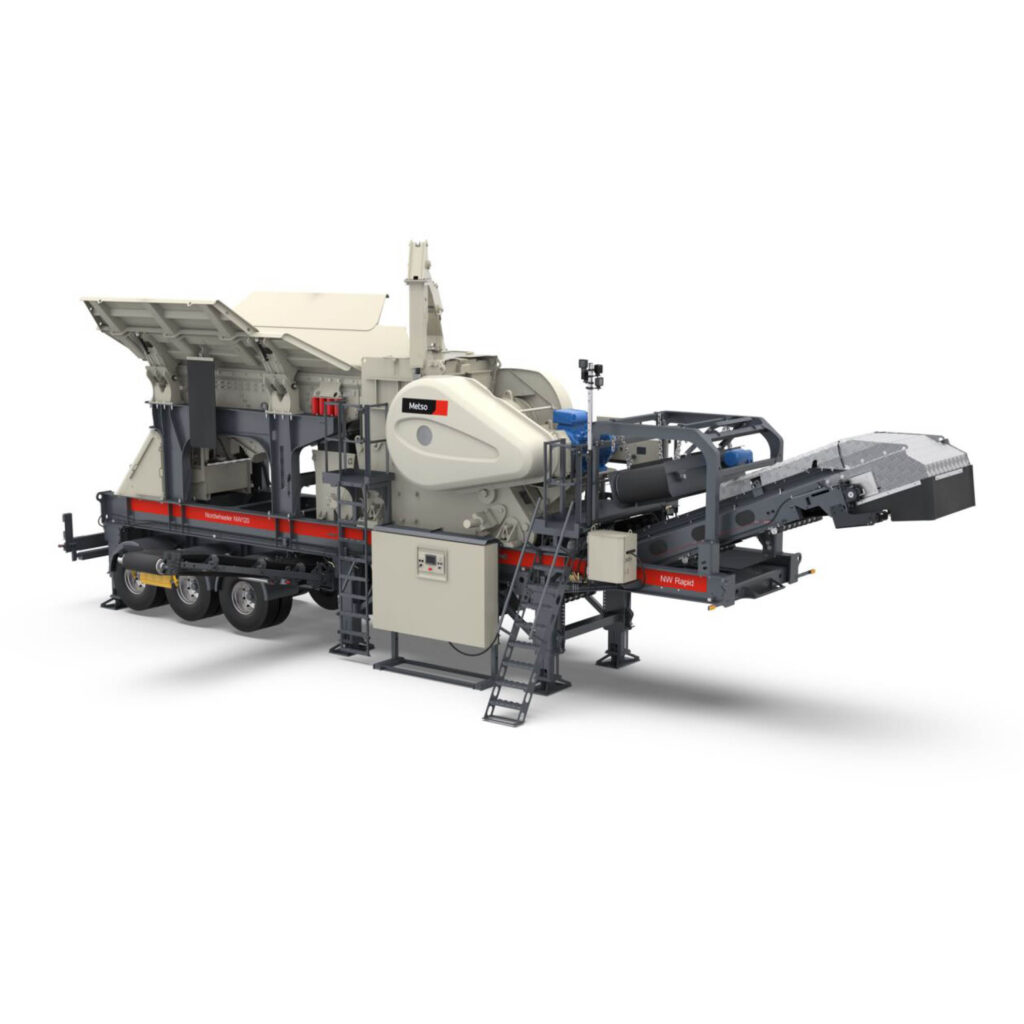

Nordwheeler NW120 Mobile Jaw Crusher

Feed Opening

1,200 x 870 mm

Motor Power

160 kW

Transport Weight

52,500 kg

Heavy-duty portable jaw crusher with high capacity and efficiency, powered by the robust NordbergÂ® C120â„¢ jaw. Suitable for large-scale crushing projects.

52T Jaw Plant Built for Heavy-Duty Primary Crushing

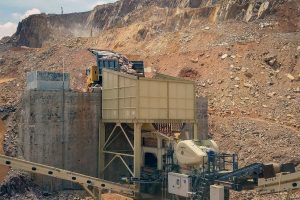

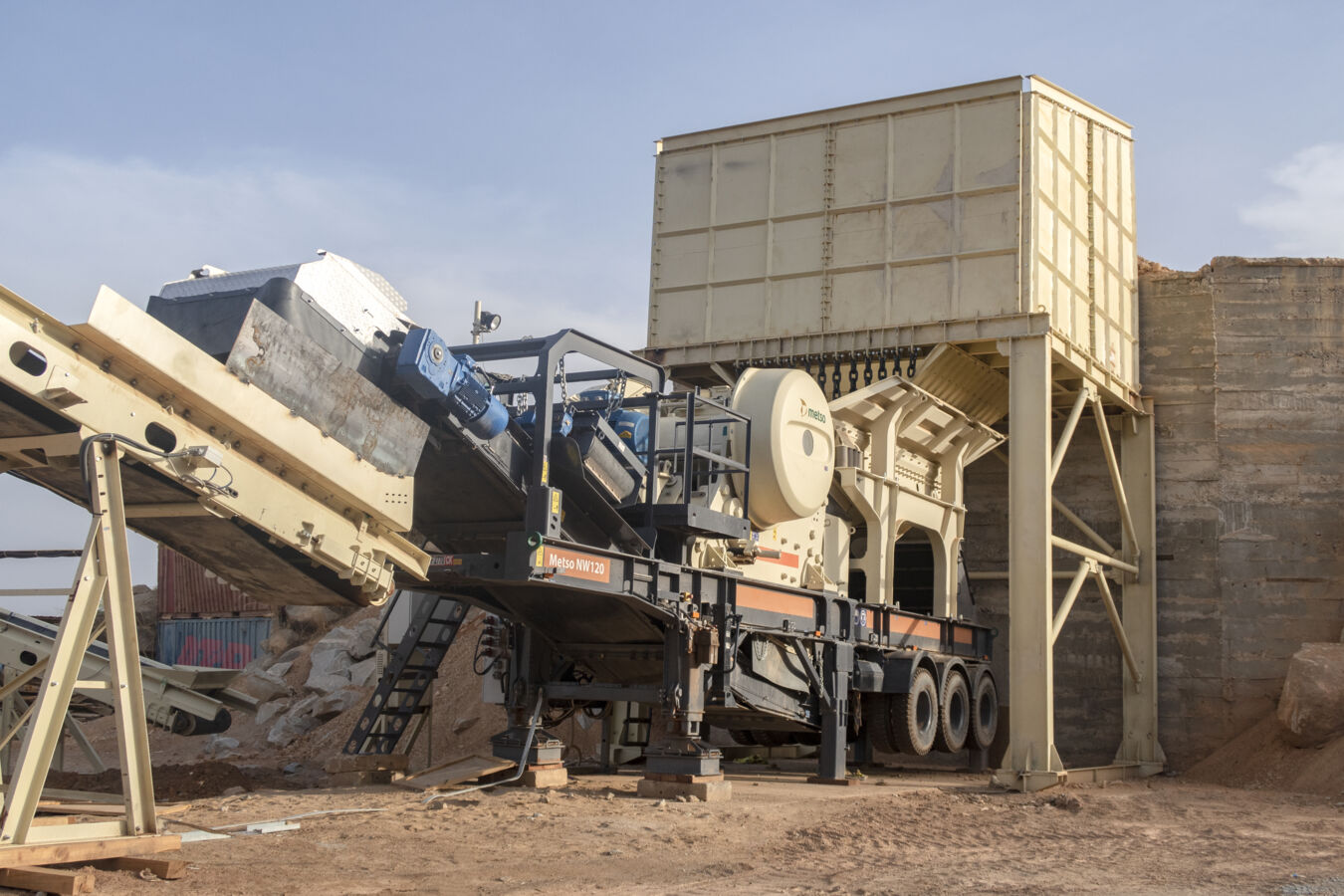

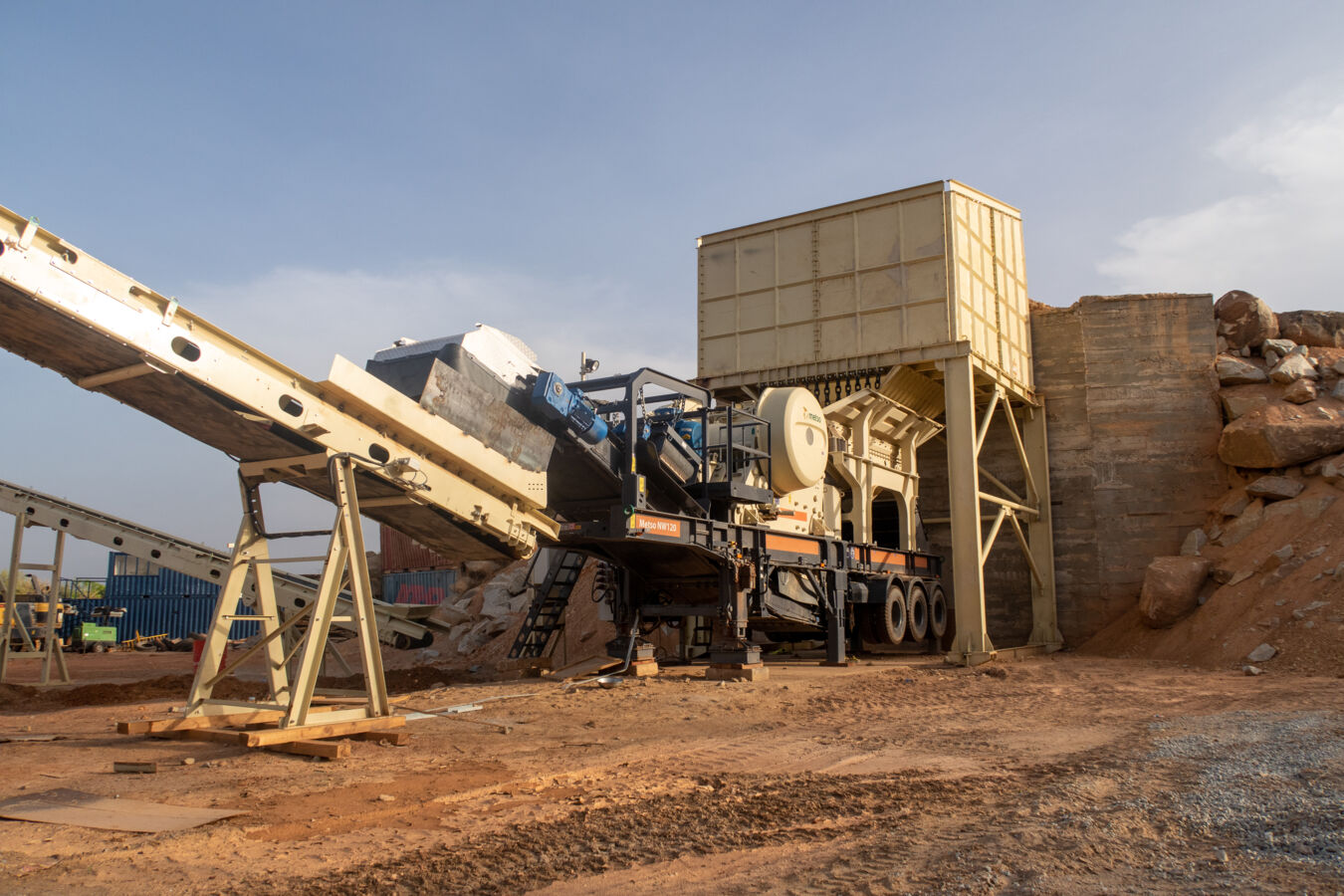

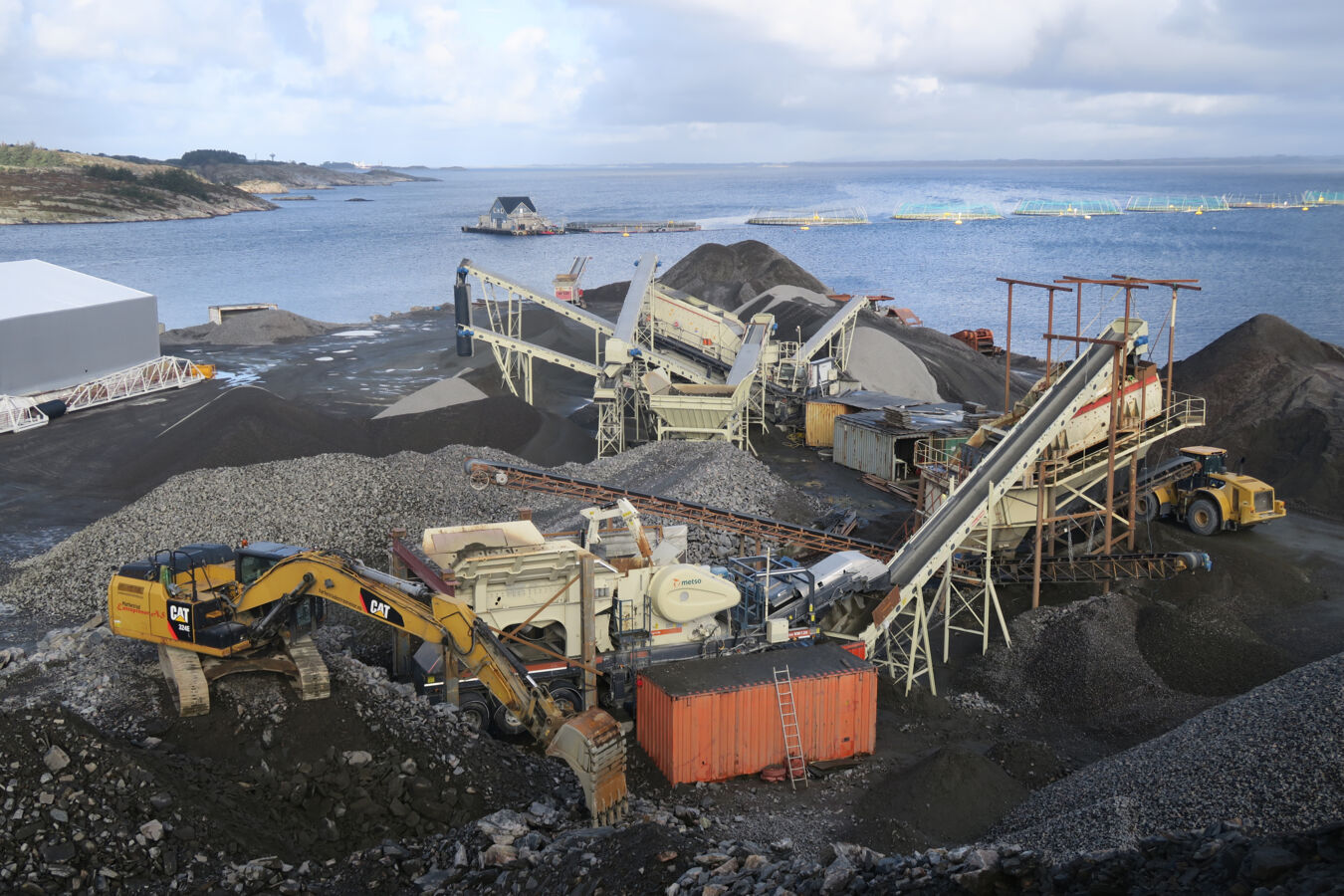

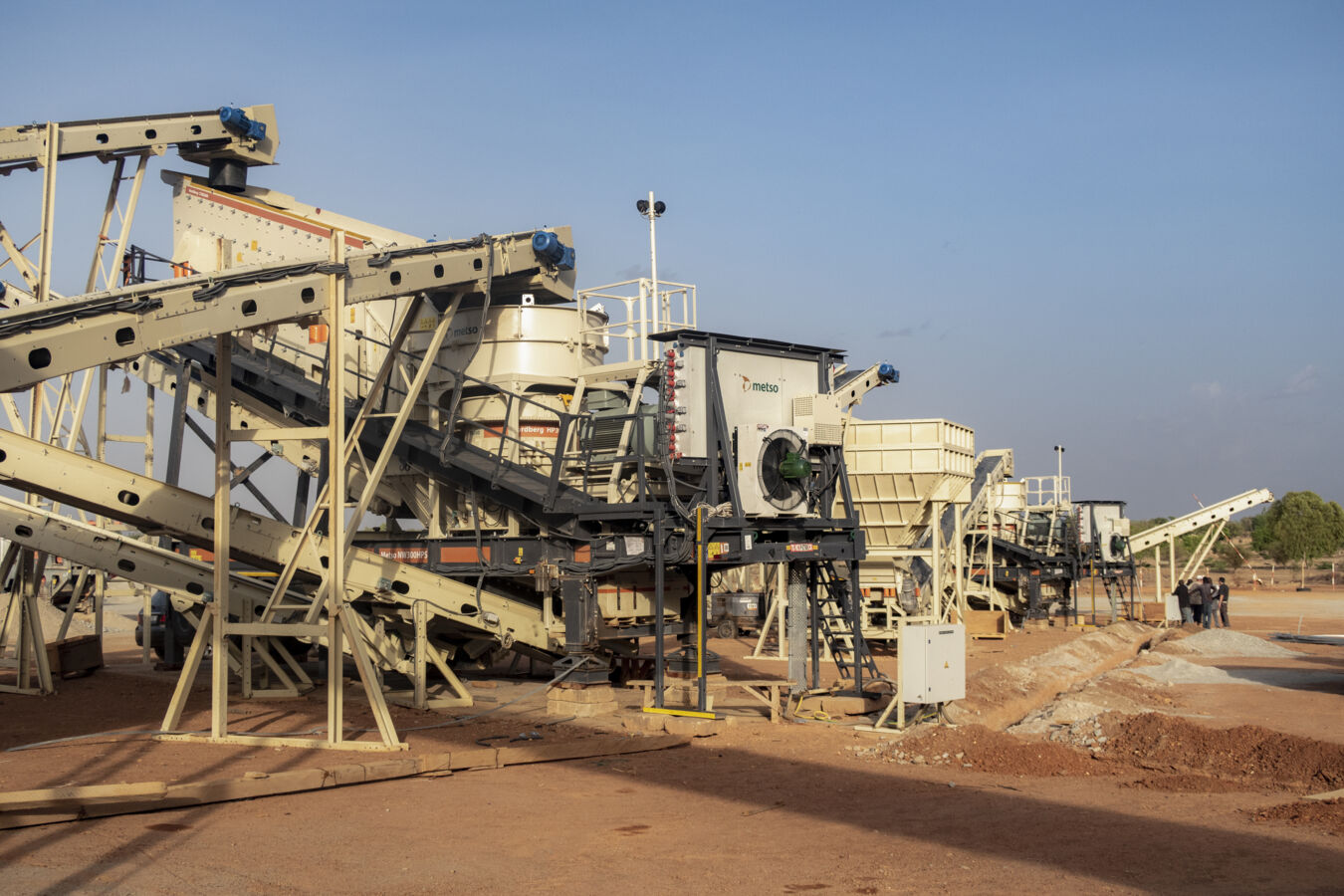

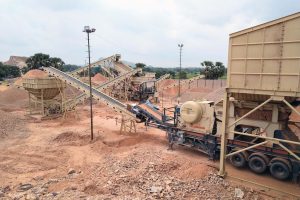

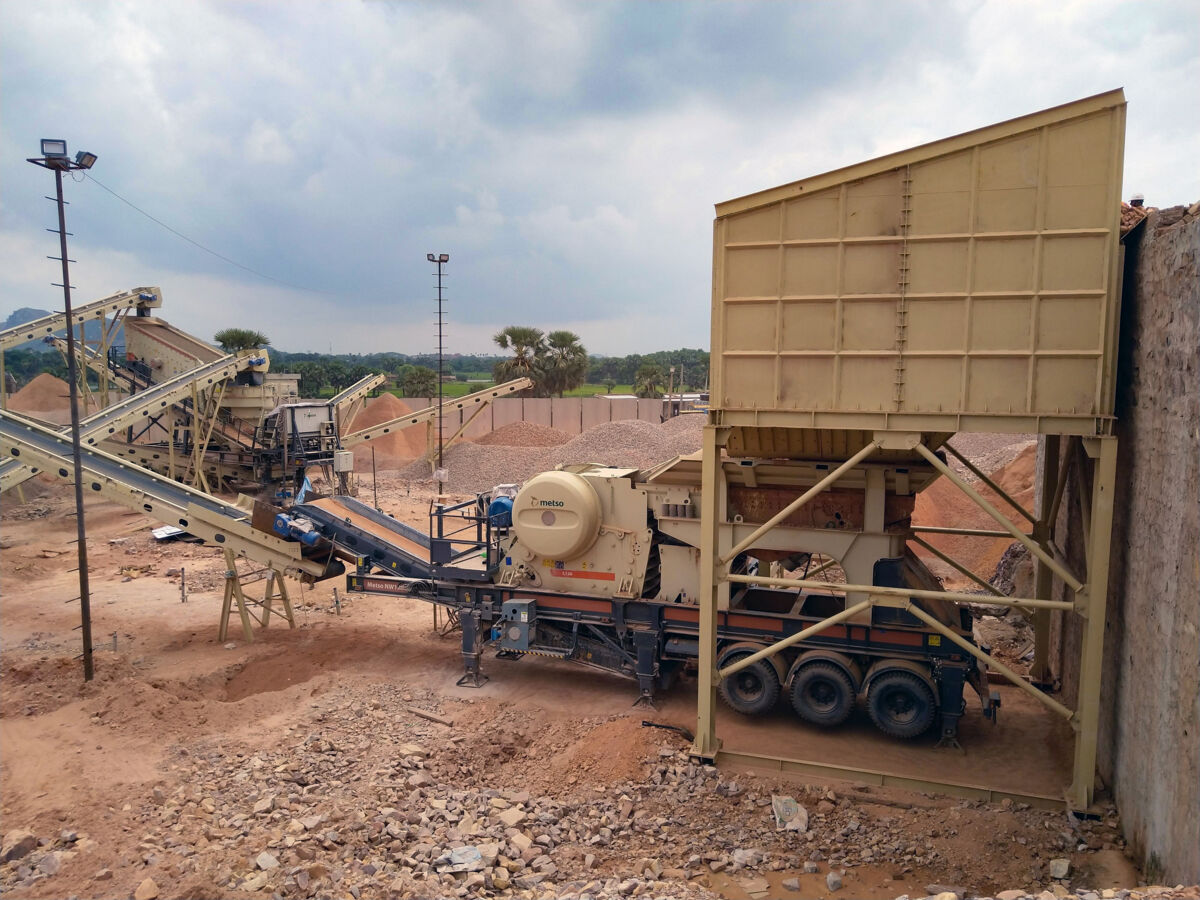

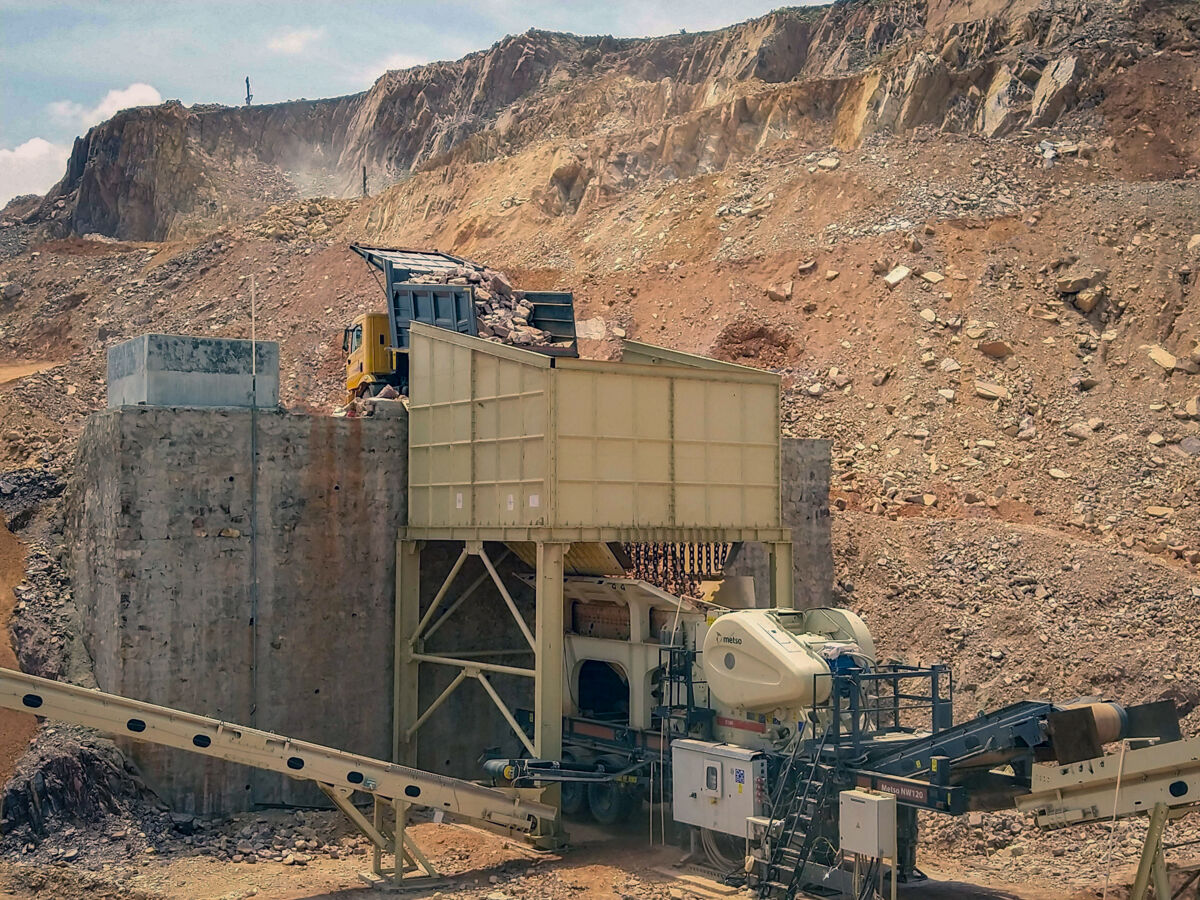

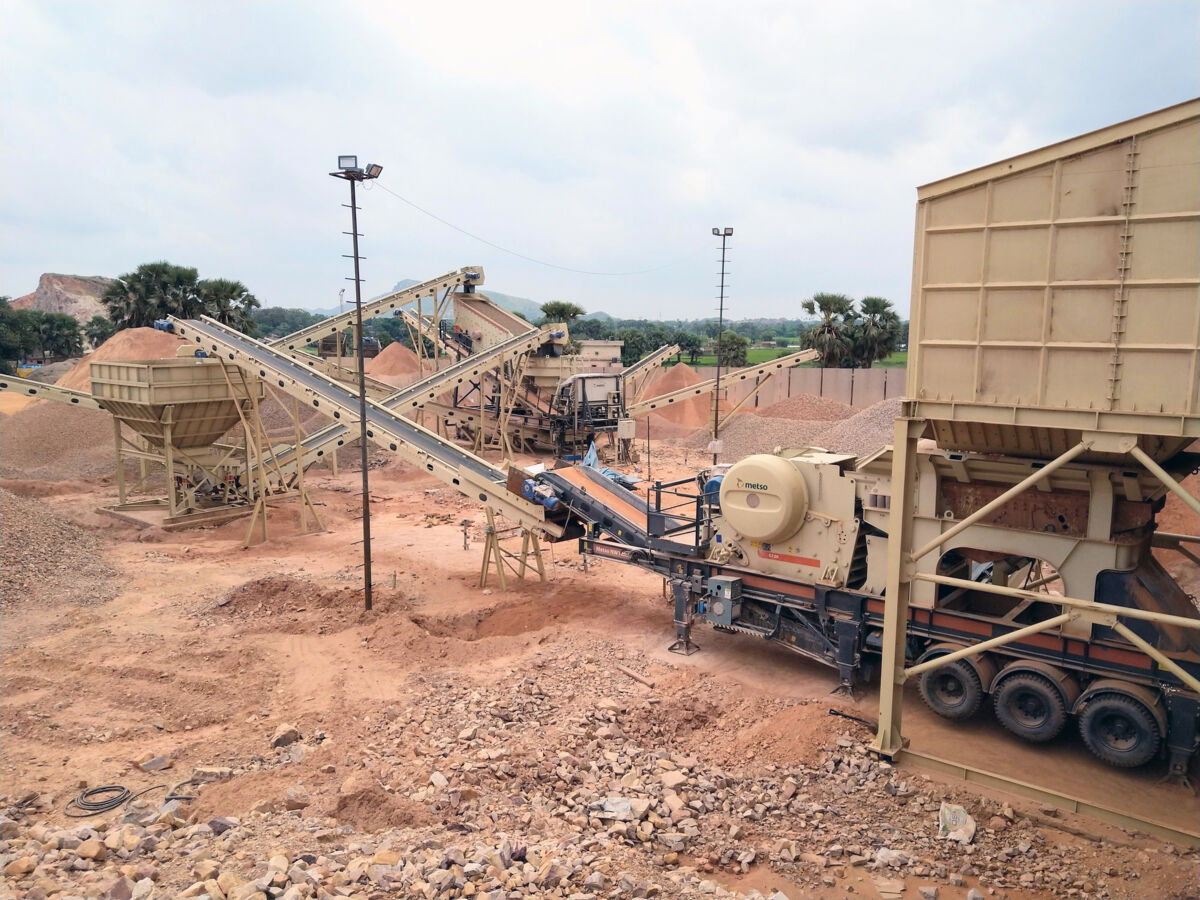

The NW120 is a high-capacity portable jaw crusher built around the NordbergÂ® C120â„¢ unit. Its 1,200 x 870 mm feed opening handles large material, while a powerful 160 kW electric motor ensures efficient primary crushing. Built for transportability, it includes a heavy-duty chassis, optional hydraulic legs, and onboard Metso ICâ„¢ automation. Ideal for infrastructure, quarrying, and contract crushing operations.

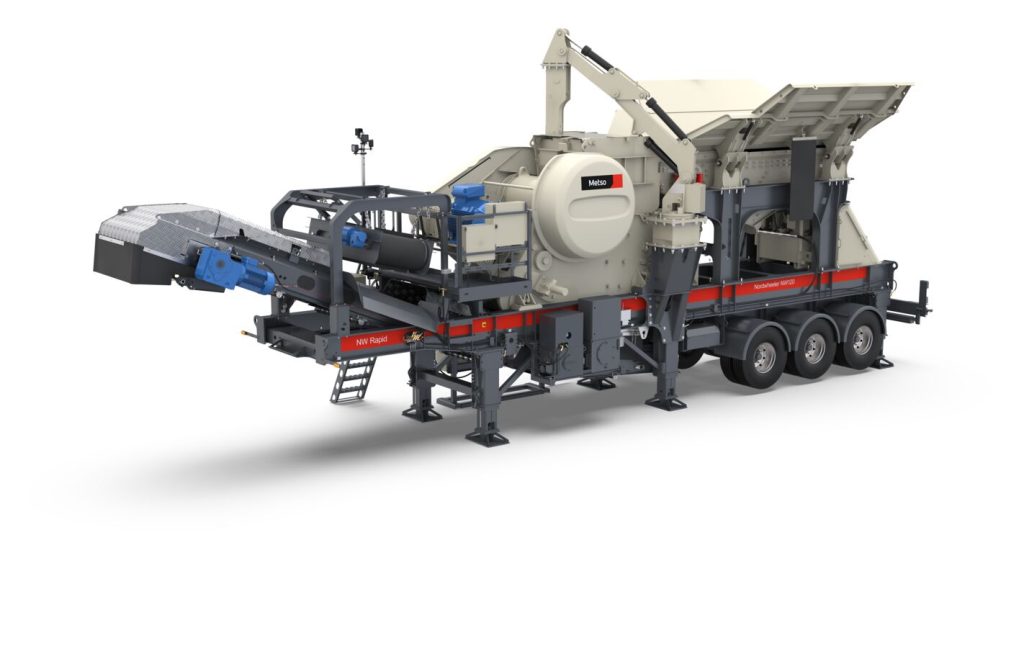

Nordwheeler NW120 Mobile Jaw Crusher Specifications

Jaw Model	Nordberg C120
Feed Opening (mm)	1200 x 870
CSS Range (mm)	70â€“200
Motor Power (kW)	160
Feeder Model	TKF 12-48-2V
Feeder Length (mm)	4800
Feeder Width (mm)	1200
Transport Length (mm)	13983
Transport Width (mm)	3054 / 3033
Transport Height (mm)	3917 / 4380
Transport Weight (kg)	52500 / 51000
Bogie Weight (kg)	31000 / 30000

Warranty: MIMICO offers warranty on all material processing equipment, with dynamic options to suit your needs. We also have servicing packages to keep your plants running smoothly. Get in touch with our sales support team to find the right solution for you.

Jaw Unit

NordbergÂ® C120â„¢ electric jaw for high-capacity crushing

Feeder System

TKF 12-48-2V vibrating feeder for controlled material feed

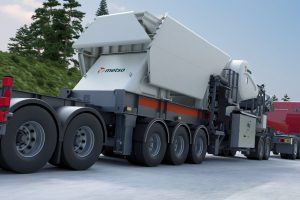

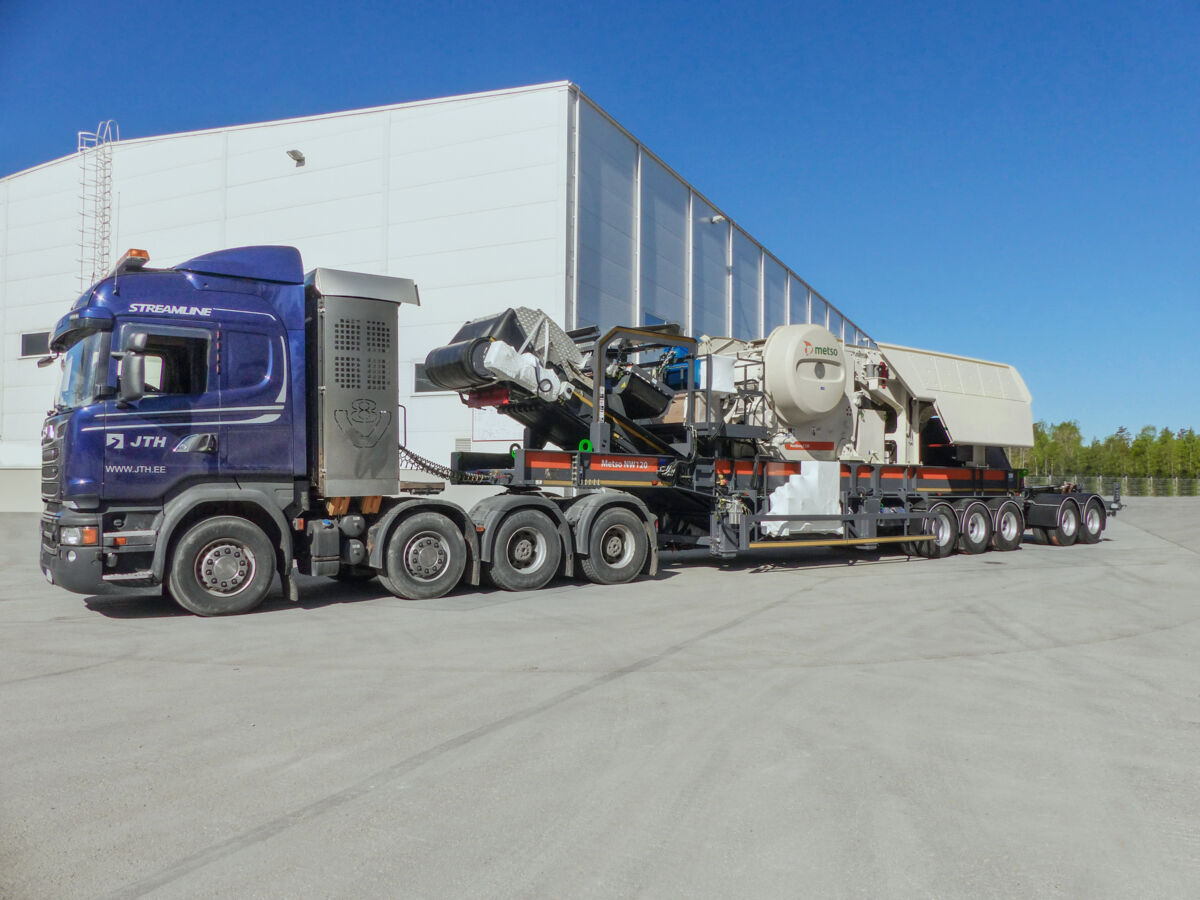

Transport Setup

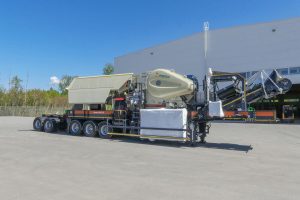

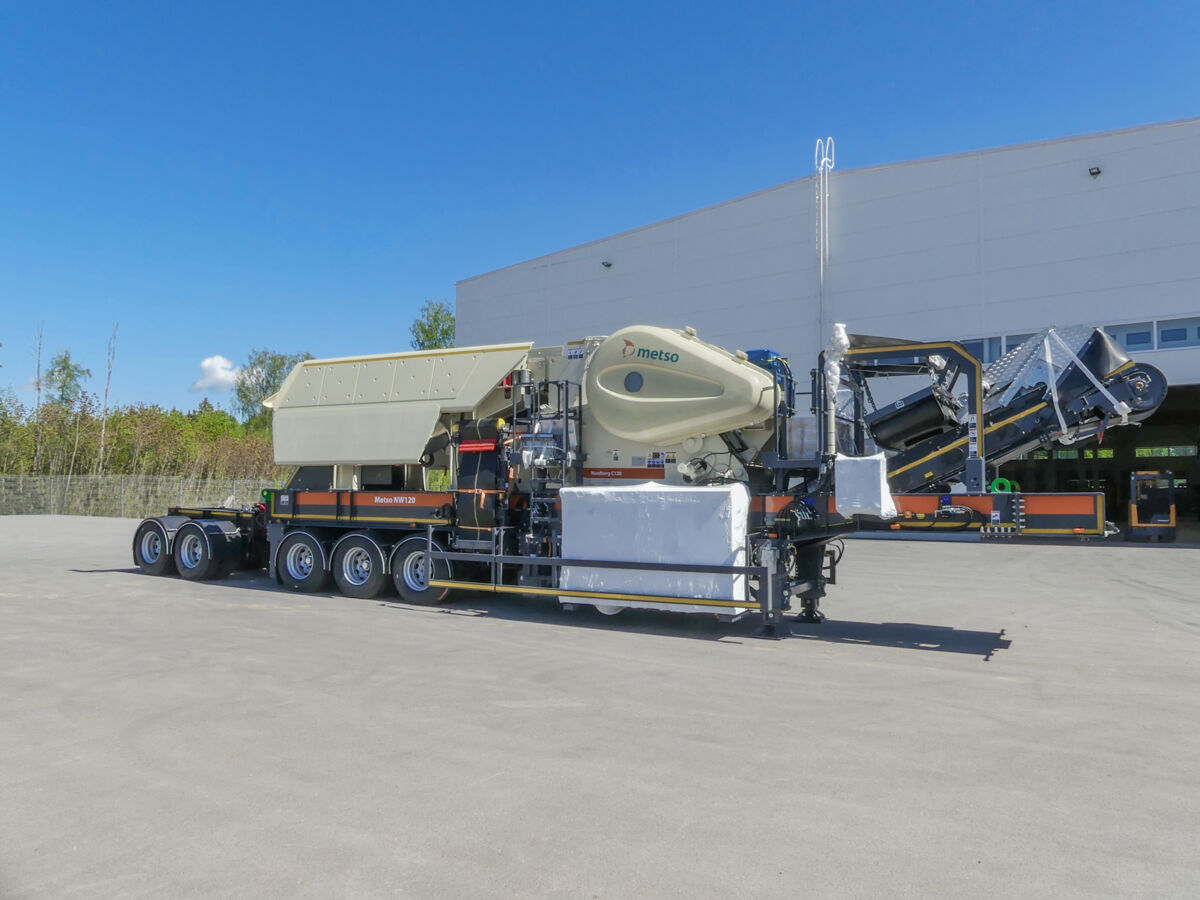

3-axle bogie configuration for easy mobility

Feed Opening

1,200 x 870 mm to handle large and abrasive material

Automation

Metso ICâ„¢ process control for optimised operation

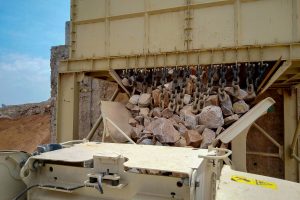

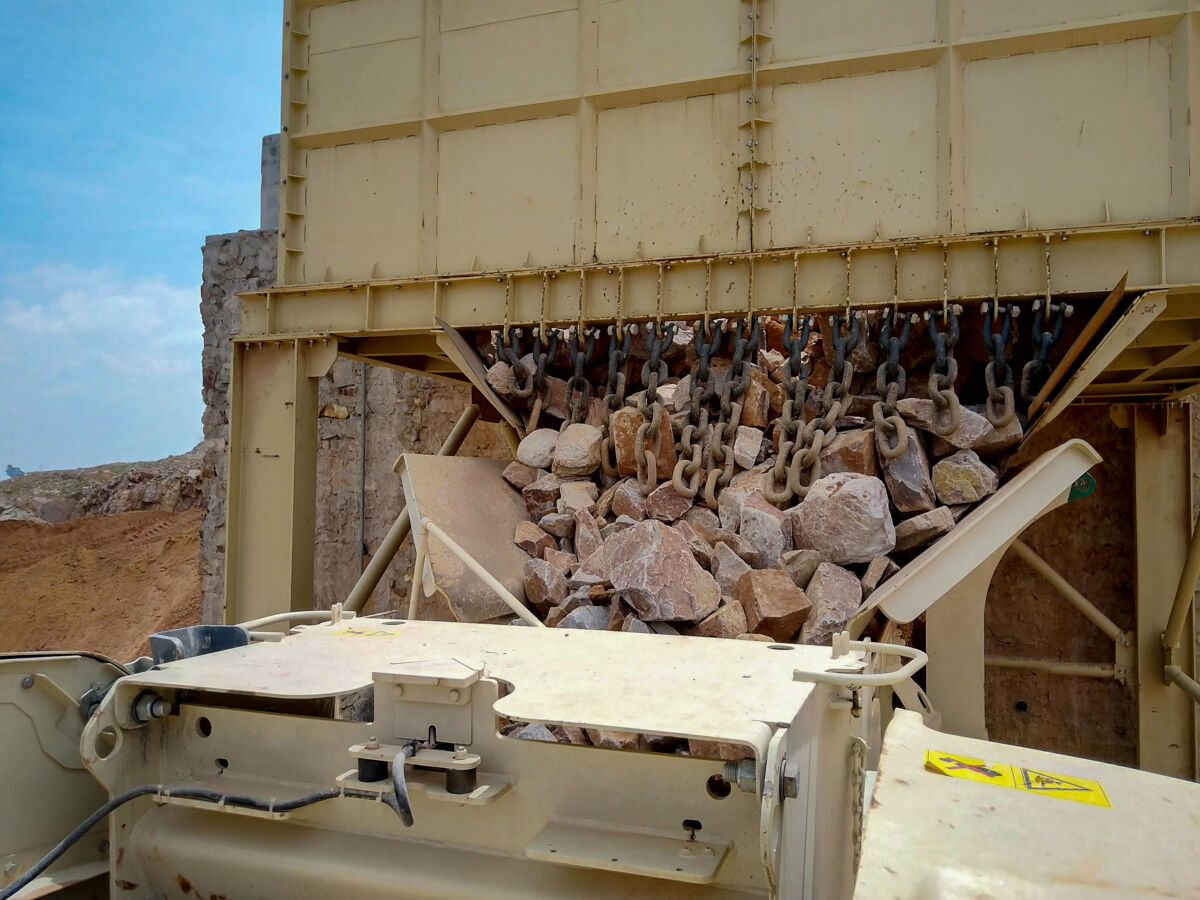

Hopper Design

Fixed or foldable options to suit varied site conditions

Our team is working on new customer success stories! Check back soon for real-world insights on this product.
