Heavy Wheel Loader CASE 1021G Front-End Wheel Loader mimico nz

Heavy Wheel Loader

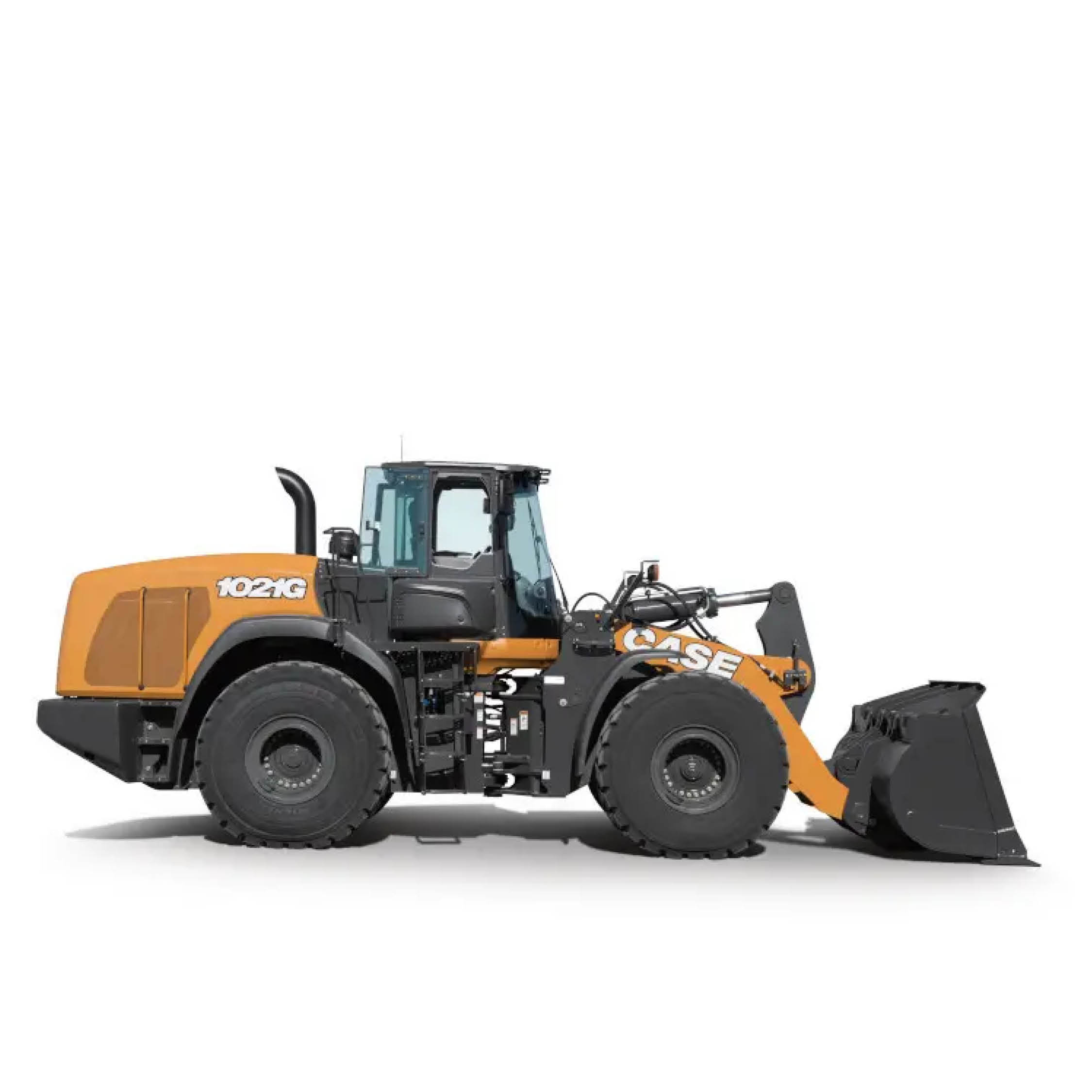

CASE 1021G Front-End Wheel Loader

Operating Weight

25,271 kgs

Engine Power

320 hp / 239 kW

Bucket Capacity

4.4 m³
A powerhouse for quarrying, bulk material transport, and high-capacity earthmoving, the CASE 1021G delivers 320 hp of raw power and a 4.4m³ bucket. Featuring extended service intervals, optimised fuel economy, and an intuitive touchscreen interface, it ensures peak performance and reduced downtime on the toughest job sites.

High-Capacity. Unmatched Productivity.

The CASE 1021G is a true workhorse, engineered for bulk material handling and quarry operations. Delivering 320 hp and a 4.4m³ bucket, it’s built for maximum payload and fast cycle times. The proprietary Hi-eSCR2 engine technology ensures low emissions and reduced fuel consumption. Operators benefit from a seat-mounted joystick, touchscreen display, and customisable settings, enhancing precision and comfort. Its automatic differential lock improves traction, while the extended maintenance intervals minimise downtime. Whether handling heavy aggregates or large-scale earthmoving, the 1021G thrives in New Zealand’s toughest job sites.

CASE 1021G Front-End Wheel Loader Specifications

Operating Weight25,271 kg
Engine Power320 hp / 239 kW
Bucket Capacity4.4 m³
Breakout Force18,707 daN
Hydraulic Flow (Standard)348 lpm @ 2000 rpm
Max Travel Speed38 km/h
Tipping Load (Full Turn)17,541 kg
Dump Height @ 45°2.94 m
Hinge Pin Height4.24 m
Turning Radius6.36 m
Fuel Tank Capacity459 L

Warranty: 18 months / 2,000 hours or Extended Up to 5 years / 10,000 hours

High-Capacity Bulk Handling

With a 4.4m³ bucket, the 1021G is perfect for moving large volumes of aggregates and bulk material.

Extended Service Intervals

With engine service intervals extended to 1000 hours, the 1021G reduces downtime and lowers maintenance costs.

Remote Monitoring Capabilities

SiteWatch telematics allow remote tracking of fuel consumption, operating hours, and diagnostics.

High-Flow Hydraulics

Optional high-flow 240 lpm hydraulic package enhances performance for demanding attachments.

Heavy-Duty Frame

Designed with reinforced chassis and structural elements to withstand extreme workloads.

Durable Powertrain

ZF transmission with intelligent clutch cut-off enhances durability and power transfer.
